Ubiquiti · Wireless Access Points

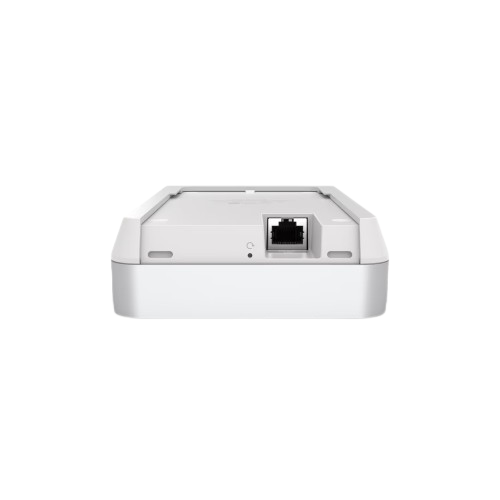

Ubiquiti U7-PRO-WALL WiFi 7 Access Point 6GHz 2.5GbE PoE+
- EhubAmerica SKU
- U7-PRO-WALL
- PoE+
$217.28
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
The U7-Pro-Wall is a comprehensive solution for high-speed, reliable WiFi coverage, perfectly suited for modern smart homes, ensuring robust performance and connectivity.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
- WiFi 7 Support: Equipped with the latest WiFi 7 technology, including 6 GHz support, ensuring the fastest and most reliable connections.
- High Coverage and Capacity: Provides up to 140 m² (1,500 ft²) coverage and supports over 300 connected devices simultaneously.
- High-Speed Connectivity: Features a 2.5 GbE uplink for ultra-fast data transfer rates.
- PoE+ Powered: Simplifies installation with PoE+ power delivery, eliminating the need for additional power cables.
- Versatile Deployment: Can be mounted on walls or used with optional flush mount and table stand accessories (sold separately).
- Advanced Features: Future-ready with Multi-Link Operation (MLO) capability via a software update.
- Ideal for residential settings, particularly in smart homes requiring high-speed, reliable WiFi coverage across multiple devices and large areas.
- 150 x 103 x 36 mm (5.9 x 4.1 x 1.4')
- 580 g (1.3 lb)
- US version U7-PRO-WALL-US
- POE U-POE-at
- Mechanical: Enclosure Material: Polycarbonate, aluminum
- Mount Material: Aluminum
- Hardware: Networking Interface: (1) 1/2.5 GbE RJ45 port
- Management Interface: Ethernet
- Power Method: PoE+
- Power Supply: UniFi PoE switch
- Supported Voltage Range: 44—57V DC
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: U7-PRO-WALL
- Product Type: Wireless Access Points
- WiFi 7 Support: Equipped with the latest WiFi 7 technology, including 6 GHz support, ensuring the fastest and most reliable connections.
- High Coverage and Capacity: Provides up to 140 m² (1,500 ft²) coverage and supports over 300 connected devices simultaneously.
- High-Speed Connectivity: Features a 2.5 GbE uplink for ultra-fast data transfer rates.
- PoE+ Powered: Simplifies installation with PoE+ power delivery, eliminating the need for additional power cables.
- Versatile Deployment: Can be mounted on walls or used with optional flush mount and table stand accessories (sold separately).
- Advanced Features: Future-ready with Multi-Link Operation (MLO) capability via a software update.
- Ideal for residential settings, particularly in smart homes requiring high-speed, reliable WiFi coverage across multiple devices and large areas.
- 150 x 103 x 36 mm (5.9 x 4.1 x 1.4')
- 580 g (1.3 lb)
- US version U7-PRO-WALL-US
- POE U-POE-at
- Mechanical: Enclosure Material: Polycarbonate, aluminum
- Mount Material: Aluminum
- Hardware: Networking Interface: (1) 1/2.5 GbE RJ45 port
- Management Interface: Ethernet
- Power Method: PoE+
- Power Supply: UniFi PoE switch
- Supported Voltage Range: 44—57V DC
- Max. Power Consumption: 22W
- Max. TX Power: 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- 6 GHz: 23 dBm
- MIMO: 2.4 GHz: 2 x 2
- 5 GHz: 2 x 2
- 6 GHz: 2 x 2
- Throughput Rate: 2.4 GHz: 688 Mbps
- 5 GHz: 4324 Mbps
- 6 GHz: 5764 Mbps
- Antenna Gain: 2.4 GHz: 4 dBi
INTENDED USE / APPLICATIONS
- Outdoor or indoor wireless networking, as specified
- Point-to-point or point-to-multipoint deployments where compatible
- Professional network installations
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | U7-Pro-Wall |
| Product Type | Wall-mounted WiFi 7 Access Point |
| Concurrent Clients | 300+ |
| Coverage Area | 140 m² (1,500 ft²) |
| Physical | |
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4 in) |
| Weight | 580 g (1.3 lb) |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| Mounting Options | Wall (included), Table stand, Flush mount (optional) |
| Power & Electrical | |
| Power Method | PoE+ |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 22W |
| Wireless / RF | |
| WiFi Standard | WiFi 7 |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Spatial Streams | 6 |
| 2.4 GHz | 2 x 2 |
| 5 GHz | 2 x 2 |
| 6 GHz | 2 x 2 |
| 2.4 GHz | 22 dBm |
| 5 GHz | 26 dBm |
| 6 GHz | 23 dBm |
| 2.4 GHz | 4 dBi |
| 5 GHz | 5 dBi |
| 6 GHz | 6 dBi |
| 2.4 GHz | 688 Mbps |
| 5 GHz | 4324 Mbps |
| 6 GHz | 5764 Mbps |
| Networking & Connectivity | |
| Network Interface | (1) 1/2.5 GbE RJ45 port |
| Management Interface | Ethernet |
| Compatibility | |
| Compatible Models | U7-PRO-WALL-US |
| Compatible PoE Supply | U-POE-at |
