Ubiquiti · Wireless Access Points

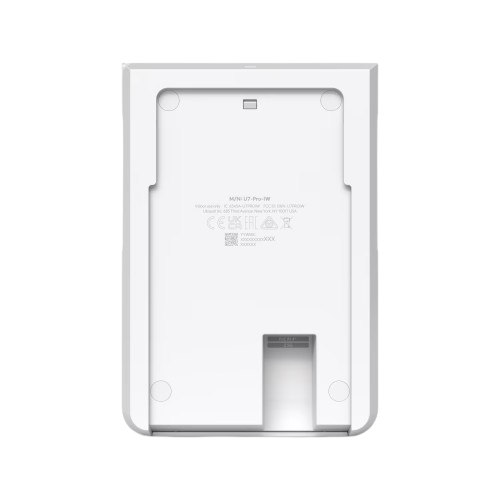

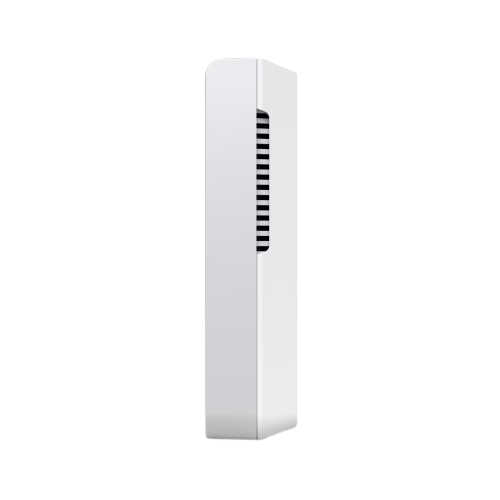

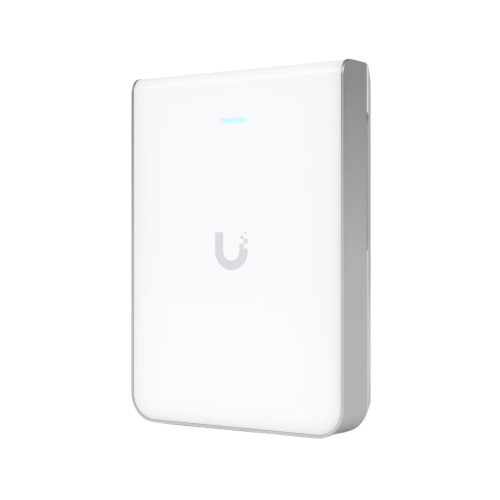

Ubiquiti U7-PRO-WALL-US WiFi 7 Wall Access Point 6GHz 2.5GbE PoE+
- EhubAmerica SKU
- U7-PRO-WALL-US
- PoE+
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti wall-mounted WiFi 7 access point with 6 GHz support, six spatial streams, 2.5 GbE uplink, PoE+ power, coverage up to 140 m² (1,500 ft²), and support for 300+ clients.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• WiFi 7 with 2.4 GHz, 5 GHz, and 6 GHz operation
• Six spatial streams
• Coverage area up to 140 m² (1,500 ft²)
• Supports 300+ connected clients
• (1) 1/2.5 GbE RJ45 networking interface
• PoE+ powered
• 2x2 DL/UL MU-MIMO on 2.4 GHz, 5 GHz, and 6 GHz
• Up to 5.7 Gbps data rate on 6 GHz
• Wall-mounted installation
• Wireless meshing and band steering
• 802.11r fast roaming
• Multi-Link Operation capability via software update
• Optional flush mount and table stand accessories sold separately
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Part Number: U7-PRO-WALL-US
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Maximum Client Count: 300+

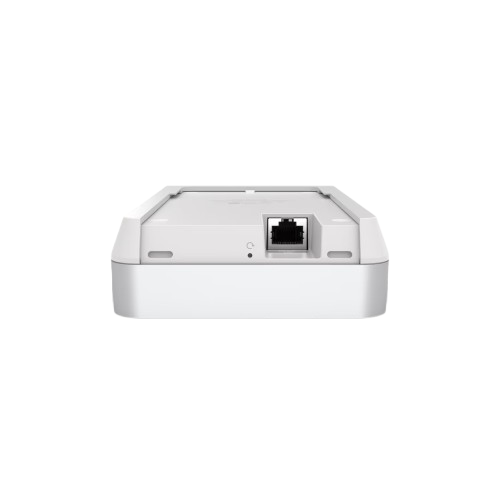

• Networking Interface: (1) 1/2.5 GbE RJ45
• Power Method: PoE+
• Supported Voltage Range: 44–57V DC
• Maximum Power Consumption: 22 W
• Mounting Location: Wall

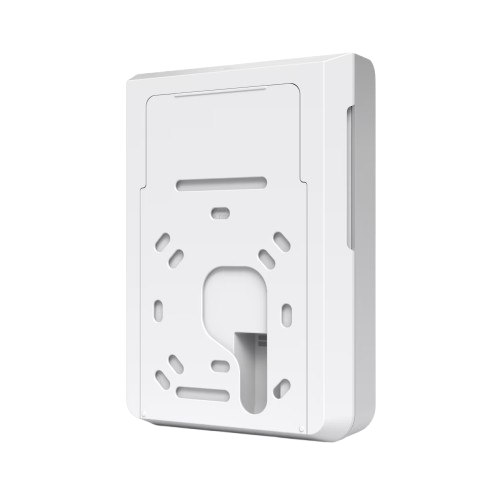

• Mounting Plate: Included mount
• Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
• Weight: 580 g (1.3 lb)
• Enclosure Material: Polycarbonate, aluminum
• Mount Material: Aluminum
• Management: Ethernet
• 6 GHz MIMO: 2x2 DL/UL MU-MIMO
• 5 GHz MIMO: 2x2 DL/UL MU-MIMO
• 2.4 GHz MIMO: 2x2 DL/UL MU-MIMO
• Maximum 6 GHz Data Rate: 5.7 Gbps (BW320)
• Maximum 5 GHz Data Rate: 4.3 Gbps (BW240)
• Maximum 2.4 GHz Data Rate: 688 Mbps (BW40)
• 6 GHz Antenna Gain: 6 dBi
• 5 GHz Antenna Gain: 5 dBi
• 2.4 GHz Antenna Gain: 4 dBi
• Maximum 6 GHz TX Power: 23 dBm
• Maximum 5 GHz TX Power: 26 dBm
• Maximum 2.4 GHz TX Power: 22 dBm
• Maximum BSSIDs: 8 per Radio
• Supported WiFi Standards: 802.11be, 802.11ax, 802.11ac, 802.11n
• Wireless Meshing: Supported
• Band Steering: Supported
• 802.11v BSS Transition Management: Supported
• 802.11r Fast Roaming: Supported
• 802.11k Radio Resource Management: Supported
• Passpoint (Hotspot 2.0): Supported
• Private Pre-Shared Key (PPSK): Supported
• RADIUS over TLS (RadSec): Supported
INTENDED USE / APPLICATIONS
• Residential wireless networking
• Smart home environments requiring high-speed WiFi coverage across multiple connected devices
Specifications
Technical specifications
| General | |
|---|---|
| Product Name | U7-Pro-Wall - Wall-mounted WiFi 7 Access Point |
| Brand | Ubiquiti |
| SKU | U7-PRO-WALL-US |
| WiFi Standard | WiFi 7 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Spatial Streams | 6 |
| Physical | |
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4 in) |
| Weight | 580 g (1.3 lb) |
| Mounting Locations | Wall |
| Mounting Plate | Included mount |
| Power & Electrical | |
| Power Method | PoE+ |
| Wireless / RF | |
| 6 GHz MIMO | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz Max. Data Rate | 5.7 Gbps (BW320) |
| 6 GHz Antenna Gain | 6 dBi |
| 6 GHz Max. TX Power | 23 dBm |
| 5 GHz MIMO | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz Max. Data Rate | 4.3 Gbps (BW240) |
| 5 GHz Antenna Gain | 5 dBi |
| 5 GHz Max. TX Power | 26 dBm |
| 2.4 GHz MIMO | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz Max. Data Rate | 688 Mbps (BW40) |
| 2.4 GHz Antenna Gain | 4 dBi |
| 2.4 GHz Max. TX Power | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Networking & Connectivity | |
| Uplink | 2.5 GbE |
| Compatibility | |
| Compatible Models | U7-PRO-WALL, U-POE-at |
