Ubiquiti UA-G3-B G3 Access Reader NFC Mobile Unlock IP55 PoE
- EhubAmerica SKU
- UA-G3-B
- PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
$167.09
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

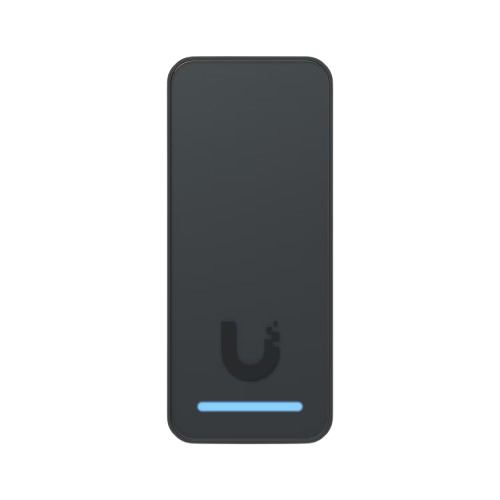

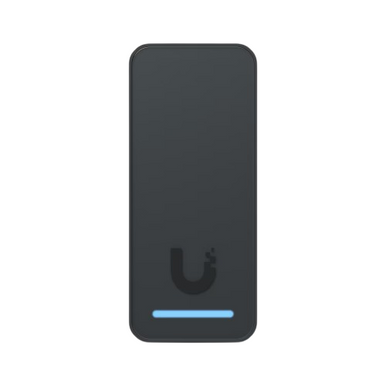

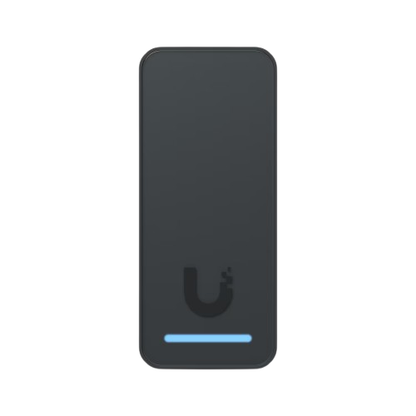

Compact third-generation access reader with Touch Pass support.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
- Unlock with an NFC card, UniFi Identity mobile app, or Touch Pass*
- Supports hand-wave unlocking as a request-to-exit device
- Provides entry and exit greeting messages
- IP55-rated weather resistance (-30 to 45°C)
- Connects to UniFi Access Hub via PoE
- Technical Specification
- Overview: Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4')
- NFC Card & Keyfob Access: ✓
- Apple/Google Wallet: ✓
- Mobile Unlock: ✓
- Handwave Request to Exit: ✓
- NDAA Compliant: ✓
- UL 294 Level: Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
- Weatherproofing: IP55
- Mechanical: Weight: 82 g (2.9 oz)
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: UA-G3-B
- Product Type: Networking Accessories
- Unlock with an NFC card, UniFi Identity mobile app, or Touch Pass*
- Supports hand-wave unlocking as a request-to-exit device
- Provides entry and exit greeting messages
- IP55-rated weather resistance (-30 to 45°C)
- Connects to UniFi Access Hub via PoE
- Overview: Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4')
- NFC Card & Keyfob Access: ✓
- Apple/Google Wallet: ✓
- Mobile Unlock: ✓
- Handwave Request to Exit: ✓
- NDAA Compliant: ✓
- UL 294 Level: Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
- Weatherproofing: IP55
- Mechanical: Weight: 82 g (2.9 oz)
- Enclosure Material: Polycarbonate, glass
- Mount Material: Aluminum alloy

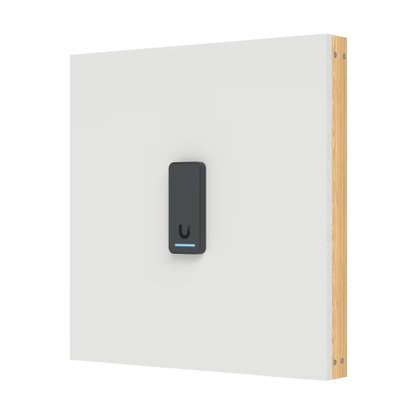

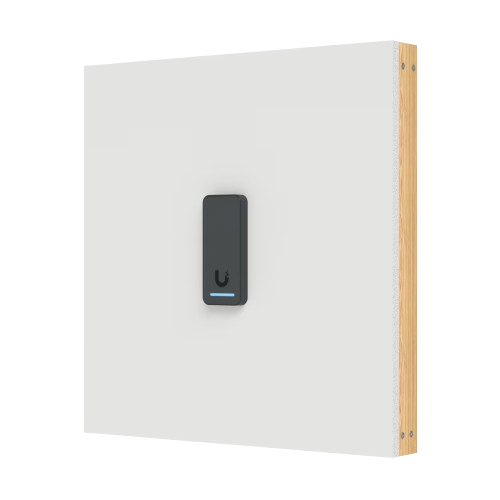

- Mounting In-wall, gang box (Included)
- Junction box (Optional)
- Hardware: Indoor and Outdoor Use: Yes
- Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Networking Interface: (1) 10/100 MbE RJ45 port
- Connectivity: BLE 4.1
- NFC
- Power Method: PoE
- UL 294 Power-limited Class 2 PSU
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | UA-G3-B |
| Product Name | G3 Access Reader NFC & Mobile Unlock |
| NDAA Compliant | Yes |
| Physical | |
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting Options | In-wall, gang box (included); Junction box (optional) |
| Indoor/Outdoor Use | Yes |
| Power & Electrical | |
| Power Method | PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported Voltage | 48V DC |
| Max. Power Consumption | 5W |
| ESD/EMP Protection | Air ±15kV, contact ±8kV |
| Wireless / RF | |
| BLE | 4.1 |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A / 14443B / 156 |
| Networking & Connectivity | |

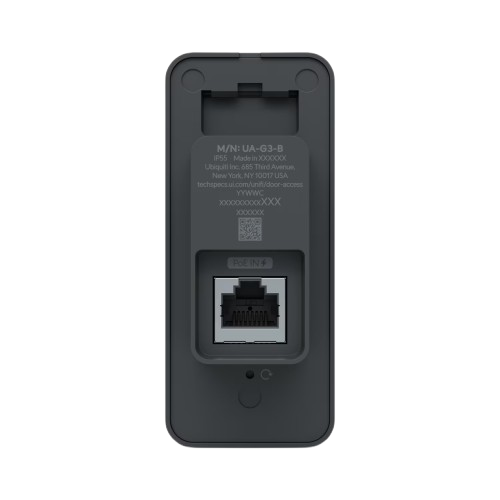

| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Environmental | |
| Weatherproofing | IP55 |
| Ambient Operating Temperature | -30 to 45°C (-22 to 113°F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Compatibility | |
| Access Control Systems | UniFi Access Hub |
| Mobile Access | UniFi Identity mobile app, Apple/Google Wallet |
| Access Methods | NFC card, keyfob, mobile unlock, hand-wave request-to-exit |
| In the Box | |
| Included | Gang box mounting bracket |
| Optional | Junction box |
