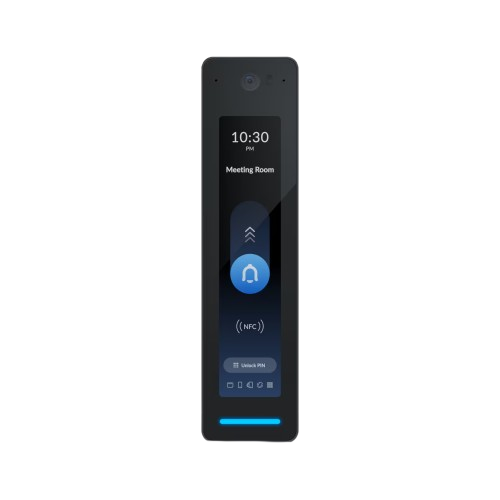

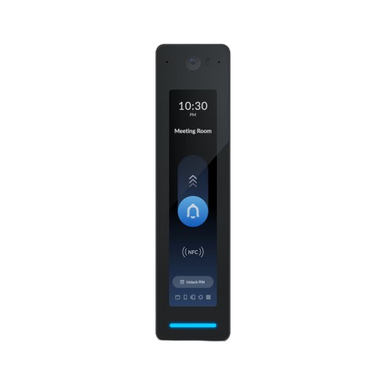

Ubiquiti UA-G3-Pro-B G3 Reader Pro IP55 NFC Access Control Intercom
- EhubAmerica SKU
- UA-G3-Pro-B
- PoE
$401.01
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Third-generation, indoor/outdoor NFC reader and intercom with Apple Touch Pass support.*
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
- Microphones
- Face unlock camera
- Unlock with the NFC card, PIN, UniFi Identity monile app and Touch Pass
- Status LED
- Proximity sensor
- 4.7' touchscreen
- Two-way audio doorbell
- Flash light
- Wall-Mount and gangbox mount
- Speaker
- Weatherproof IP55 rated
- Technical Specification:
- Overview: Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6')
- Integrated Camera
- NFC Card & Keyfob Access
- PIN Access
- Touch Pass
- Mobile Unlock
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: UA-G3-Pro-B
- Product Type: Security Cameras
- Microphones
- Face unlock camera
- Unlock with the NFC card, PIN, UniFi Identity monile app and Touch Pass
- Status LED
- Proximity sensor
- 4.7' touchscreen
- Two-way audio doorbell
- Flash light
- Wall-Mount and gangbox mount
- Speaker
- Weatherproof IP55 rated
- Overview: Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6')
- Integrated Camera
- NFC Card & Keyfob Access
- PIN Access
- Touch Pass
- Mobile Unlock
- Two-Way Intercom & Doorbell Access
- Weatherproofing
- IP55
- Mechanical: Weight: 136 g (4.8 oz)
- Enclosure Material: Polycarbonate, glass
- Mount Material: Aluminum alloy
- Mounting: Wall, gang-box mount (Included)
- Angle mount, junction box (Optional)
- Hardware: Indoor and Outdoor Use: Yes
- Ambient Operating Temperature:
- Device: -30 to 45° C (-22 to 113° F)
- Display: -10 to 45° C (14 to 113° F)
INTENDED USE / APPLICATIONS
- Video surveillance and security monitoring
- Commercial, institutional, or industrial installations
- Integration with compatible network and recording systems
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model/Part Number | UA-G3-Pro-B |
| Product Name | G3 Reader Pro |
| Application | NFC Access Control Intercom |
| IP Rating | IP55 |
| Physical | |
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting Options | Wall mount, gang-box mount (included); Angle mount, junction box (optional) |
| Indoor/Outdoor Use | Yes |
| Power & Electrical | |
| Power Method | PoE |
| Supported Voltage Range | 48V DC |
| Max. Power Consumption | 6W |
| Power Supply Standards | UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU |
| ESD/EMP Protection (Air) | ±15kV |
| ESD/EMP Protection (Contact) | ±8kV |
| Wireless / RF | |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340); MIFARE Classic / MIFARE DESFIRE; Sony FeliCa™ (ID only); NFC Forum tags T1T, T2T, T3T, T4T, T5T; ECP 2.0 |
| BLE | 4.2 |
| Camera & Imaging | |
| Integrated Camera | Yes |
| Networking & Connectivity | |
| Networking Interface | (1) Gigabit RJ45 port |
| Environmental | |
| Ambient Operating Temperature (Device) | -30 to 45°C (-22 to 113°F) |
| Ambient Operating Temperature (Display) | -10 to 45°C (14 to 113°F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Compatibility | |
| Supported Access Methods | NFC card, keyfob, PIN, UniFi Identity mobile app, Apple Touch Pass |
