Ubiquiti UA-G3-SK-Pro Door Access Control Starter Kit PoE++ 2 Readers
- EhubAmerica SKU
- UA-G3-SK-Pro
$692.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

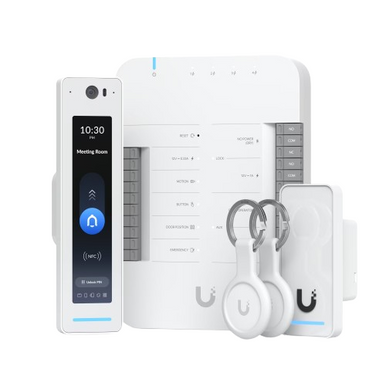

Starter kit that provides complete entry and exit control for a single door with two readers and Apple Touch Pass support.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
- PoE (out) for readers and camera
- Reset button
- 12V line output for accessories
- (4) inputs for push buttons, motion sensors, emergency alarm and door position sensors
- (2) Lock relays to support 12V-powered and dry options
- (2) AUX output relays to connect an external siren and automatic door opener
- Technical Specification:
- Overview: In the Box: (1) Door Hub
- (1) G3 Reader Pro
- (1) G3 Reader
- (2) Pocket Keyfobs
- Door Hub: Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3')
- Supported Doors: 1
- Input Terminals: (2) Door exit request
- (1) Door position
- (1) Emergency
- Power Method: PoE++
- UL 294 Power-limited Class 2 PSU
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: UA-G3-SK-Pro
- Product Type: Security Cameras
- PoE (out) for readers and camera
- Reset button
- 12V line output for accessories
- (4) inputs for push buttons, motion sensors, emergency alarm and door position sensors
- (2) Lock relays to support 12V-powered and dry options
- (2) AUX output relays to connect an external siren and automatic door opener
- Overview: In the Box: (1) Door Hub
- (1) G3 Reader Pro
- (1) G3 Reader
- (2) Pocket Keyfobs
- Door Hub: Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3')
- Supported Doors: 1
- Input Terminals: (2) Door exit request
- (1) Door position
- (1) Emergency
- Power Method: PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Weight: 363 g (12.8 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Mounting: DIN-rail (Included)
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Networking Interface: (5) 10/100/1000 Base-T
- PoE Interface: (1) PoE++ input, 50V DC, 1A
- (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
- Max. Power Consumption: 30W (Without PoE output)
- 50W (With PoE output)
INTENDED USE / APPLICATIONS
- Video surveillance and security monitoring
- Commercial, institutional, or industrial installations
- Integration with compatible network and recording systems
Specifications
Technical specifications
| Ubiquiti UA-G3-SK-Pro Door Access Control Starter Kit PoE++ 2 Readers | |
|---|---|
| General | |
| Supported Doors | 1 |
| Key Features | PoE (out) for readers and camera, Reset button, 12V line output for accessories, (4) inputs for push buttons/motion sensors/emergency alarm/door position sensors, (2) Lock relays (12V-powered and dry options), (2) AUX output relays |
| Physical | |
| Door Hub Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
| Door Hub Weight | 363 g (12.8 oz) |
| Door Hub Enclosure Material | Polycarbonate |
| Door Hub Mount Material | Polycarbonate |
| Door Hub Mounting | DIN-rail (Included) |
| G3 Reader Pro Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| G3 Reader Pro Weight | 136 g (4.8 oz) |
| G3 Reader Pro Enclosure Material | Polycarbonate, glass |
| G3 Reader Pro Mount Material | Aluminum alloy |
| G3 Reader Pro Mounting | Wall, gang-box mount (Included); Angle mount, junction box (Optional) |
| G3 Reader Pro Weatherproofing | IP55 |
| G3 Reader Pro Indoor/Outdoor Use | Yes |
| Power & Electrical | |
| Door Hub Power Method | PoE++ |
| Door Hub PoE Input | 50V DC, 1A (PoE++ input) |
| Door Hub PoE Outputs | (4) ports, 50V DC, 15.4W per port (Max. 28W aggregated) |
| Door Hub Max. Power Consumption | 30W (Without PoE output); 50W (With PoE output) |
| Door Hub Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Door Hub Dry Output Relay Lock | 30V DC, 1A |
| Door Hub Dry Output Relay Aux | 30V DC, 1A |
| Door Hub Powered Output Relay Lock | 12V DC, 1A |
| Door Hub Powered Output Relay Aux | 12V DC, 0.33A |
| Door Hub Input Terminals | (2) Door exit request, (1) Door position, (1) Emergency |
| Door Hub Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Wireless / RF | |
| G3 Reader Pro Connectivity | BLE 4.2, NFC |
| Networking & Connectivity | |
