Ubiquiti UACC-OM-MM-1G-D-20 (20-Pack) 1G Multi-Mode SFP Transceiver LC 550m
- EhubAmerica SKU
- UACC-OM-MM-1G-D-20
- 1 Gbps
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

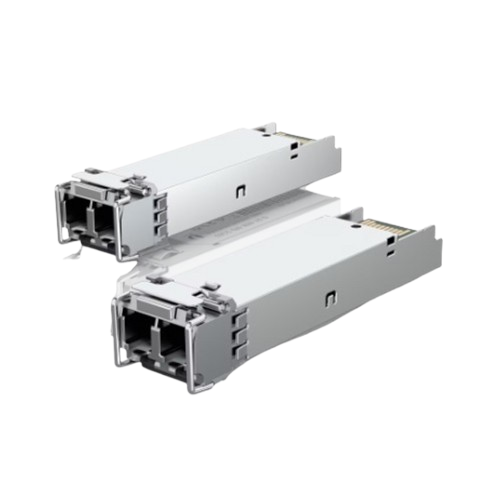

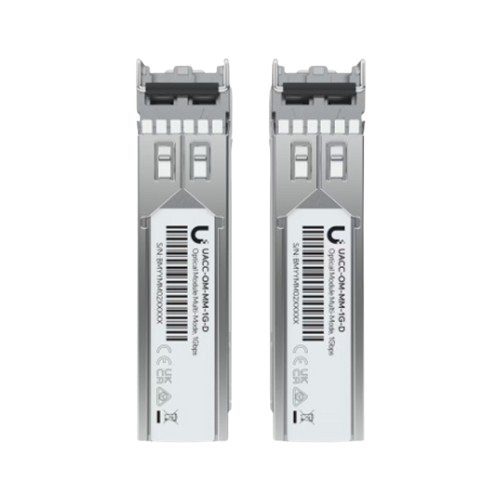

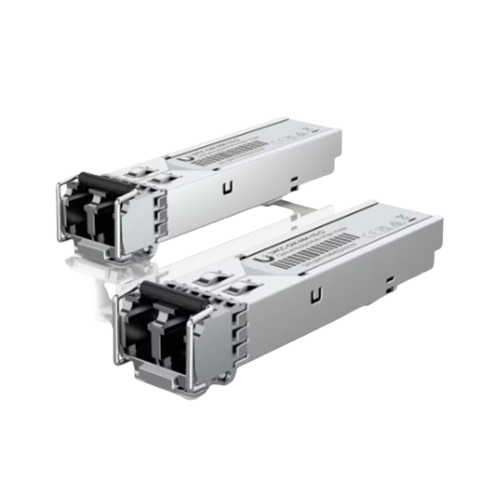

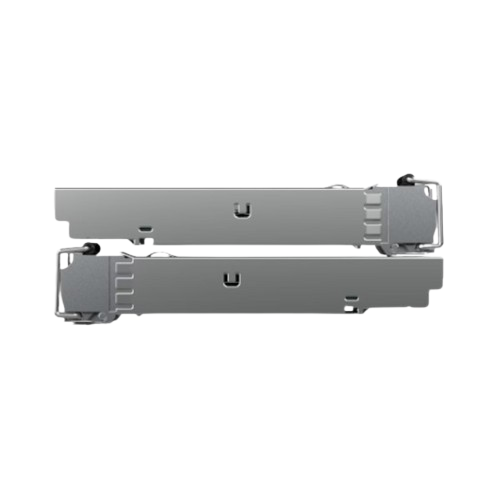

Ubiquiti 20-pack of 1 Gbps multi-mode SFP optical modules with duplex LC UPC connectivity. Supports multi-mode fiber links up to 550 m using an 850 nm TX/RX wavelength.
PRODUCT TYPE
Transceivers
KEY FEATURES
• 20 optical modules per pack
• Maximum data rate of 1 Gbps
• Compatible with SFP interfaces
• Multi-mode fiber support
• Duplex LC UPC connectivity
• 850 nm TX wavelength
• 850 nm RX wavelength
• Supports fiber connections up to 550 m
• Maximum power consumption of 0.66W
• Fiber cable is not included
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Part Number: UACC-OM-MM-1G-D-20
• Package Quantity: 20
• Interface: SFP
• Supported Media: Multi-Mode Fiber
• Connector Type: (2) LC
• Connector Configuration: Duplex LC UPC
• TX Wavelength: 850 nm, black latch
• RX Wavelength: 850 nm, black latch
• Data Rate: 1 Gbps
• Cable Distance: Up to 550 m
• Maximum Power Consumption: 0.66W
• Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
• Laser Classification: Class 1 Laser Product, IEC/EN 60825-1:2014
• Fiber Cable Included: No
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model/Part Number | UACC-OM-MM-1G-D-20 |
| Product Type | 1G Multi-Mode SFP Transceiver |
| Quantity | 20-Pack |
| Networking & Connectivity | |
| Data Rate | 1 Gbps |
| Media Type | Multi-mode fiber |
| Connector Type | Duplex LC UPC |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Maximum Cable Distance | 550 m |
| Compatible Interface | SFP |
| Power & Electrical | |
| Maximum Power Consumption | 0.66 W |
| Environmental | |
| Ambient Operating Temperature | 0 to 70°C (32 to 158°F) |
