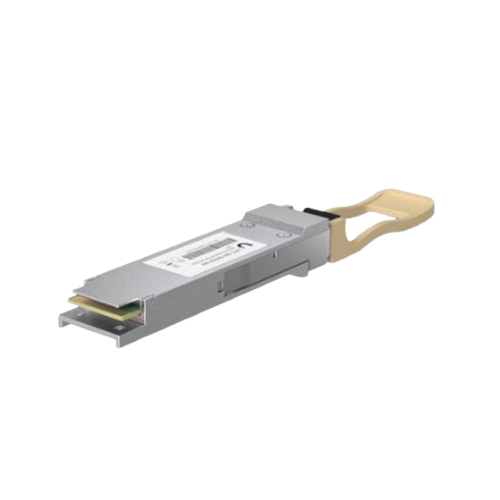

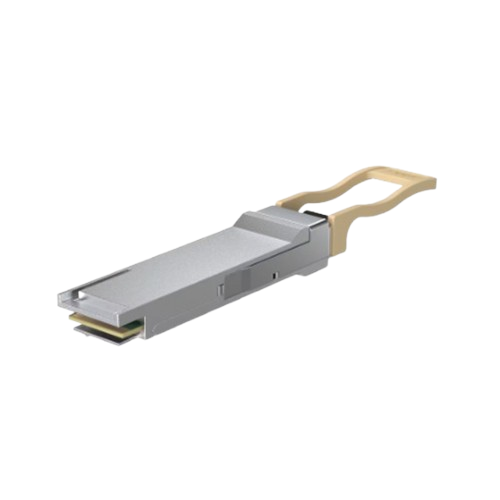

Ubiquiti UACC-OM-QSFP28-SR4 100G SR4 QSFP28 Transceiver MPO-12
- EhubAmerica SKU
- UACC-OM-QSFP28-SR4
- 100 Gbps
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti QSFP28 optical transceiver supporting 100 Gbps connections up to 100 m over multi-mode fiber with an MPO-12 Type B UPC connector.
PRODUCT TYPE
Transceivers
KEY FEATURES
• Maximum data rate of 100 Gbps
• Compatible with QSFP28 and QSFP+ interfaces
• Supports multi-mode fiber connections up to 100 m
• MPO-12 Type B UPC connector
• 850 nm transmit and receive wavelength
• Fiber cable is not included
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Part Number: UACC-OM-QSFP28-SR4
• Supported Media: Multi-mode fiber
• Connector Type: (1) MPO 1x12
• TX Wavelength: 850 nm
• RX Wavelength: 850 nm
• Data Rate: 100 Gbps
• Maximum Power Consumption: 2.5 W
• Cable Distance: Up to 100 m
• Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model/Part Number | UACC-OM-QSFP28-SR4 |
| Product Type | QSFP28 100G SR4 Multi-Mode Optical Module |
| Data Rate | 100 Gbps |
| Networking & Connectivity | |
| Connector Type | MPO-12 Type B UPC |
| Supported Media | Multi-mode fiber |
| Maximum Cable Distance | 100 m |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Compatible Interfaces | QSFP28 and QSFP+ |
| Power & Electrical | |
| Maximum Power Consumption | 2.5W |
| Environmental | |
| Ambient Operating Temperature | 0 to 70°C (32 to 158°F) |
