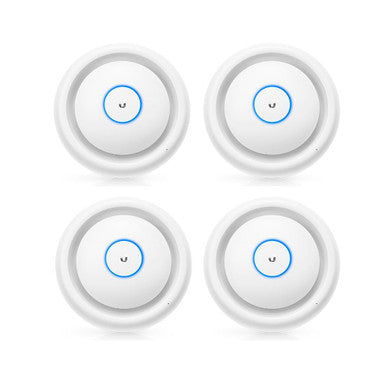

Ubiquiti UniFi AP AC EDU 11ac Dual-Radio AP Concurrent Clients 200+ (4-Pack)

PRODUCT OVERVIEW

UniFi Access Point AC EDU 802.11ac Dual-Radio AP with Public Address System

PRODUCT TYPE / CATEGORY

• Networking
• Wireless Access Points

KEY FEATURES

• Make announcements over Wi-Fi - no separate hardware needed.
• The UniFi EDU mobile app is now available in the App Store for iOS and Google Play Store for Android.
• The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.
• The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.
• US version UAP-AC-EDU-4-US
• Specifications Networking Interface: (1) 10/100/1000 Ethernet Ports
• Antennas: (3) Dual-Band Antennas, 3 dBi Each
• Max TX Power: 2.4GHz: 22 dBm - 5GHz: 22 dBm
• Buttons: Reset
• Wifi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC) ** PoE Not Included**
• Maximum Power Consumption: 20W
• BSSID: Up to Four Per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC
• Mounting: Wall and Ceiling
• Operating Temperature: -10 to 70°C (14 to 158°F)

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: UAP-AC-EDU-4
• Product Type: Wireless Access Points
• Make announcements over Wi-Fi - no separate hardware needed.
• The UniFi EDU mobile app is now available in the App Store for iOS and Google Play Store for Android.
• The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.
• The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.
• US version UAP-AC-EDU-4-US
• Specifications Networking Interface: (1) 10/100/1000 Ethernet Ports
• Antennas: (3) Dual-Band Antennas, 3 dBi Each
• Max TX Power: 2.4GHz: 22 dBm - 5GHz: 22 dBm
• Buttons: Reset
• Wifi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC) ** PoE Not Included**
• Maximum Power Consumption: 20W
• BSSID: Up to Four Per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC
• Mounting: Wall and Ceiling
• Operating Temperature: -10 to 70°C (14 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Advanced Traffic Management VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort and Background
• Concurrent Clients: 200+
• Loudspeaker Acoustics Sensitivity: 94 dB (1W/1 m)
• Maximum SPL: 103 dB @ 1 m
• Frequency Response: 100 - 20,000 Hz
• Type: Two-Way Speaker with Second-Order HP Filter
• Microphone Acoustics Sensitivity: -40 dB

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
