Ubiquiti · Wireless Access Points
Ubiquiti UAP-nanoHD-3 (3-Pack) 802.11ac Dual-Band Wireless Access Point 2+ Gbps
- EhubAmerica SKU
- UAP-nanoHD-3
- 802.11a/b/g/n/ac/ac-wave2
- PoE
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

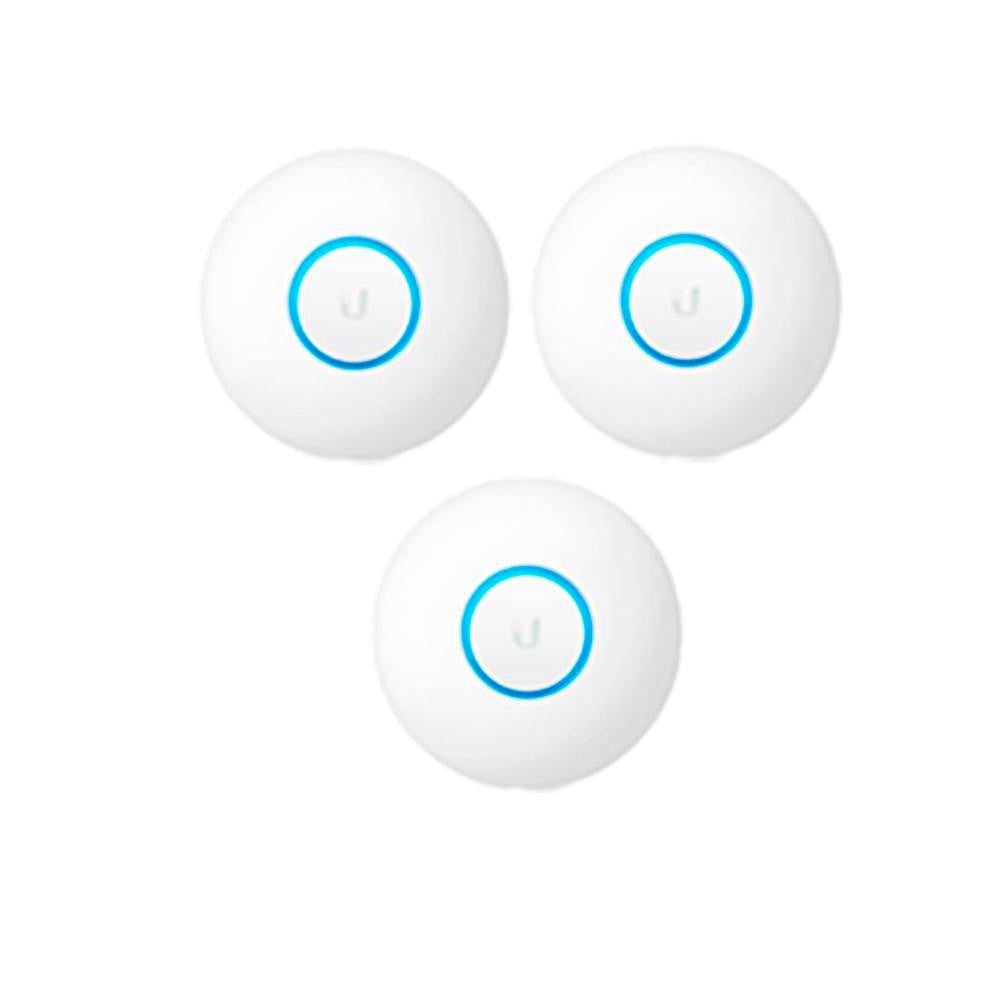

Three Ubiquiti UniFi nanoHD indoor access points featuring simultaneous dual-band Wi-Fi, 4x4 MU-MIMO on 5 GHz, 802.3af PoE, and support for 200+ concurrent clients per AP.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Three UAP-nanoHD access points
• 802.11ac Wave 2 MU-MIMO technology
• Simultaneous dual-band operation
• 4x4 MIMO on 5 GHz
• 2x2 MIMO on 2.4 GHz
• 5 GHz radio rate up to 1733 Mbps
• 2.4 GHz radio rate up to 300 Mbps
• Supports 200+ concurrent clients per access point
• 802.3af PoE compatible
• Beamforming supported
• Wireless uplink supported
• DFS certification
• VLAN 802.1Q support
• Per-user rate limiting
• Guest traffic isolation
• Wall and ceiling mounting support
• Centralized management through UniFi Controller software
TECHNICAL SPECIFICATIONS
• Model: UAP-nanoHD
• Quantity: 3 Access Points
• Environment: Indoor
• Dimensions Per AP: 160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29")
• Weight Per AP: 300 g (10.6 oz)
• Weight With Mounting Kits: 315 g (11.1 oz)
• Network Interface: (1) 10/100/1000 Ethernet port
• Power Method: 802.3af PoE
• Supported Voltage Range: 44–57VDC
• Maximum Power Consumption: 10.5W
• 2.4 GHz TX Power: 23 dBm
• 5 GHz TX Power: 26 dBm
• 2.4 GHz MIMO: 2x2
• 5 GHz MIMO: 4x4
• 2.4 GHz Radio Rate: 300 Mbps
• 5 GHz Radio Rate: 1733 Mbps
• 2.4 GHz Antennas: (2) single-port, single-polarity antennas, 2.8 dBi each
• 5 GHz Antennas: (2) single-port, dual-polarity antennas, 3 dBi each
• Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
• BSSID: 8 per radio
• Concurrent Clients: 200+ per AP
• VLAN: 802.1Q
• Advanced QoS: Per-user rate limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background

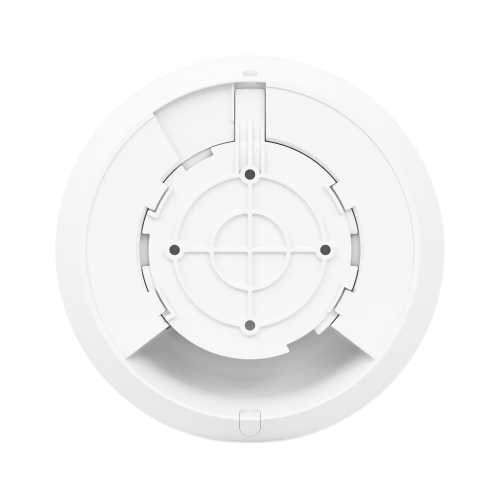

• Mounting: Wall/Ceiling
• Operating Temperature: -10 to 70°C (14 to 158°F)
• Operating Humidity: 5–95% noncondensing
• Certifications: CE, FCC, IC
INTENDED USE / APPLICATIONS
• High-density indoor wireless environments
• Enterprise Wi-Fi networks
• University and industrial campuses
• Corporate buildings
• Hotels
• Dormitories and residences
• Internet cafes
• Multi-site managed wireless deployments
Specifications
Technical specifications
| General | |
|---|---|
| Model | UAP-NanoHD-3 |
| Brand | Ubiquiti |
| SKU | UAP-nanoHD-3 |
| Product Type | Dual-band 802.11ac Wave 2 Access Point |
| Concurrent Client Capacity | 200+ |
| Aggregate Throughput Rate | 2+ Gbps |
| Physical | |
| Dimensions | Ø160 x 32.7 mm (Ø6.3 x 1.3") |
| Weight (without mount) | 300 g (10.6 oz) |
| Weight (with mount) | 315 g (11.1 oz) |
| Mounting | Wall/ceiling (included) |
| Power & Electrical | |
| Power Method | PoE |
| Max. Power Consumption | 10.5W |
| Supported Voltage Range | 44–57V DC |
| Wireless / RF | |
| WiFi Standards | 802.11a/b/g/n/ac/ac-wave2 |
| 5 GHz Band | 4x4 MU-MIMO, 1.733 Gbps throughput, 26 dBm TX power, 3 dBi antenna gain |
| 2.4 GHz Band | 2x2 MIMO, 300 Mbps throughput, 23 dBm TX power, 2.8 dBi antenna gain |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per Radio |
| WMM | Voice, video, best effort, and background |
| Supported Data Rates (802.11n) | 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40) |
| Supported Data Rates (802.11ac) | 6.5 Mbps to 1.7 Gbps |
| Networking & Connectivity | |

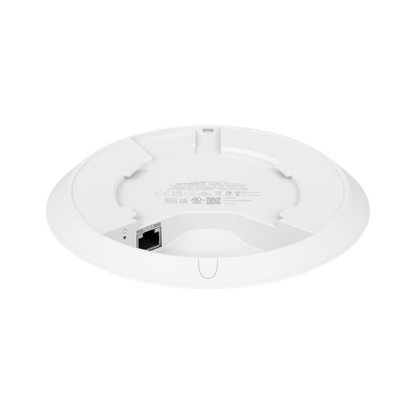

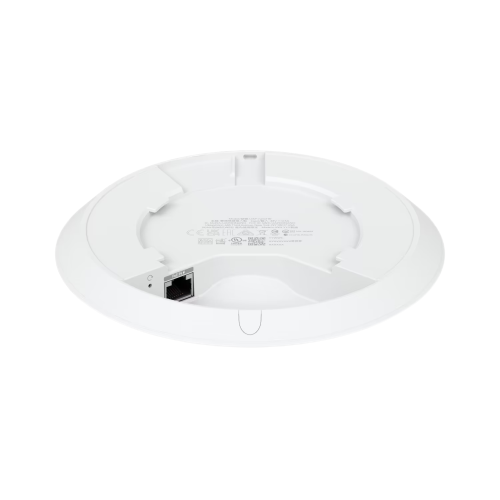

| Networking Interface | (1) Gigabit RJ45 port |
| Environmental | |
| Operating Temperature | −10 to 70°C (14 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| Compatible Model | UAP-nanoHD-3-US (US version) |
