Ubiquiti UCG-Max 2.5GbE Cloud Gateway 512GB NVR 2.3Gbps IDS/IPS
- EhubAmerica SKU
- UCG-Max
$305.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti UCG-MAX – Compact 2.5G Cloud Gateway Max 512GB Storage
PRODUCT TYPE
IP Camera
KEY FEATURES

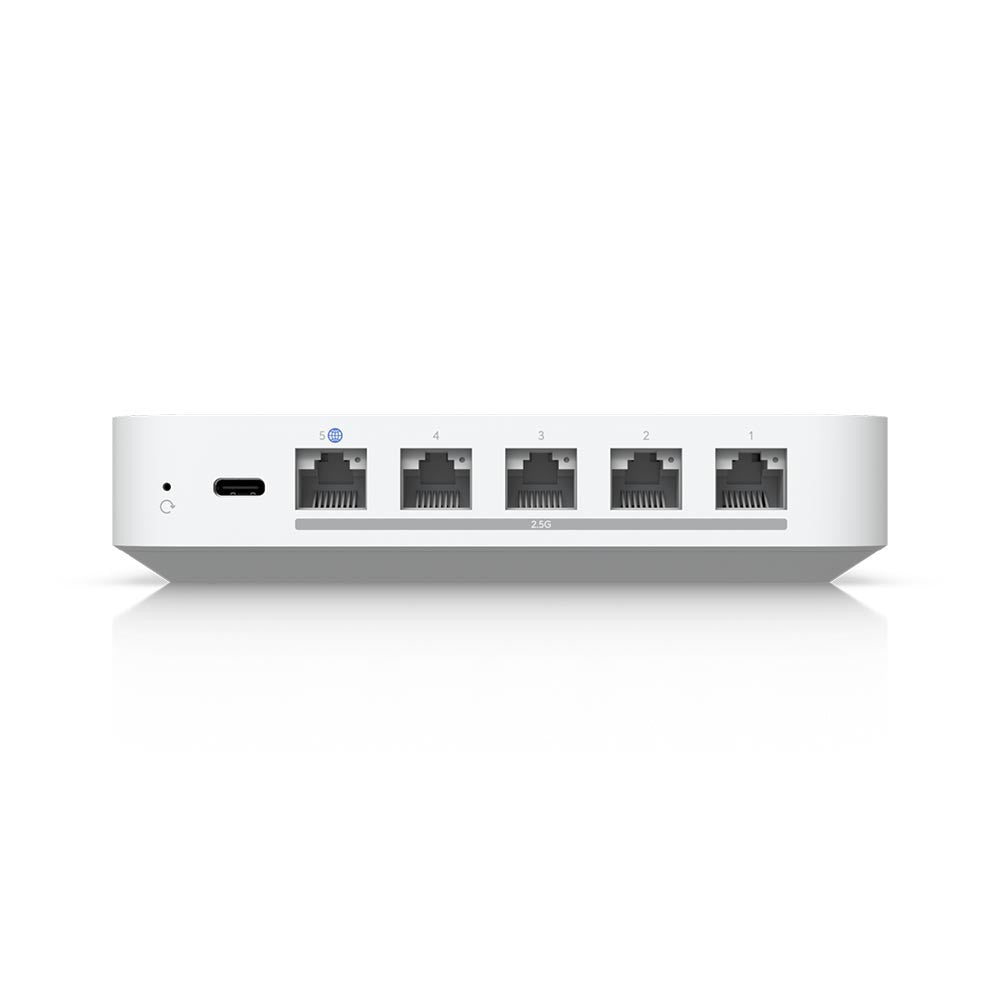

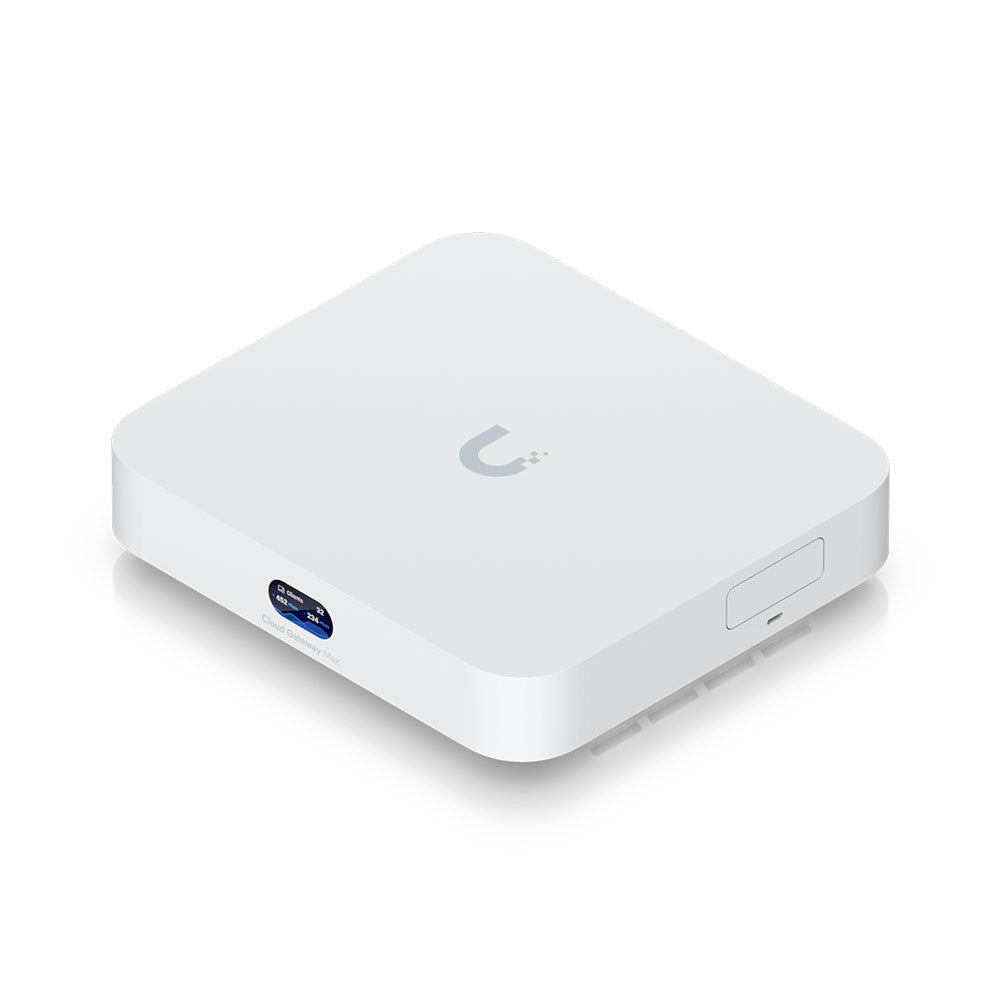

- Compact desktop UniFi Cloud Gateway Max with 141.8 x 127.6 x 30 mm enclosure
- Five 2.5 GbE RJ45 ports with 2.5G/1G/100M/10M support
- Default WAN interface: (1) 2.5 GbE RJ45, with max. WAN port count of 4
- Supports 30+ managed UniFi devices and 300+ simultaneous users connected
- Integrated 512 GB NVR storage for UniFi Protect recording
- 2.3 Gbps IDS/IPS throughput with 55,000+ IDS/IPS signatures with CyberSecure
- Runs UniFi Network, Protect, Access, Talk, and Connect applications
- USB Type-C powered with included 5V DC/5A adapter
- Applications
- Small business network gateway with integrated UniFi management
- Remote office routing with multi-WAN failover and VPN access
- Managed network deployments with gateway, security, and traffic segmentation in one device
- Camera deployments that need onboard NVR storage for UniFi Protect
- Compact desktop installations where rack space is not available
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: UCG-Max
- Product Type: Networking Accessories
- Capacity
- Managed UniFi Devices: 30+
- Managed Cameras: (15) HD; (8) 2K; (5) 4K
- Managed Access Hubs: 50
- Simultaneous Users Connected: 300+
- UniFi Applications: Network, Protect, Access, Talk, Connect
- Ports / Interfaces
- Port Layout: (5) 2.5 GbE RJ45 ports (2.5G/1G/100M/10M)
- LAN Ports: (4) 1/2.5 GbE RJ45 Ports
- Default WAN Ports: (1) 2.5 GbE RJ45
- Max. WAN Port Count: 4
- Management: Ethernet; Bluetooth
- LEDs: Ethernet
- Button: (1) Factory reset
- LCM Display: 0.96' status display
- Security
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- DPI & Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering: Regions, Domains, Apps
- Content Filtering: Yes
- Intrusion Prevention: IPS/IDS
- Ad Blocking: Yes
- IDS/IPS Signatures: 55,000+ with CyberSecure
- VLAN/Subnet-based Traffic Segmentation: Yes
- IDS/IPS Throughput: 2.3 Gbps
- VPN & SD-WAN
- License-Free SD-WAN: Yes
- Site-to-Site VPN: Site Magic; IPsec; OpenVPN
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | UCG-Max |
| Brand | Ubiquiti |
| Product Name | UniFi Cloud Gateway Max |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (15) HD; (8) 2K; (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 300+ |
| UniFi Applications | Network, Protect, Access, Talk, Connect |
| Physical | |
| Dimensions | 141.8 x 127.6 x 30 mm |

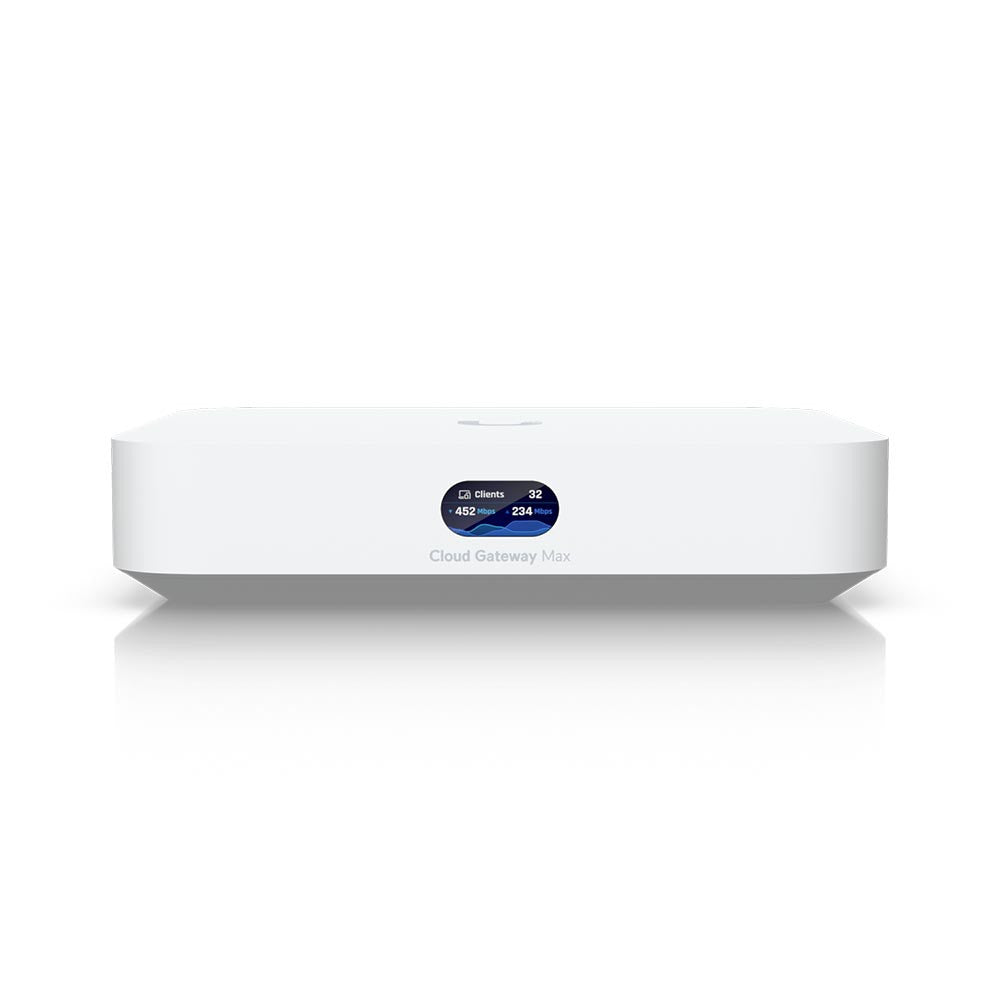

| Status Display | 0.96" LCM display |
| Factory Reset Button | (1) |
| Power & Electrical | |
| Power Input | USB Type-C |
| Power Adapter | 5V DC/5A (included) |
| Networking & Connectivity | |
| Ethernet Ports | (5) 2.5 GbE RJ45 ports (2.5G/1G/100M/10M support) |
| LAN Ports | (4) 1/2.5 GbE RJ45 ports |
| WAN Ports (Default) | (1) 2.5 GbE RJ45 |
| WAN Ports (Max Count) | 4 |
| Management Interfaces | Ethernet, Bluetooth |
| Status LEDs | Ethernet |
| IDS/IPS Throughput | 2.3 Gbps |
| IDS/IPS Signatures | 55,000+ |
| Firewall | Stateful firewall with application-aware Layer 7 filtering |
| VPN Support | IPsec, OpenVPN, WireGuard, L2TP, Teleport VPN |
| SD-WAN | License-free support |
| Compatibility | |
| NVR Storage | 512 GB (integrated for UniFi Protect recording) |
