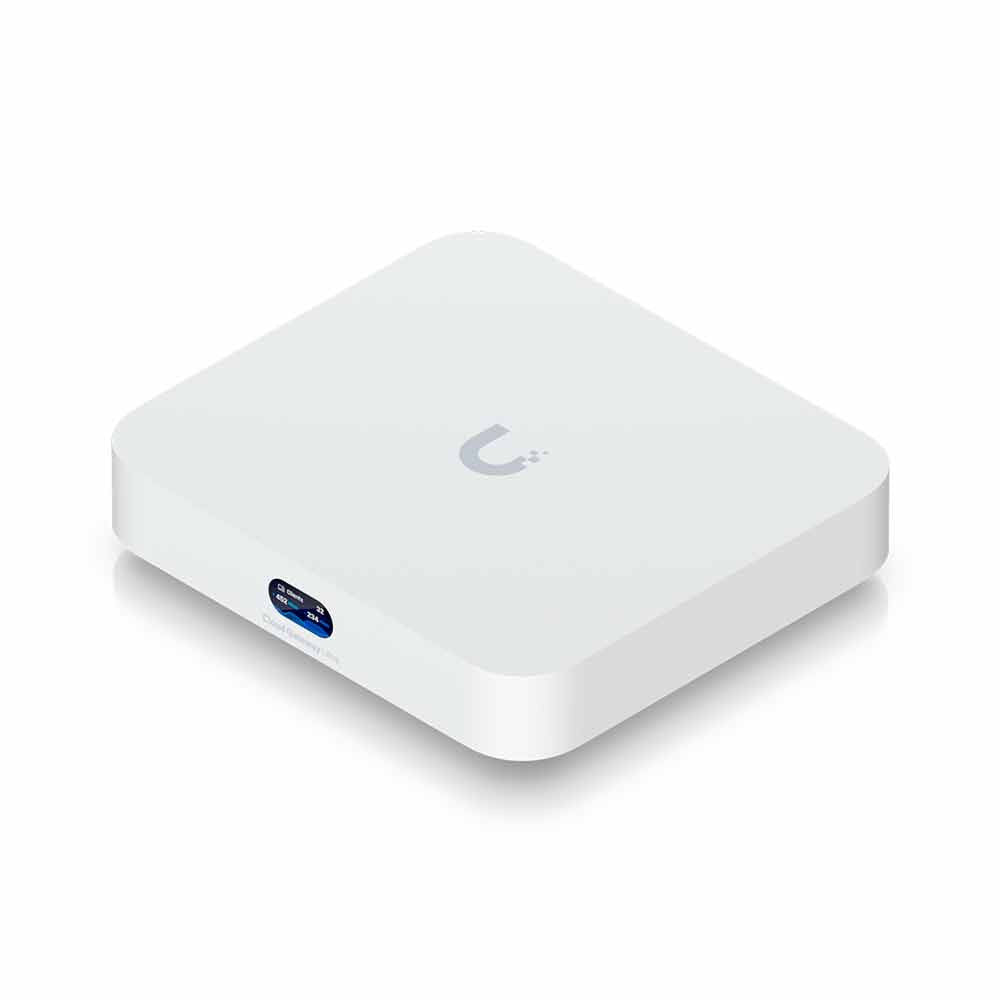

Ubiquiti UCG-ULTRA Cloud Gateway Ultra Routing
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Compact all-in-one UniFi Cloud Gateway designed to manage UniFi networks with advanced routing, IDS/IPS security, multi-WAN support, and integrated display. Suitable for small to medium environments requiring centralized network control.
PRODUCT TYPE / CATEGORY
Networking – Routers and Switches
KEY FEATURES
• Runs UniFi Network for centralized device management
• Manages 30+ UniFi devices and 300+ clients
• 1 Gbps routing with integrated IDS/IPS
• Signature-based IPS/IDS threat detection
• Multi-WAN with failover and load balancing
• License-free SD-WAN capabilities
• Application-aware firewall rules
• VLAN and subnet-based traffic segmentation
• WireGuard, L2TP, and OpenVPN server support
• OpenVPN and IPsec site-to-site VPN
• 0.96" LCM status display
• USB-C powered (adapter included)
• Compact form factor for desktop or wall placement
TECHNICAL SPECIFICATIONS
Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory: 3 GB DDR4
Storage: 16 GB eMMC

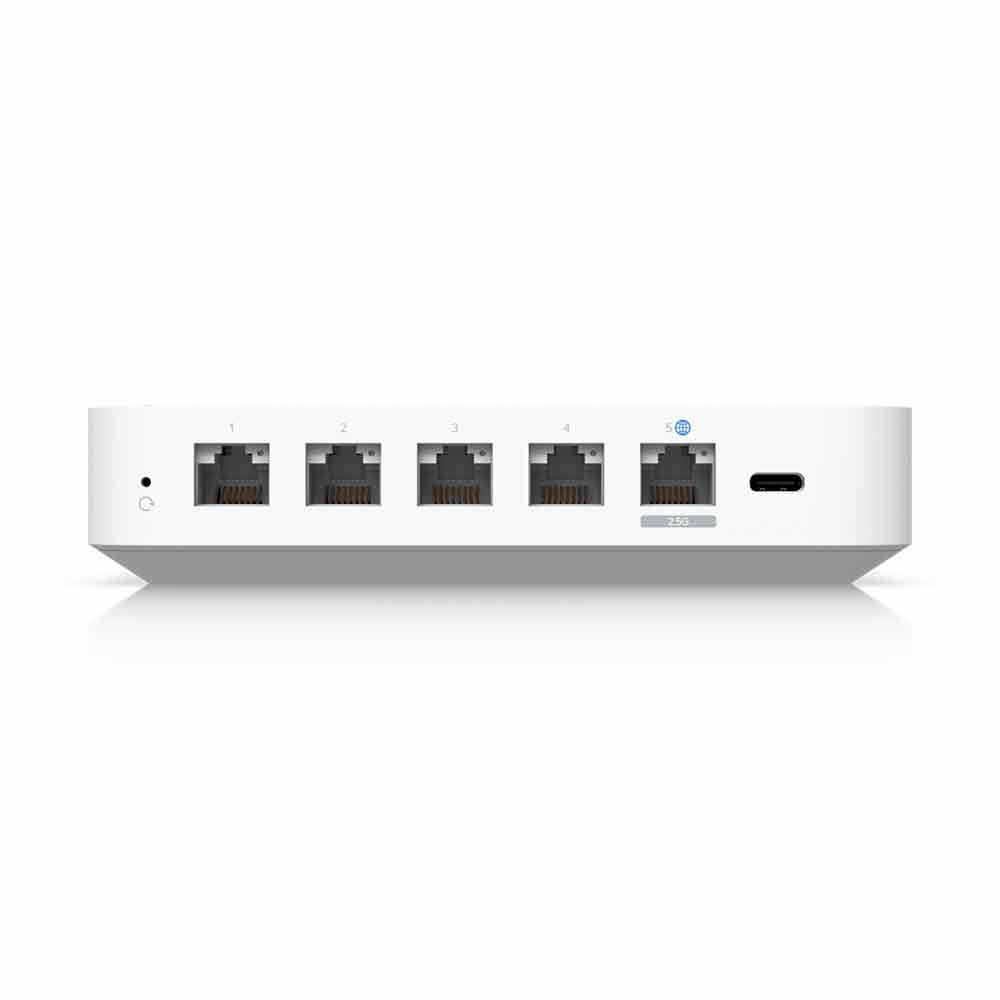

LAN Ports: (4) GbE RJ45
WAN Port: (1) 1/2.5 GbE RJ45
IDS/IPS Throughput: 1 Gbps (Measured with iPerf3 on DHCP network; performance may vary with PPPoE)
Management Interfaces: Ethernet, Bluetooth
Power Method: USB Type-C (5V DC / 3A)
Supported Voltage Range: 100–240V AC
Maximum Power Consumption: 6.2W
Display: 0.96" LCM status display
Button: Factory reset
Operating Temperature: -10 to 40°C (14 to 104°F)
Operating Humidity: 5–95% non-condensing
Certifications: CE, FCC, IC
