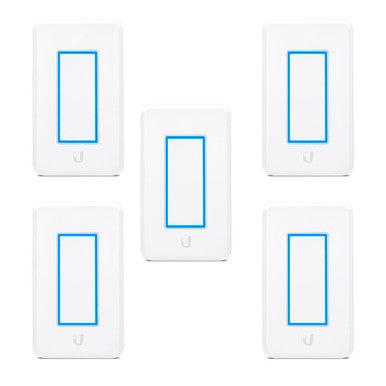

Ubiquiti UDIM-AT-5 (5-Pack) PoE Smart Dimmer Switch UniFi LED
- EhubAmerica SKU
- UDIM-AT-5
- 802.3af PoE
- 1-Gang In-Wall Electrical Box
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
The UniFi Dimmer is a smart in-wall dimmer switch for use with the UniFi LED Lighting System. Powered by PoE, the UDIM-AT is designed to fit in an electrical switch box and networked by Ethernet. Use the intuitive UniFi LED App and EoT application to configure the UDIM-AT to control a defined group of UniFi LED Lights.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Powered by 802.3af PoE
• Configured and Managed with UniFi LED application and UniFi LED mobile app
• For Use with the UniFi LED Lighting System
• Configure and Control Multiple UniFi LED Lights
• Physical On/Off and Dimming Features
• Fits 1-Gang In-Wall Electrical Box
• Dimensions 71 x 115 x 25 mm (2.8 x 4.53 x 0.98")
• Weight 90 g (3.2 oz)
• Networking Interface 10/100 Ethernet Port
• Buttons Reset
• LEDs Status
• Power Method 802.3af PoE
• Max. Power Consumption 5W
• Max. LED Panels per Dimmer Switch 128 (Recommended)
• Operating Temperature 0 to 40° C (32 to 104° F)
• Certifications FCC, IC
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UDIM-AT-5
• Product Type: Routers and Switches
• Powered by 802.3af PoE
• Configured and Managed with UniFi LED application and UniFi LED mobile app
• For Use with the UniFi LED Lighting System
• Configure and Control Multiple UniFi LED Lights
• Physical On/Off and Dimming Features
• Fits 1-Gang In-Wall Electrical Box
• Dimensions 71 x 115 x 25 mm (2.8 x 4.53 x 0.98")
• Weight 90 g (3.2 oz)
• Networking Interface 10/100 Ethernet Port
• Buttons Reset
• LEDs Status
• Power Method 802.3af PoE
• Max. Power Consumption 5W
• Max. LED Panels per Dimmer Switch 128 (Recommended)
• Operating Temperature 0 to 40° C (32 to 104° F)
• Certifications FCC, IC
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | UDIM-AT |
| SKU | UDIM-AT-5 |
| Product Type | Smart In-Wall Dimmer Switch |
| Application | UniFi LED Lighting System control |
| Physical | |
| Dimensions | 71 x 115 x 25 mm (2.8 x 4.53 x 0.98") |
| Weight | 90 g (3.2 oz) |
| Form Factor | 1-Gang In-Wall Electrical Box |
| Power & Electrical | |
| Power Method | 802.3af PoE |
| Max. Power Consumption | 5W |
| Networking & Connectivity | |
| Networking Interface | 10/100 Ethernet Port |
| Buttons | Reset |
| LEDs | Status |
| Environmental | |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Compatibility | |
| Max. LED Panels per Dimmer Switch | 128 (Recommended) |
| Compatible System | UniFi LED Lighting System |
| General | |
| Certifications | FCC, IC |
