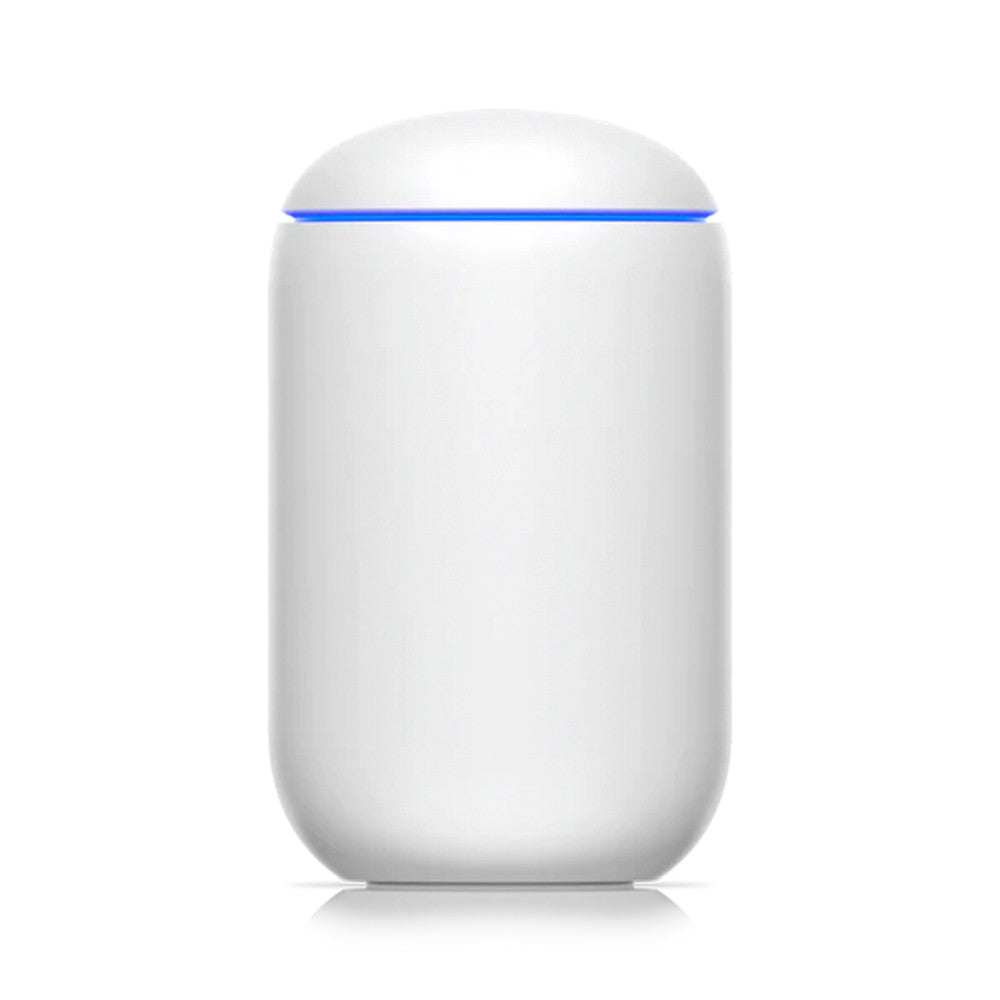

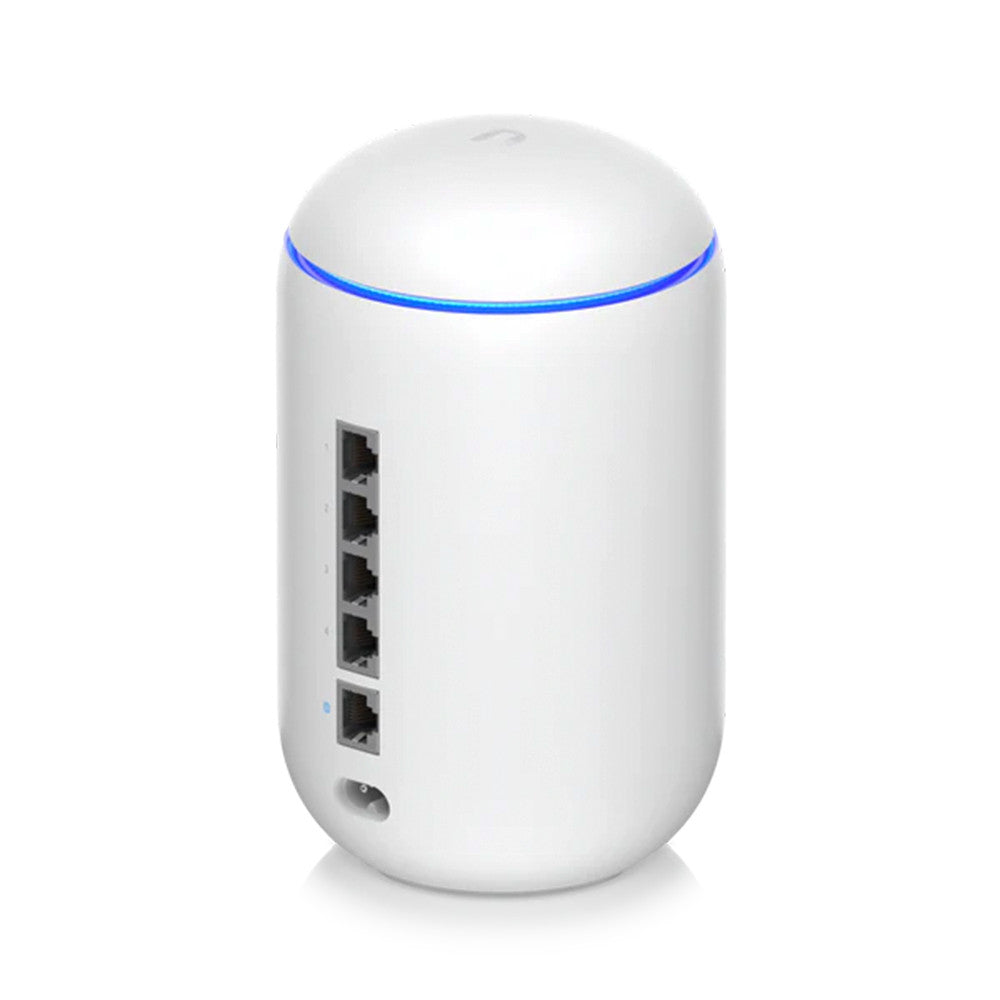

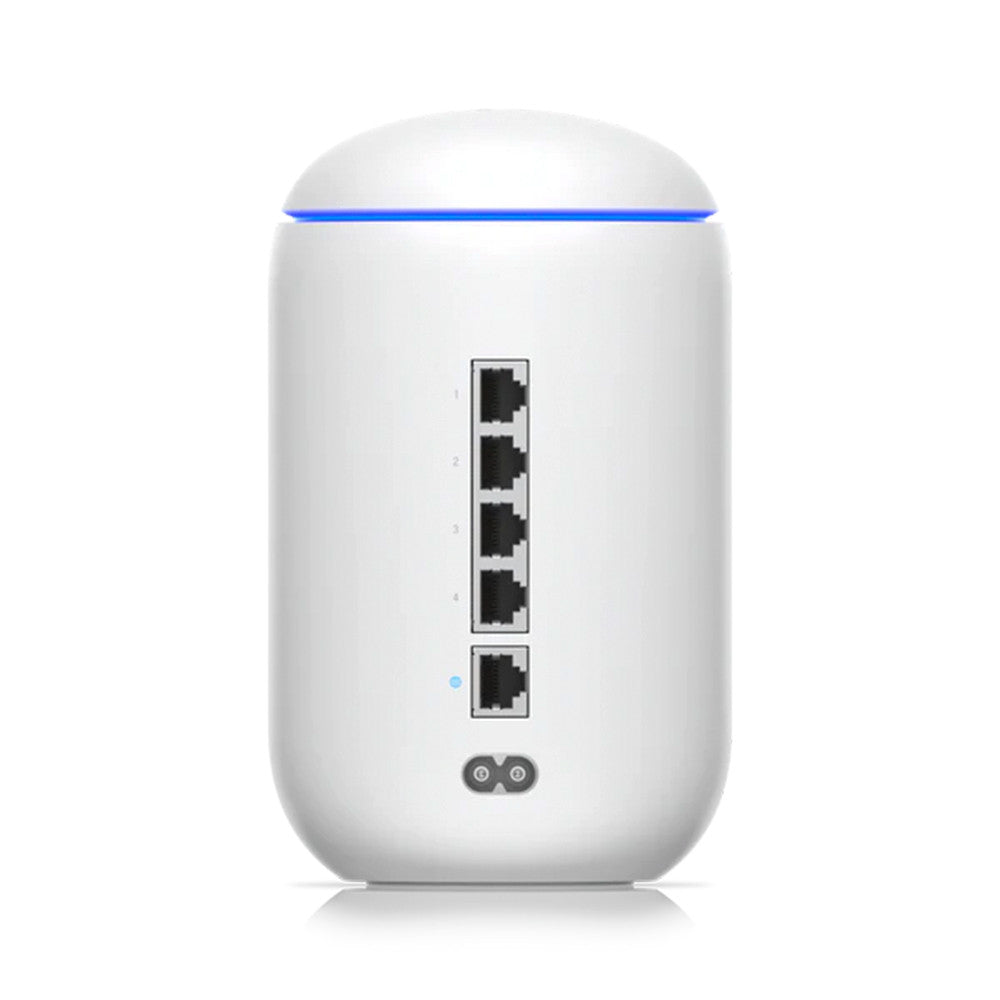

Ubiquiti UDM-US WiFi 5 4-Port Gigabit PoE Security Gateway
- EhubAmerica SKU
- UDM-US
- AC Power Cord
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti Dream Machine with four GbE LAN ports, one GbE WAN port, dual-band WiFi 5, 4x4 MIMO at 5 GHz, and support for 100+ concurrent wireless clients.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• (4) GbE RJ45 LAN ports
• (1) GbE RJ45 WAN port
• Dual-band WiFi 4 / WiFi 5
• 2x2 MIMO at 2.4 GHz
• 4x4 MIMO at 5 GHz
• Up to 300 Mbps throughput at 2.4 GHz
• Up to 1.7 Gbps throughput at 5 GHz
• Supports 100+ concurrent clients
• Internal dual-band, quad-polarity antenna
• Ethernet and Bluetooth management
• 802.1Q VLAN support
• Per-user rate limiting
• Guest traffic isolation supported
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model: UDM
• Part Number: UDM-US
• Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3")
• Weight: 1.1 kg (2.3 lb)
• Enclosure Material: Polycarbonate
• Processor: Quad-Core Arm Cortex-A57 at 1.7 GHz
• System Memory: 2 GB DDR RAM
• Management Interface: Ethernet, Bluetooth
• LAN Interfaces: (4) GbE RJ45
• WAN Interface: (1) GbE RJ45
• Power Method: Universal AC Input, 100–240V AC, 0.6A Max., 50/60 Hz
• Power Supply: Internal AC/DC, 50 W
• Maximum Power Consumption: 26 W
• Maximum TX Power at 2.4 GHz: 23 dBm
• Maximum TX Power at 5 GHz: 26 dBm
• MIMO at 2.4 GHz: 2x2
• MIMO at 5 GHz: 4x4
• Throughput Rate at 2.4 GHz: 300 Mbps
• Throughput Rate at 5 GHz: 1.7 Gbps
• Antenna Gain at 2.4 GHz: 3 dBi
• Antenna Gain at 5 GHz: 4.5 dBi
• Antenna: (1) Internal Dual-Band Quad-Polarity Antenna
• WiFi Standards: 802.11a/b/g, WiFi 4, WiFi 5
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
• BSSID: Up to 8 Per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• Concurrent Clients: 100+
• Operating Temperature: -10 to 45°C (14 to 113°F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | UDM-US |
| Product Name | UDM Dream Machine |
| Description | All-in-one console and security gateway |
| Physical | |
| Dimensions | Ø 110 x 184.2 mm (Ø 4.33 x 7.25") |
| Weight | 1.05 kg (2.32 lb) |
| Power & Electrical | |
| Maximum Power Consumption | 26W |
| Supported Voltage Range | 100 - 240VAC |
| Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC) |
| Power Method | AC Power Cord |
| Power Save | Supported |
| Networking & Connectivity | |
| LAN Ports | (4) 10/100/1000 Gigabit RJ45 |
| WAN Ports | (1) 10/100/1000 Gigabit RJ45 |
| Switch Ports | Four-port Gigabit switch |
| Processor | Arm Cortex-A57 Quad-Core at 1.7 GHz |
| System Memory | 2 GB DDR RAM |
| Storage | 16 GB On-Board Flash |
| IDS/IPS Throughput | 850 Mbps |
| Buttons | Reset |
| Wireless / RF | |
| WiFi Standard | 802.11 a/b/g/n/ac/ac-wave2 |
| WiFi Type | Dual-band WiFi 5 access point |
| Antenna | (1) Dual-Band, Quad-Polarity |
| Antenna Gain (2.4 GHz) | 3 dBi |
| Antenna Gain (5 GHz) | 4.5 dBi |
| TX Power (2.4 GHz) | 23 dBm |
| TX Power (5 GHz) | 26 dBm |
| Beamforming | Supported |
| BSSID | Up to 8 per Radio |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| Environmental | |
| Operating Temperature | -10 to 45°C (14 to 113°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Compatibility | |
| Compatible with | UDM (International version) |
