Ubiquiti UDW Dream Wall WiFi 6 Cloud Gateway 10G SFP+ 17-Port PoE++
- EhubAmerica SKU
- UDW
- 4x4 MIMO
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

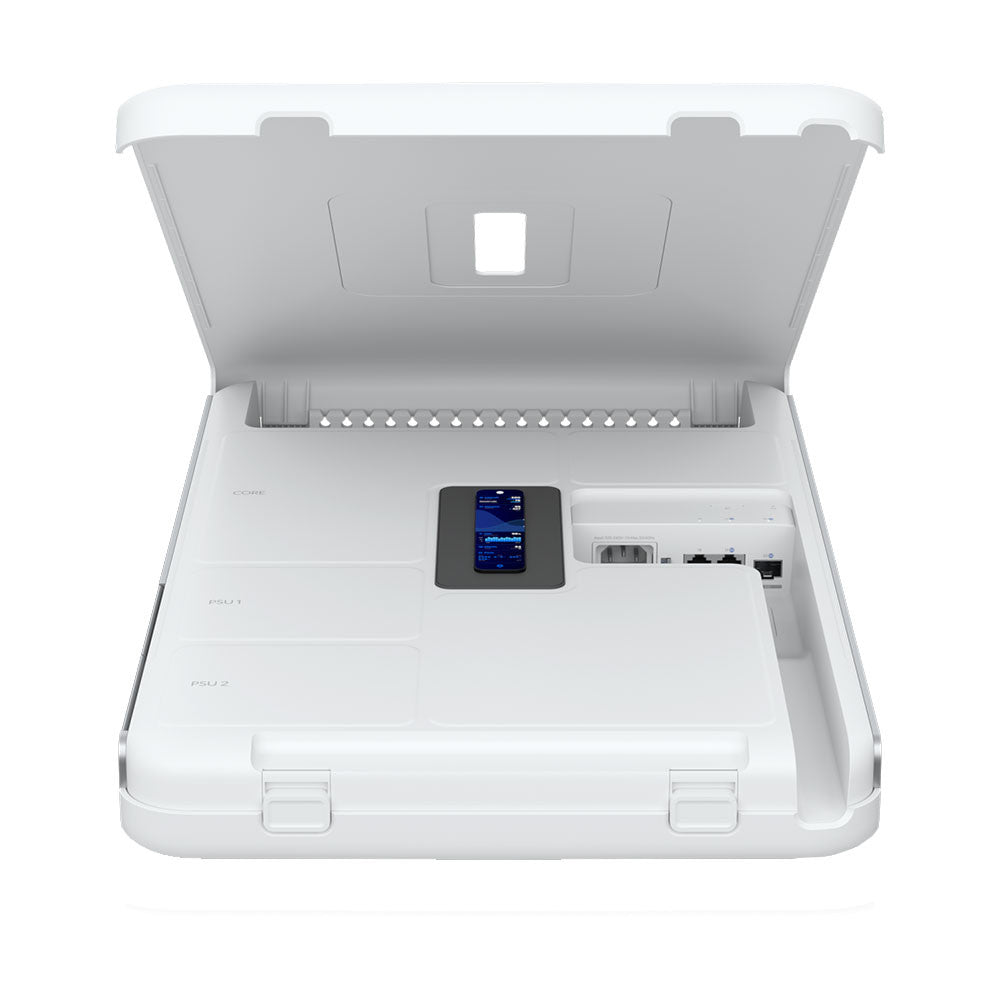

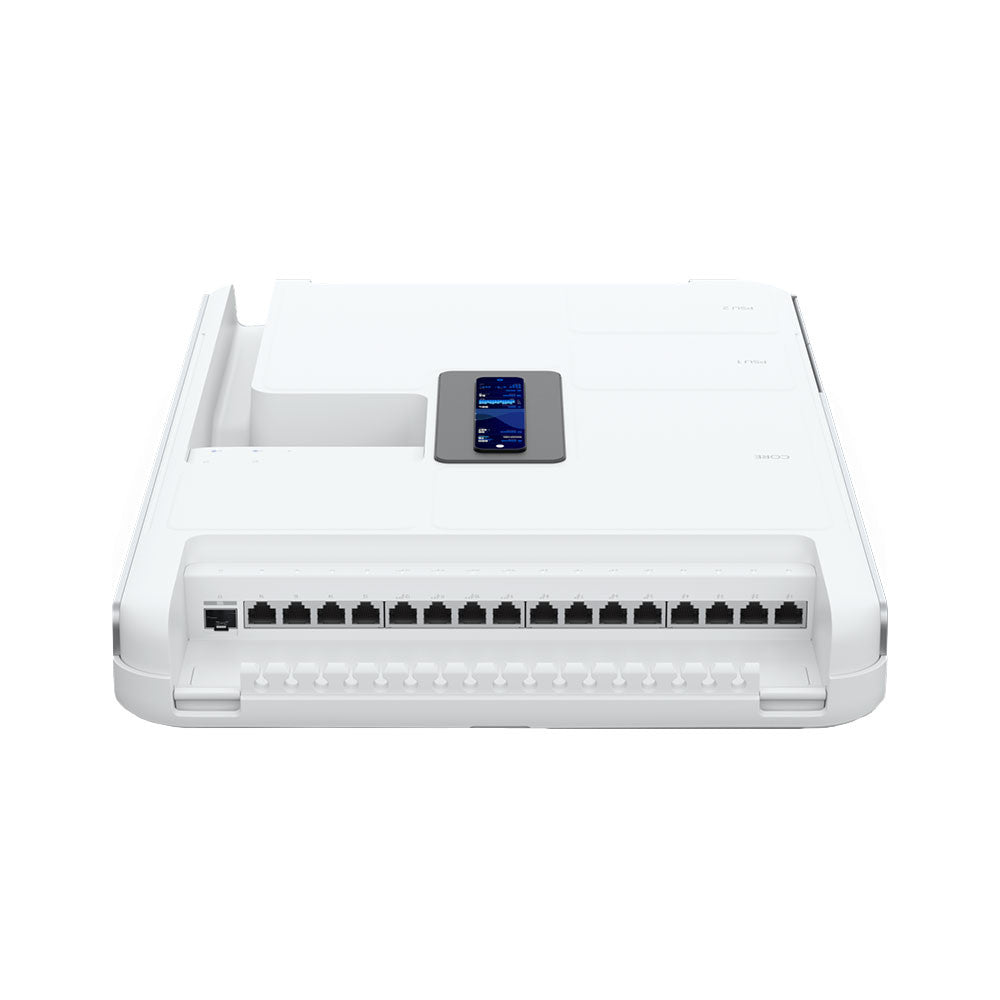

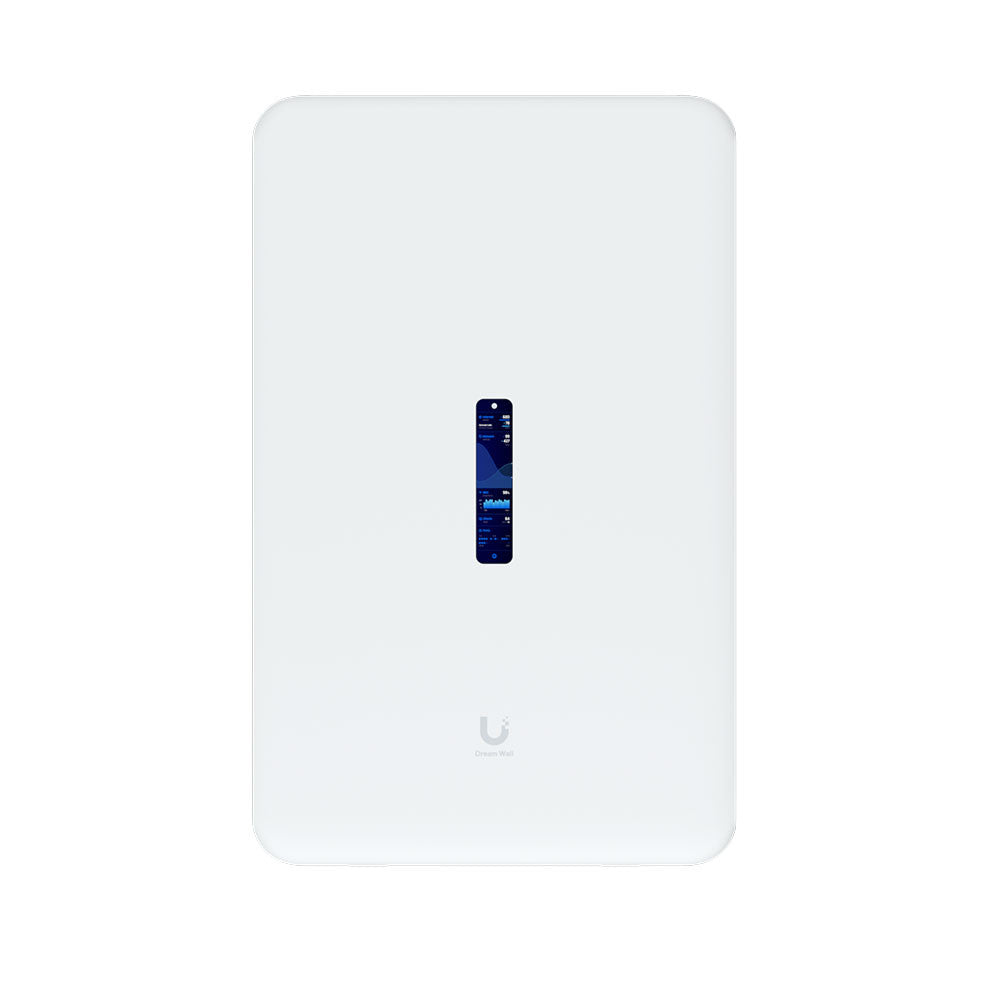

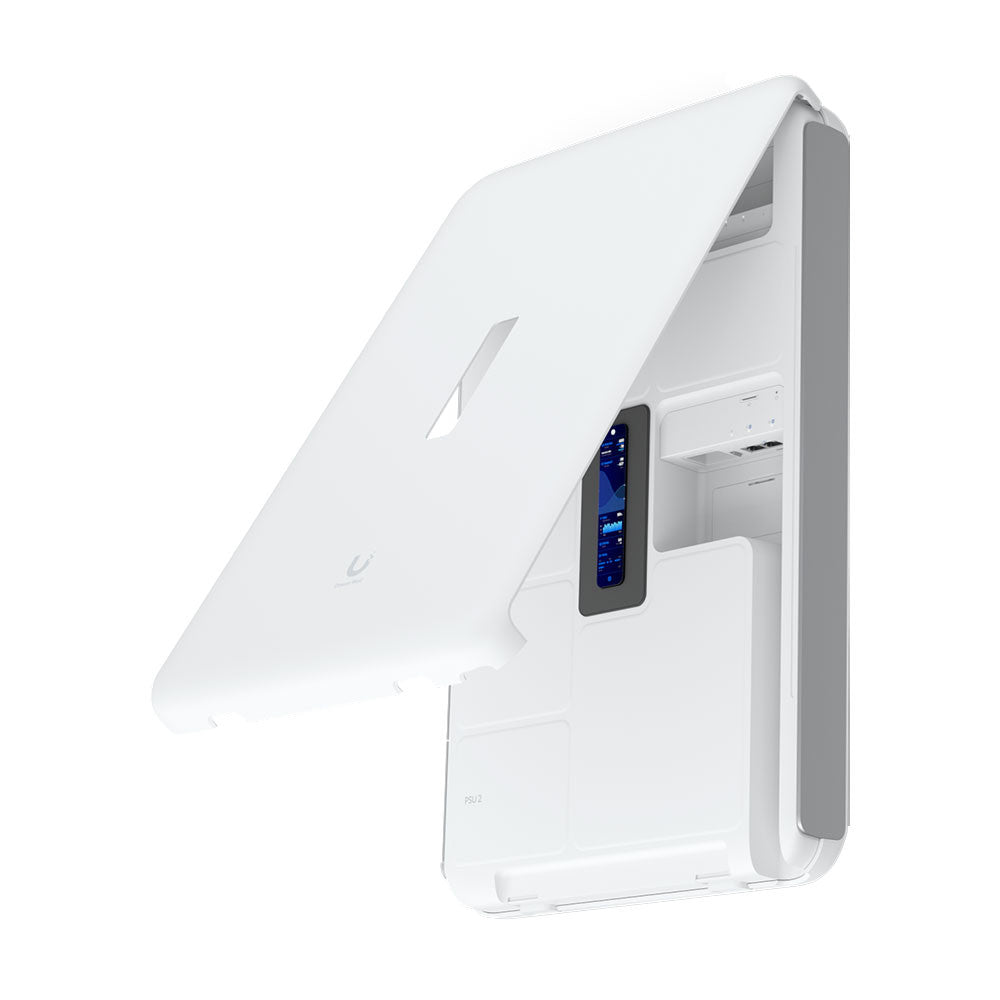

The Ubiquiti Dream Wall (UDW) is a wall-mountable UniFi Cloud Gateway that integrates high-performance routing, WiFi 6 capabilities, PoE switching, and support for all UniFi applications. It is designed for enterprise environments requiring robust networking solutions with advanced connectivity and security features.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• WiFi 6 Access Point : Enterprise-grade 4x4 MIMO for superior performance.
• Full UniFi OS : Manages all UniFi applications, including networking, security, and IoT devices.
• High-Speed Networking : (1) 10G SFP+ WAN and LAN ports.
• (17) GbE RJ45 LAN ports, including: (4) PoE++ ports (60W max per port).
• (4) PoE+ ports (30W max per port).
• (4) PoE ports (15.4W max per port).
• (1) 2.5 GbE RJ45 WAN port.
• Advanced Touchscreen Management : A 4.7' LCM touchscreen for intuitive configuration and monitoring.
• Storage : Integrated 128 GB SSD.
• Pre-installed 512 GB microSD card with expansion capabilities.
• Robust Power : Supports 532W max power consumption.
• Dual hot-swappable AC/DC 550W power supplies.
• Enterprise Environments : High-performance networking for offices or campuses.
• Smart Home Hubs : Streamlined management for connected devices.
• Data Centers : Reliable switching and routing with PoE++ support.
• Accessories SFP+ Module
• SFP+ to RJ45 Adapter
• US version UDW-US
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UDW
• Product Type: Routers and Switches
• WiFi 6 Access Point : Enterprise-grade 4x4 MIMO for superior performance.
• Full UniFi OS : Manages all UniFi applications, including networking, security, and IoT devices.
• High-Speed Networking : (1) 10G SFP+ WAN and LAN ports.
• (17) GbE RJ45 LAN ports, including: (4) PoE++ ports (60W max per port).
• (4) PoE+ ports (30W max per port).
• (4) PoE ports (15.4W max per port).
• (1) 2.5 GbE RJ45 WAN port.
• Advanced Touchscreen Management : A 4.7' LCM touchscreen for intuitive configuration and monitoring.
• Storage : Integrated 128 GB SSD.
• Pre-installed 512 GB microSD card with expansion capabilities.
• Robust Power : Supports 532W max power consumption.
• Dual hot-swappable AC/DC 550W power supplies.
• Enterprise Environments : High-performance networking for offices or campuses.
• Smart Home Hubs : Streamlined management for connected devices.
• Data Centers : Reliable switching and routing with PoE++ support.
• Accessories SFP+ Module
• SFP+ to RJ45 Adapter
• US version UDW-US
• Mechanical : Dimensions : 549 x 342 x 62 mm (21.6 x 13.5 x 2.4').
• Weight : 8.6 kg (19 lbs).
• Materials : Polycarbonate, galvanized steel, and aluminum alloy.
• Mounting : Wall mount included.
• Hardware : Processor: Quad-core ARM Cortex-A57 at 1.7 GHz.
• System Memory: 4 GB DDR4.
• Networking Interfaces: (17) GbE RJ45 LAN ports.
• (1) 10G SFP+ LAN and WAN ports.
• (1) 2.5GbE RJ45 WAN port.
• WiFi Throughput: 2.4 GHz: 300 Mbps.
• 5 GHz: 2.4 Gbps.
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | UDW (Dream Wall, International Version) |
| Brand | Ubiquiti |
| Description | Wall-mountable UniFi Cloud Gateway with WiFi 6, routing, PoE switching, and UniFi OS support |
| Physical | |
| Dimensions | 549 x 342 x 62 mm (21.6 x 13.5 x 2.4 inches) |
| Weight | 8.6 kg (19 lbs) |
| Materials | Polycarbonate, galvanized steel, aluminum alloy |
| Mounting | Wall mount included |
| Power & Electrical | |
| Power Supply | Dual hot-swappable 550W AC/DC power supplies |
| Max Power Consumption | 532W |
| Wireless / RF | |
| WiFi Standard | 802.11a/b/g/n/ac/ax (WiFi 4/5/6) |
| MIMO Configuration | 4x4 MIMO |
| 2.4 GHz Throughput | 300 Mbps |
| 2.4 GHz Antenna Gain | 5.9 dBi |
| 5 GHz Throughput | 2.4 Gbps |
| 5 GHz Antenna Gain | 6 dBi |
| Networking & Connectivity | |
| Processor | Quad-core ARM Cortex-A57 at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| 10G SFP+ Ports | 2 (LAN and WAN) |
| 2.5 GbE RJ45 WAN Ports | 1 |
| GbE RJ45 LAN Ports | 17 total |
| PoE++ ports | 4 (60W max per port) |
| PoE+ ports | 4 (30W max per port) |
| PoE ports | 4 (15.4W max per port) |
| Internal Storage | 128 GB SSD |
| microSD Card | 512 GB (pre-installed, expandable) |
| Touchscreen | 4.7 inch LCM |
| Environmental | |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Humidity | 5–95% non-condensing |
| Compatibility | |
| US Version | UDW-US |
| Compatible Accessories | SFP+ Module, SFP+ to RJ45 Adapter |
