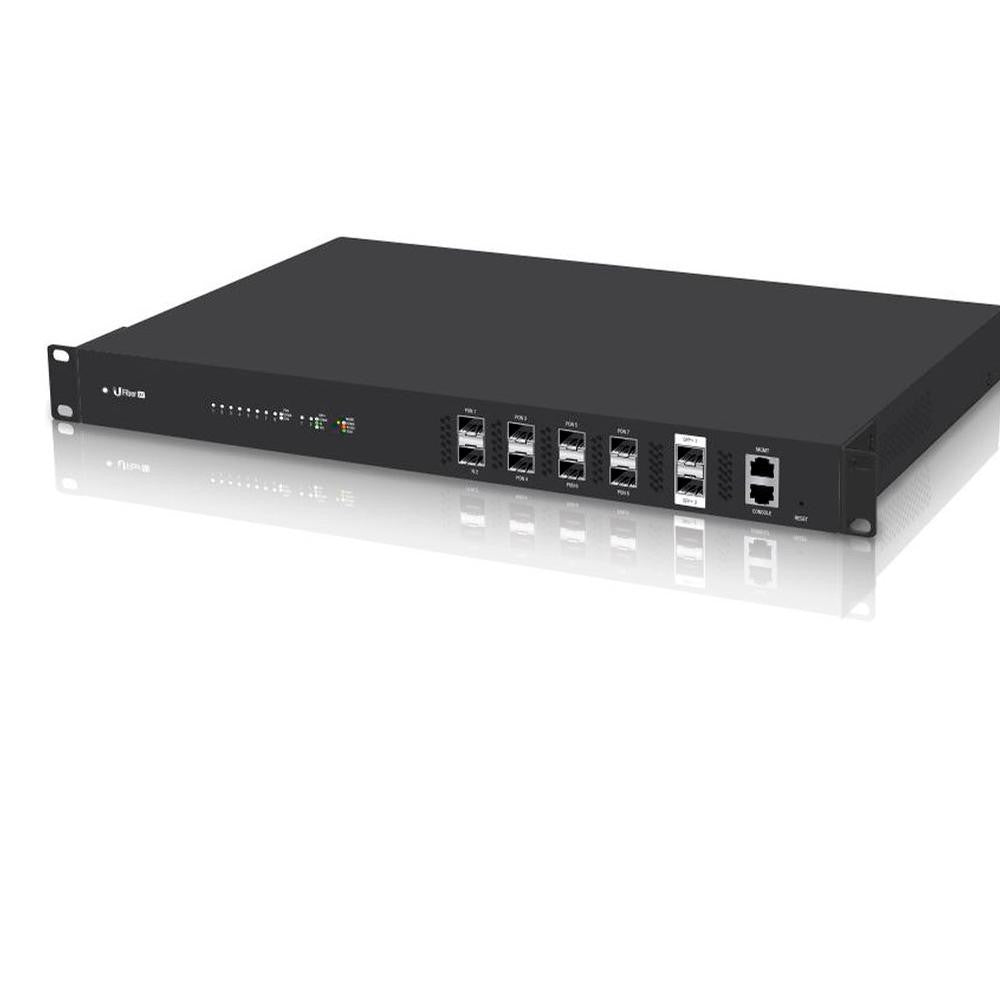

Ubiquiti UF-OLT 8-Port GPON Optical Line Terminal 2.488 Gbps SFP+
- EhubAmerica SKU
- UF-OLT
- 1U rack-mountable, wall-mountable, or desktop
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
UISP-ready optical line terminal with (8) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.
PRODUCT TYPE
Transceivers
KEY FEATURES
• 8 Gigabit Passive Optical Network Ports
• Supports up to 1024 Clients (128 per PON Port)
• Up to 2.488 Gbps TX and 1.244 Gbps RX
• Two 1G/10G SFP+ Ethernet Ports
• Flexible Layer 2/3 Management Features
• Fast Ethernet port for management
• Console serial port for management
• Mechanical Dimensions: 442.4 x 285.6 x 43.7 mm(17.42 x 11.24 x 1.72")
• Weight: Without Mount Brackets: 4.4 kg (9.70 lb)
• With Mount Brackets: 4.5 kg (9.91 lb)
• Hardware Processor: MIPS 1004Kc 880 MHz Dual-Core
• Data Ports Interfaces: (8) GPON Ports (2.488 Gbps TX/1.244 Gbps RX per Port)
• (2) 1G/10G SFP+ Ports
• Serial Console Port Interfaces: (1) RJ45 Ethernet Port
• (1) RJ45 Serial Port
• Max. Power Consumption: 40W (Excluding SFP Transceivers)
• Power Method: 110 - 240VAC Modular PSU
• Power Supply: (1) Hot-Swappable AC/DC 100W PSU (Included)
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UF-OLT
• Product Type: Transceivers
• 8 Gigabit Passive Optical Network Ports
• Supports up to 1024 Clients (128 per PON Port)
• Up to 2.488 Gbps TX and 1.244 Gbps RX
• Two 1G/10G SFP+ Ethernet Ports
• Flexible Layer 2/3 Management Features
• Fast Ethernet port for management
• Console serial port for management
• Mechanical Dimensions: 442.4 x 285.6 x 43.7 mm(17.42 x 11.24 x 1.72")
• Weight: Without Mount Brackets: 4.4 kg (9.70 lb)
• With Mount Brackets: 4.5 kg (9.91 lb)
• Hardware Processor: MIPS 1004Kc 880 MHz Dual-Core
• Data Ports Interfaces: (8) GPON Ports (2.488 Gbps TX/1.244 Gbps RX per Port)
• (2) 1G/10G SFP+ Ports
• Serial Console Port Interfaces: (1) RJ45 Ethernet Port
• (1) RJ45 Serial Port
• Max. Power Consumption: 40W (Excluding SFP Transceivers)
• Power Method: 110 - 240VAC Modular PSU
• Power Supply: (1) Hot-Swappable AC/DC 100W PSU (Included)
• Supported Voltage Range: AC Input: 100 to 240VAC
• Button: Reset
• System Memory: 512 MB DDR3, 512 MB NAND
• LEDs System: Status
• PON Data Ports: Link/Activity
• SFP+ Data Ports: Link/ActivityLink/Activity
• RJ45 (MGMT) Port: Link/Activity
• GPON SFP OLT Transceiver (UF-GP-B+ ): Single Fiber, SM SC/UPC, 20 km, 1490 nm TX/1310 nm RX, ITU-T G984.2 Class B+
• Rackmount: Yes
• Operating Temperature: -10 to 45° C (14 to 113° F)
• Operating Humidity: 10 - 90% Noncondensing
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model/Part Number | UF-OLT |
| Product Type | 8-Port GPON Optical Line Terminal |
| Management Interface | UFiber UI, UISP |
| Physical | |
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight (without mount brackets) | 4.4 kg (9.70 lb) |
| Weight (with mount brackets) | 4.5 kg (9.91 lb) |
| Rackmount | Yes (1U) |
| Form Factor | 1U rack-mountable, wall-mountable, or desktop |
| Power & Electrical | |
| Power Supply | Hot-swappable AC/DC 100W PSU (included) |
| Input Voltage | 100 to 240 VAC |
| Max Power Consumption | 40W (excluding SFP transceivers) |
| Networking & Connectivity | |
| Data Ports | (8) GPON Ports @ 2.488 Gbps TX / 1.244 Gbps RX per port |
| SFP+ Uplink Ports | (2) 1G/10G SFP+ ports |
| Management Port | (1) RJ45 Gigabit Ethernet port |
| Serial Console Port | (1) RJ45 serial port |
| Max Supported Clients | 1024 (128 per GPON port) |
| Max Physical Link Distance | 20 km per GPON port |
| Processor | MIPS 1004Kc 880 MHz Dual-Core |
| System Memory | 512 MB DDR3, 512 MB NAND |
| GPON SFP Transceiver (UF-GP-B+) | Single fiber, SM SC/UPC, 20 km, 1490 nm TX / 1310 nm RX, ITU-T G984.2 Class B+ |
| Switching Capability | Layer 2/3 |
| Environmental | |
| Operating Temperature | -10 to 45°C (14 to 113°F) |
| Operating Humidity | 10–90% noncondensing |
| Certifications | CE, FCC, IC |
