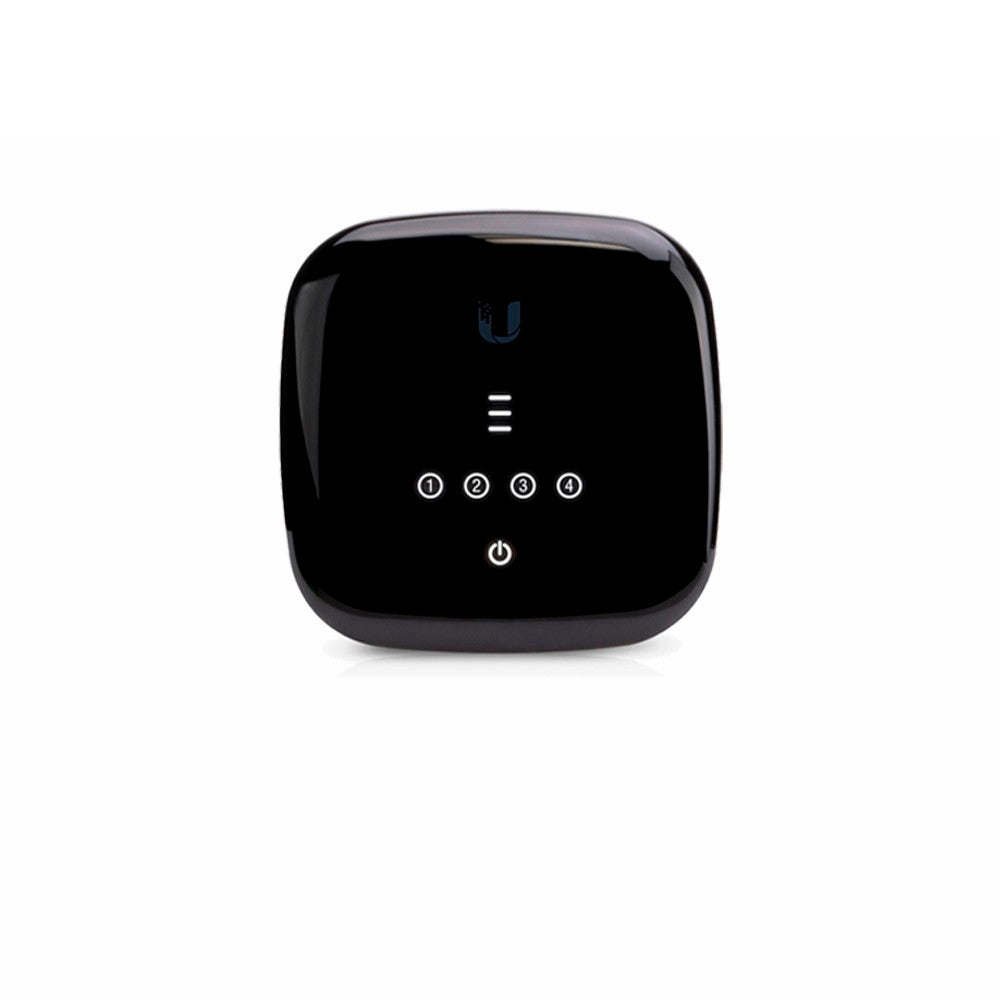

Ubiquiti UF-WiFi-US GPON WiFi CPE 2.4Gbps Optical Router
- EhubAmerica SKU
- UF-WiFi-US
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
GPON customer-premises equipment (CPE) with a built-in WiFi router.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Establishes links up to 20 km
• Supported speeds: 2.4 Gbps (uplink) / 1.2 Gbps (downlink)

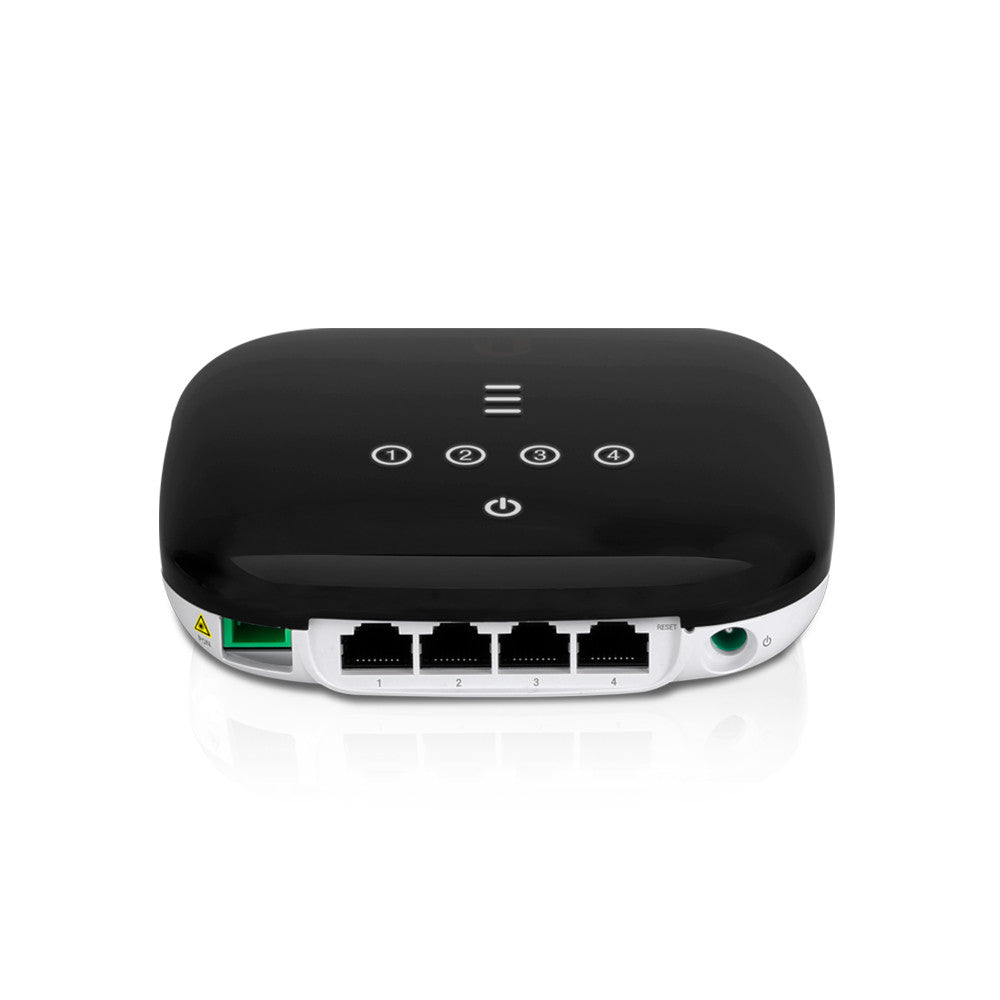

• (1) GPON WAN port with an SC/APC optical connector
• (4) GbE RJ45 LAN ports
• Powered AC/DC adapter, 100–240V AC, 50/60Hz, 24V/0.5A or 24V passive PoE
• International version UF-WiFi
• Mechanical Dimensions: 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25')
• Weight: 190 g (6.70 oz)
• Hardware
• Networking Interfaces: (1) SC/APC, GPON WAN
• (4) Gigabit RJ45, Ethernet LAN
• WiFi 802.11n
• Networking Interface Speeds GPON WAN, ITU G.984: 2.4 Gbps Down, 1.2 Gbps Up
• LAN: 10/100/1000 Mbps
• WiFi: 300 Mbps
• Management Interface: In-Band Ethernet
• PON
• Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UF-WiFi-US
• Product Type: Wireless Access Points
• Establishes links up to 20 km
• Supported speeds: 2.4 Gbps (uplink) / 1.2 Gbps (downlink)
• (1) GPON WAN port with an SC/APC optical connector
• (4) GbE RJ45 LAN ports
• Powered AC/DC adapter, 100–240V AC, 50/60Hz, 24V/0.5A or 24V passive PoE
• International version UF-WiFi
• Mechanical Dimensions: 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25')
• Weight: 190 g (6.70 oz)
• Hardware
• Networking Interfaces: (1) SC/APC, GPON WAN
• (4) Gigabit RJ45, Ethernet LAN
• WiFi 802.11n
• Networking Interface Speeds GPON WAN, ITU G.984: 2.4 Gbps Down, 1.2 Gbps Up
• LAN: 10/100/1000 Mbps
• WiFi: 300 Mbps
• Management Interface: In-Band Ethernet
• PON
• Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm
• RX: -28 to -8 dBm
• Power Method: DC Jack, 24VDC
• 24V Passive PoE (Pins 4, 5+; 7, 8-)
• Power Supply: 100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A
• Max. Power Consumption: 7W
• Supported Voltage Range: 10–30V DC (Passive PoE)
• 5V DC (Adapter)
• Processor Specs: MIPS, 900 MHz
• Memory Information: 256 MB DDR
• Button: (1) Reset
• Operating Temperature: -10 to 45° C (14 to 113° F)
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product Type | GPON customer-premises equipment (CPE) with built-in WiFi router |
| Model | UF-WiFi-US |
| Brand | Ubiquiti |
| Physical | |
| Dimensions | 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25 in) |
| Weight | 190 g (6.70 oz) |
| Power & Electrical | |
| Power Supply | 100–240V AC, 50–60 Hz, 24V/0.5A |
| Power Input Methods | DC Jack (24V DC) or 24V Passive PoE (Pins 4, 5+; 7, 8−) |
| Supported Voltage Range | 10–30V DC (Passive PoE); 5V DC (Adapter) |
| Max Power Consumption | 7W |
| Wireless / RF | |
| WiFi Standard | 802.11n |
| WiFi Speed | 300 Mbps |
| Optical Power TX (Class B+) | 1.5 to 5 dBm |
| Optical Power RX | −28 to −8 dBm |
| Maximum Link Distance | 20 km |
| Networking & Connectivity | |
| GPON WAN Port | (1) SC/APC optical connector, ITU G.984 |
| GPON Speeds | 2.4 Gbps (downlink) / 1.2 Gbps (uplink) |
| Gigabit Ethernet Ports | (4) RJ45 LAN ports, 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet, PON |
| Environmental | |
| Operating Temperature | −10 to 45°C (14 to 113°F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Compatibility | |
| Compatible OLT | UFiber OLT only (not compatible with third-party OLTs) |
| International Version | UF-WiFi |
| General | |
| Processor | MIPS, 900 MHz |
| Memory | 256 MB DDR |
| Reset Button | (1) |
| Certifications | CE, FCC, IC |
