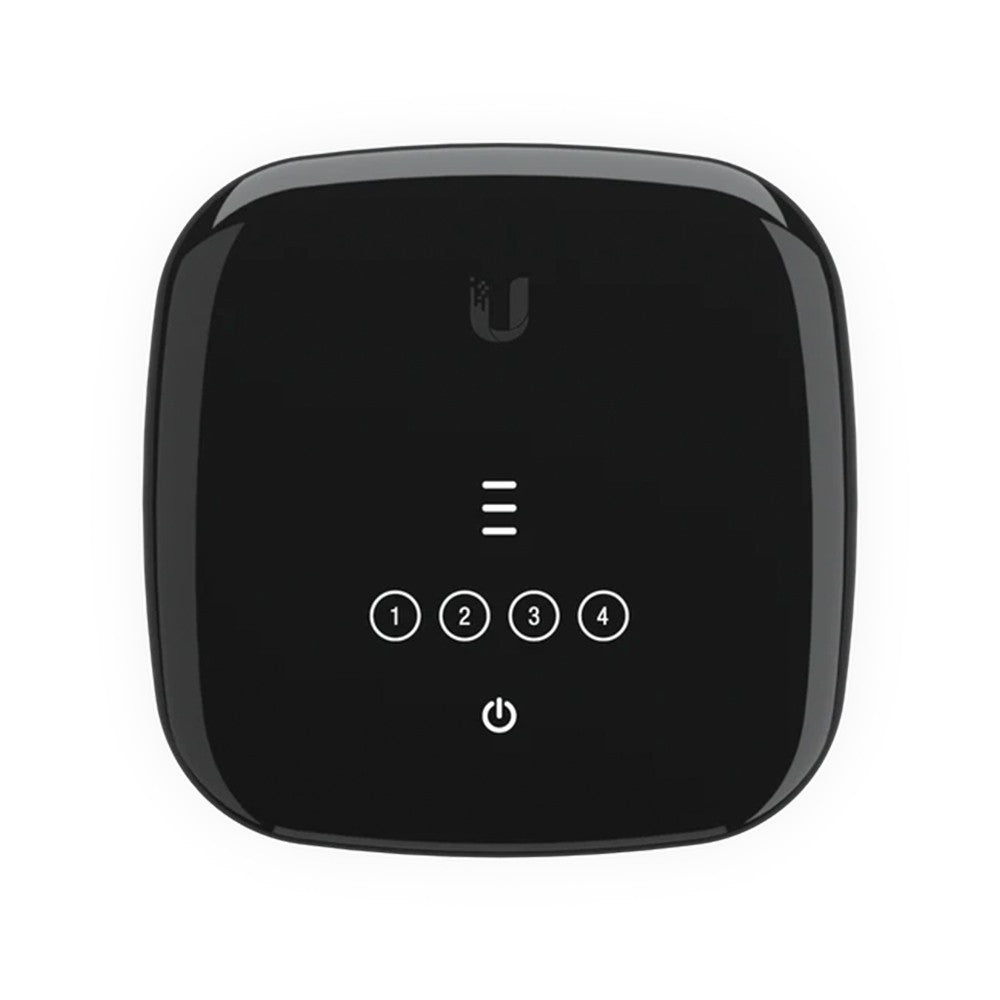

Ubiquiti UF-WiFi6-US WiFi6 GPON CPE 1.5Gbps Dual-Band Access Point
- EhubAmerica SKU
- UF-WiFi6-US
- USB-C 5VDC 3A, or 24V passive PoE 0.5A
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
GPON customer-premises equipment (CPE) with WiFi6 support.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Establishes links up to 20 km
• Supported speeds: 2.4 Gbps (uplink) / 1.2 Gbps (downlink)
• Dual-band WiFi with a 1.5 Gbps aggregate throughput rate

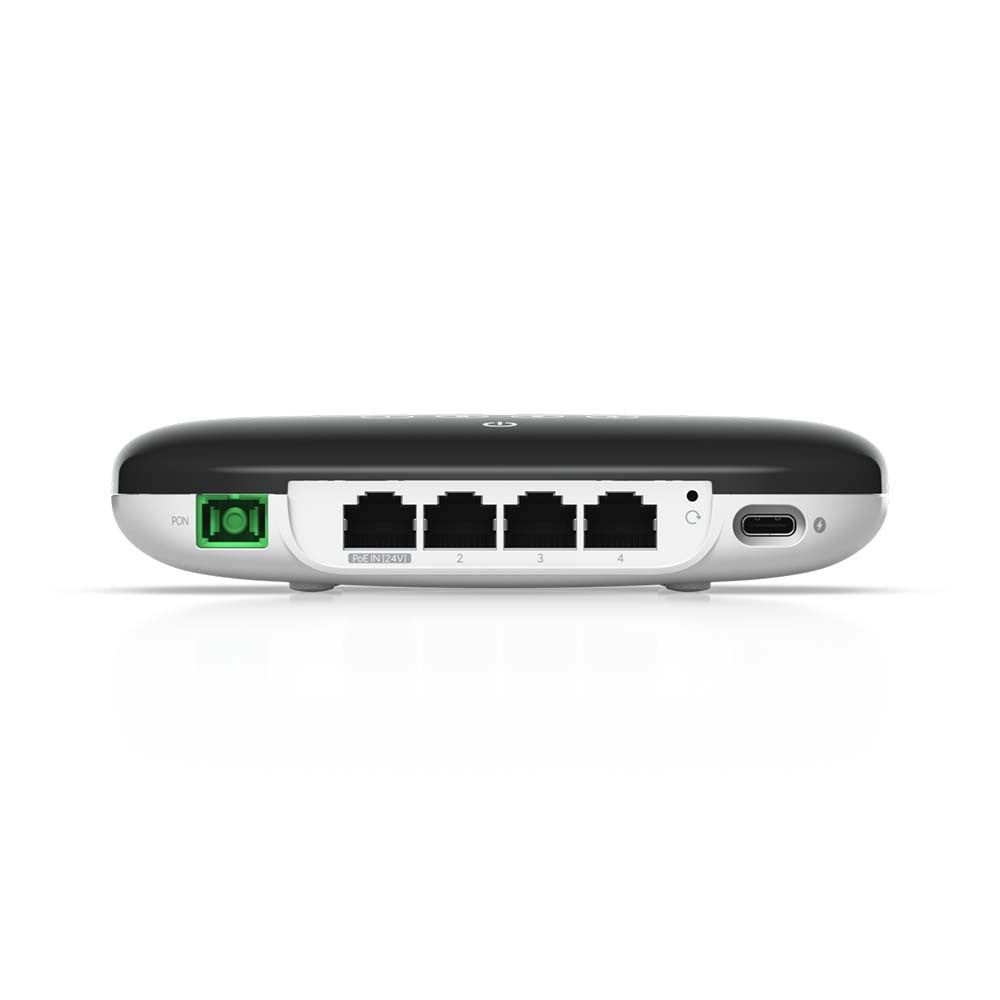

• (1) GPON WAN port with an SC/APC optical connector
• (4) GbE RJ45 LAN ports
• International version UF-WiFi6
• Mechanical Dimensions: 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25")
• Weight: 415 g (0.99 lb)
• Enclosure material: UV-stabilized polycarbonate
• Hardware Processor: Dual-core MIPS 1004 Kc at 900 MHz
• Memory: 256 MB RAM
• Total non-blocking line rate: 2.488 Gbps downstream
• 1.244 Gbps upstream
• Networking interfaces: (1) SC/APC, ITU-G.984 GPON WAN port
• WiFi 802.11ax 5/2.4 GHz channels
• PoE interface: (1) PoE in, 24V passive PoE
• Management interface: Ethernet in-band
• PON
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UF-WiFi6-US
• Product Type: Wireless Access Points
• Establishes links up to 20 km
• Supported speeds: 2.4 Gbps (uplink) / 1.2 Gbps (downlink)
• Dual-band WiFi with a 1.5 Gbps aggregate throughput rate
• (1) GPON WAN port with an SC/APC optical connector
• (4) GbE RJ45 LAN ports
• International version UF-WiFi6
• Mechanical Dimensions: 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25")
• Weight: 415 g (0.99 lb)
• Enclosure material: UV-stabilized polycarbonate
• Hardware Processor: Dual-core MIPS 1004 Kc at 900 MHz
• Memory: 256 MB RAM
• Total non-blocking line rate: 2.488 Gbps downstream
• 1.244 Gbps upstream
• Networking interfaces: (1) SC/APC, ITU-G.984 GPON WAN port
• WiFi 802.11ax 5/2.4 GHz channels
• PoE interface: (1) PoE in, 24V passive PoE
• Management interface: Ethernet in-band
• PON
• Button: Factory-reset
• Max. power consumption: 11W
• Power method: USB-C 5VDC, 3A
• 24V passive PoE, 0.5A
• Power supply: 5VDC, 3A power adapter, 1.5 m cord (included)
• Passive PoE 2-pair (4, 5+; 7, 8-)
• Supported voltage range: 10 to 30VDC passive PoE 5VDC adapter
• Normal TX range of optical module: 0.5 to 5 dBm
• Normal RX range of optical module: -8 to -28 dBm
• Max. WiFi TX power 2.4 Ghz: 20 dBm
• 5 Ghz: 20 dBm
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product Type | GPON customer-premises equipment (CPE) with WiFi 6 support |
| Model | UF-WiFi6-US |
| Supported Speeds | 2.4 Gbps uplink / 1.2 Gbps downlink |
| Physical | |
| Dimensions | 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25") |
| Weight | 415 g (0.99 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Power & Electrical | |
| Max. Power Consumption | 11W |
| Power Method | USB-C 5VDC 3A, or 24V passive PoE 0.5A |
| Power Supply Included | 5VDC 3A power adapter with 1.5 m cord |
| Passive PoE | 2-pair (4, 5+; 7, 8-) |
| Supported Voltage Range | 10 to 30VDC passive PoE, 5VDC adapter |
| Wireless / RF | |
| WiFi Standard | 802.11ax dual-band (5 GHz / 2.4 GHz) |
| WiFi Aggregate Throughput | 1.5 Gbps |
| WiFi TX Power (2.4 GHz) | 20 dBm |
| WiFi TX Power (5 GHz) | 20 dBm |
| WiFi Radio Rate (2.4 GHz) | 300 Mbps |
| WiFi Radio Rate (5 GHz) | 1.2 Gbps |
| MIMO (2.4 GHz) | 2 x 2 |
| MIMO (5 GHz) | 2 x 2 |
| Antenna Gain (2.4 GHz) | 1 dBi |
| Antenna Gain (5 GHz) | 3 dBi |
| Optical TX Range | 0.5 to 5 dBm |
| Optical RX Range | -8 to -28 dBm |
| Networking & Connectivity | |
| (1) GPON WAN Port | SC/APC optical connector, ITU-G.984 |
| (4) GbE LAN Ports | RJ45 |
| (1) PoE Input | 24V passive PoE |
| Total Non-blocking Line Rate (Downstream) | 2.488 Gbps |
| Total Non-blocking Line Rate (Upstream) | 1.244 Gbps |
| Processor | Dual-core MIPS 1004 Kc at 900 MHz |
| Memory | 256 MB RAM |
| Management Interface | Ethernet in-band, PON |
