Ubiquiti · Routers and Switches

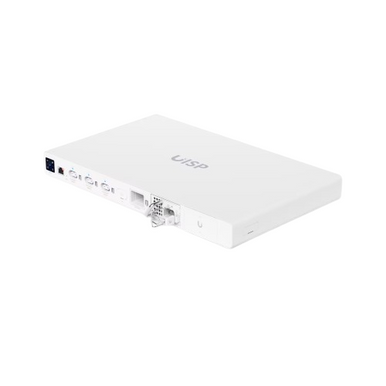

Ubiquiti UISP-P-PRO 8-Port Gigabit PoE Switch 110W
- EhubAmerica SKU
- UISP-P-PRO
- (8) 10/100/1000 MbE RJ45 ports, (1) 1G SFP port
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti UISP Power Pro power system with three 27V DC Power TransPort ports, dual AC inputs, battery backup input, LTE Cat M1 SMS notification capability, and support for compatible UISP devices.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Three Power TransPort ports with up to 250W at 27V DC output per port
• 240W total 27V DC output with one PSU
• Supports up to 480W total 27V DC output with two PSUs
• Two universal 100–240V AC inputs
• One PSU included; additional PSU module sold separately
• 24V DC lead-acid battery backup input
• 1.3" touchscreen LCM display
• Ethernet in-band and Bluetooth management
• Integrated LTE Cat M1 functionality
• Nano-SIM interface
• SMS notification capability with compatible Cat M1 SMS provider and nano-SIM
• External LTE antenna included
• Compatible with specified UISP Console, Router, Router Pro, Switch, and Switch Pro configurations
TECHNICAL SPECIFICATIONS
• Model: UISP-P-Pro
• Product: UISP Power Pro
• Dimensions: 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
• Weight: 4.16 kg (9.2 lb)
• Enclosure Materials: SGCC steel, polycarbonate/ABS
• Networking Interface: (1) 10/100 MbE RJ45 LAN port
• Management Interfaces: Ethernet in-band and Bluetooth
• Power TransPort Interfaces: (3)
• Maximum Power TransPort Output Per Port: Up to 250W at 27V DC
• Total Output With 1 PSU: 240W at 27V DC
• Total Output With 2 PSUs: 480W at 27V DC
• Primary Power: (2) universal AC inputs, 100–240V AC, 3.5A maximum, 50/60Hz
• Included Power Supply: (1) PSU
• Backup Power Input: (1) 24V DC, 20.83A lead-acid battery input
• Backup Battery: Not included
• Supported Voltage Range: 100–240V AC
• Maximum Power Consumption: 3W, excluding Power TransPort output and battery charger
• ESD/EMP Protection: Air ±15 kV; Contact ±8 kV
• Display: 1.3" touchscreen LCM
• Operating Temperature: -10 to 50°C (14 to 122°F)
• Operating Humidity: 5–95% non-condensing
• Certifications: CE, FCC, IC, PTCRB, AT&T
• LTE Antenna: External, included
• SIM: Nano-SIM
• LTE Category: Cat M1
• US/Canada LTE Bands: FDD-LTE Bands 2, 4, 12, 13
• US LTE Status: AT&T Network-Ready
• Notification Type: SMS; requires nano-SIM card from a Cat M1 SMS provider
• LTE Input Rating: 5V DC, 0.5A
• Supported Models: UISP Console; UISP Router installed with UISP Box; UISP Router Pro; UISP Switch installed with UISP Box; UISP Switch Pro
• Backup battery connection is specified for lead-acid batteries only by the manufacturer
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | UISP Switch (UISP-S) |
| SKU | UISP-P-PRO |
| Application | Gigabit PoE Switch for MicroPoP/WISP deployments |
| Physical | |
| Ports | (8) 10/100/1000 MbE RJ45 ports, (1) 1G SFP port |
| Wall-mountable | Yes (kit included) |
| Cooling | Fanless, thermal cooling |
| Power & Electrical | |
| Power Supply | 27VDC, 4.4A AC/DC adapter (included) |
| Supported Voltage Range | 24 - 28VDC |
| Max. Power Consumption | 8W (excludes PoE output) |
| Total PoE Supply | 110W |
| PoE Interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Max. PoE Wattage per Port | 30W/27VDC |
| PoE Voltage | 27VDC |
| ESD/EMP Protection | Air: ±15 kV, Contact: ±8 kV |
| Networking & Connectivity | |
| Non-blocking Throughput | 9 Gbps |
| Switching Capacity | 18 Gbps |
| Forwarding Rate | 13.392 Mpps |
| Management Interface | Ethernet in-band, Bluetooth BLE |
| Layer 2 Switching | Yes |
| Environmental | |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
