Ubiquiti UNVR 4-Bay 10G Network Video Recorder 15x4K/50xFHD
- EhubAmerica SKU
- UNVR
- AC/DC, internal, 120W
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

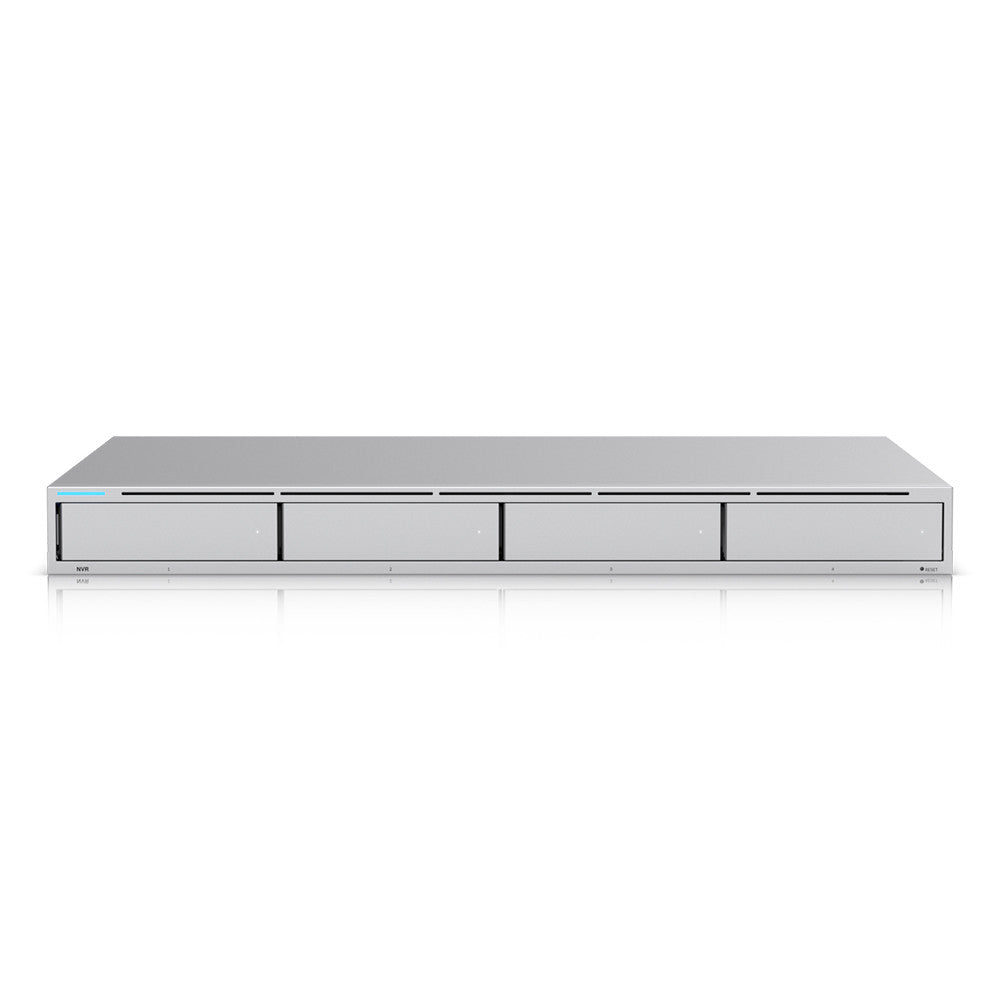

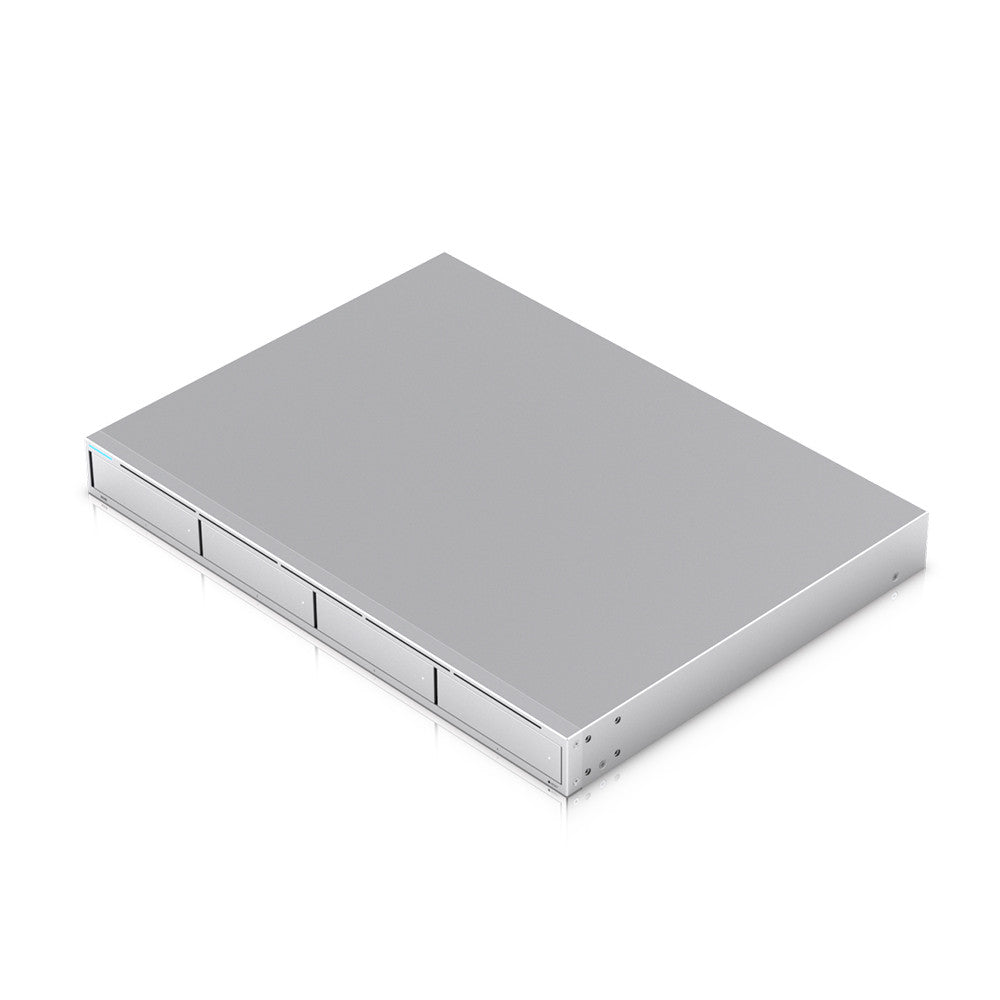

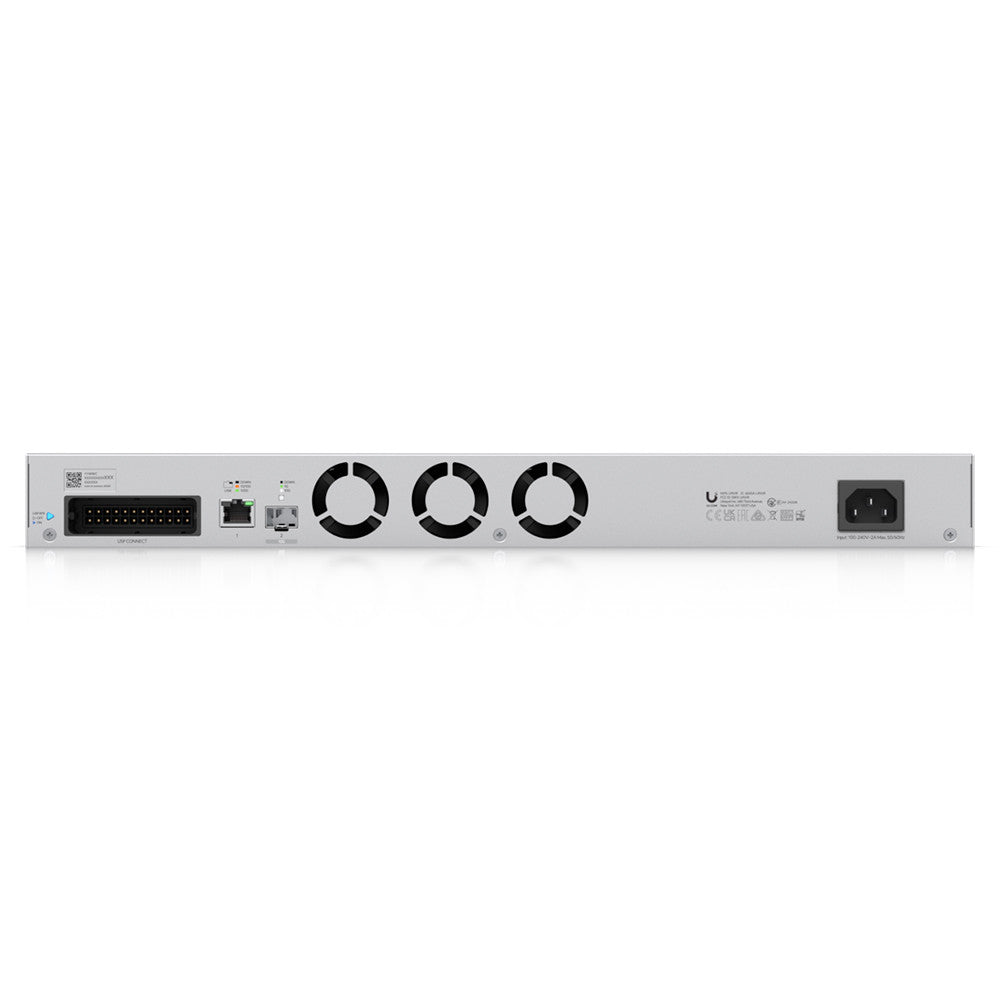

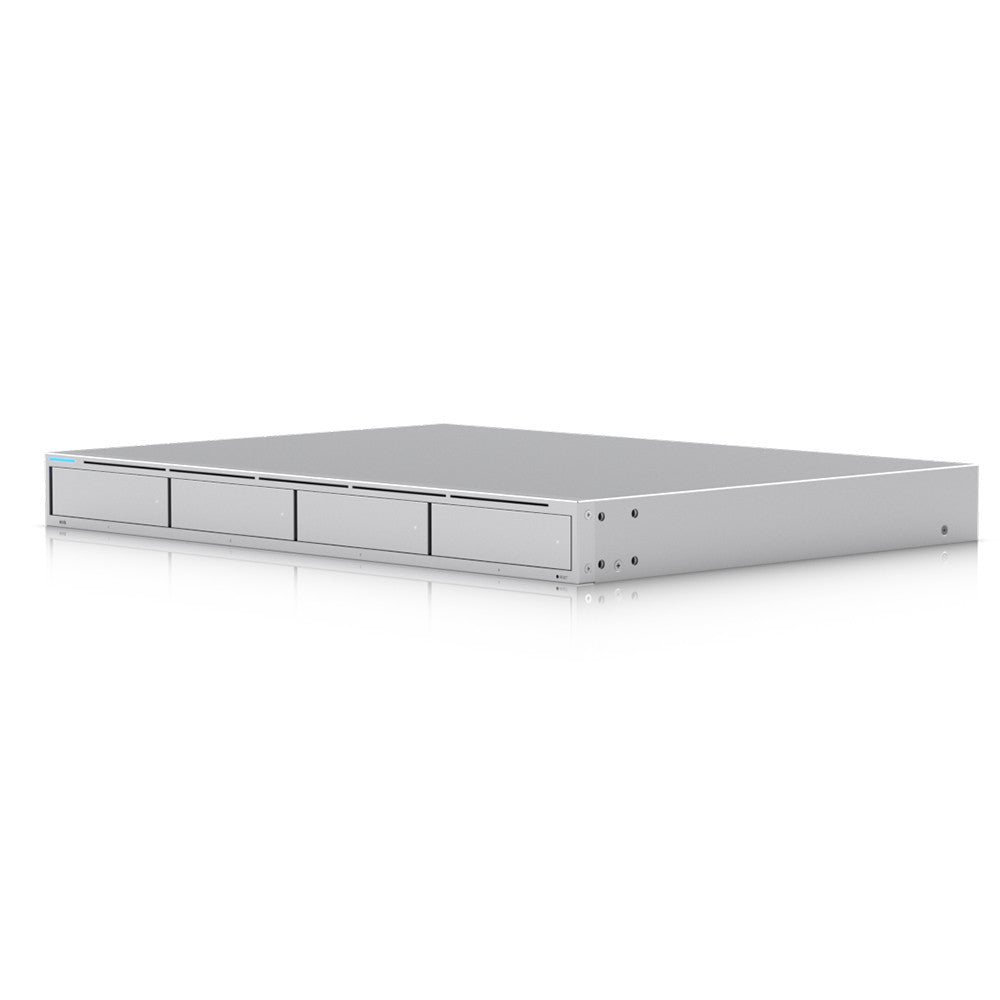

A UniFi UNVR video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (15) 4K cameras or (50) Full HD cameras.
PRODUCT TYPE
IP Camera
KEY FEATURES
• (4) 2.5"/3.5" Drive bays
• (1) 10G SFP+ port
• (1) Gigabit RJ45 port
• 1U rackmountable (kit included)
• Plug and Play UniFi Protect system with NVR
• Automated secure RAID 1 or RAID 5 configuration
• Supports USP-RPS for PSU failover
• Mechanical Dimensions: 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
• Weight: Without mounting brackets: 5.1 kg (11.3 lb)
• With mounting brackets: 5.2 kg (11.5 lb)
• Enclosure material: SGCC steel
• Mount material: SGCC steel
• Hardware Management interface: Ethernet In-Band
• Networking interface: (1) GbE RJ45 port
• (1) 1/10 GbE SFP+ port
• Power method: (1) Universal AC input, 100-240V AC, 2A Max., 50/60 Hz
• (1) USP-RPS DC input, 11.5V DC, 10.43A
• Power supply: AC/DC, internal, 120W
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UNVR
• Product Type: IP Camera
• (4) 2.5"/3.5" Drive bays
• (1) 10G SFP+ port
• (1) Gigabit RJ45 port
• 1U rackmountable (kit included)
• Plug and Play UniFi Protect system with NVR
• Automated secure RAID 1 or RAID 5 configuration
• Supports USP-RPS for PSU failover
• Mechanical Dimensions: 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
• Weight: Without mounting brackets: 5.1 kg (11.3 lb)
• With mounting brackets: 5.2 kg (11.5 lb)
• Enclosure material: SGCC steel
• Mount material: SGCC steel
• Hardware Management interface: Ethernet In-Band
• Networking interface: (1) GbE RJ45 port
• (1) 1/10 GbE SFP+ port
• Power method: (1) Universal AC input, 100-240V AC, 2A Max., 50/60 Hz
• (1) USP-RPS DC input, 11.5V DC, 10.43A
• Power supply: AC/DC, internal, 120W
• Supported voltage range: 100-240V AC
• Max. power consumption: 100W
• Max. power budget for Drives: 75W
• ESD/EMP protection: Air: ± 12kV, contact: ± 8kV
• Operating temperature: -5 to 40° C (23 to 104° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: FCC, CE, IC
• LEDs System: (1) Power: blue/white
• Flashing white: bootup in progress
• Flashing blue: firmware upgrading
• Steady white: factory defaults, awaiting adoption
INTENDED USE / APPLICATIONS
• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
Specifications
Technical specifications
| UNVR UniFi Protect Network Video Recorder – Technical Specifications | |
|---|---|
| General | |
| Model | UNVR |
| Brand | Ubiquiti |
| Product Type | Network Video Recorder (NVR) |
| Storage Capacity | Up to 30 days for 15x 4K cameras or 50x Full HD cameras |
| Drive Bays | (4) 2.5"/3.5" HDD bays |
| Physical | |
| Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7") |
| Weight (without brackets) | 5.1 kg (11.3 lb) |
| Weight (with brackets) | 5.2 kg (11.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Form Factor | 1U rackmountable (kit included) |
| Power & Electrical | |
| AC Input | 100-240V AC, 2A Max., 50/60 Hz |
| DC Input (USP-RPS) | 11.5V DC, 10.43A |
| Power Supply | AC/DC, internal, 120W |
| Supported Voltage Range | 100-240V AC |
| Max. Power Consumption | 100W |
| Max. Power Budget for Drives | 75W |
| ESD/EMP Protection | Air: ±12kV, Contact: ±8kV |
| Networking & Connectivity | |
| (1) Gigabit RJ45 port (GbE) | Ethernet in-band management |
| (1) 10G SFP+ port | 1/10 GbE |
| Environmental | |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| Certifications | FCC, CE, IC |
| Supports | USP-RPS for PSU failover, RAID 1 and RAID 5 configuration |
