Ubiquiti UNVR-Pro 20-Camera 4K NVR 7-Bay Rackmount

Ubiquiti · DVR / NVR

Ubiquiti UniFi Protect UNVR-Pro 7-Bay 2U Rackmount Network Video Recorder, 10G SFP+

Part number / SKU
UNVR-Pro
  • 7x 2.5/3.5 in drive bays, HDD or SSD

Works with: USP-RPS redundant power system, UniFi Protect cameras Confirmed by the manufacturer

$580.99

In stock

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

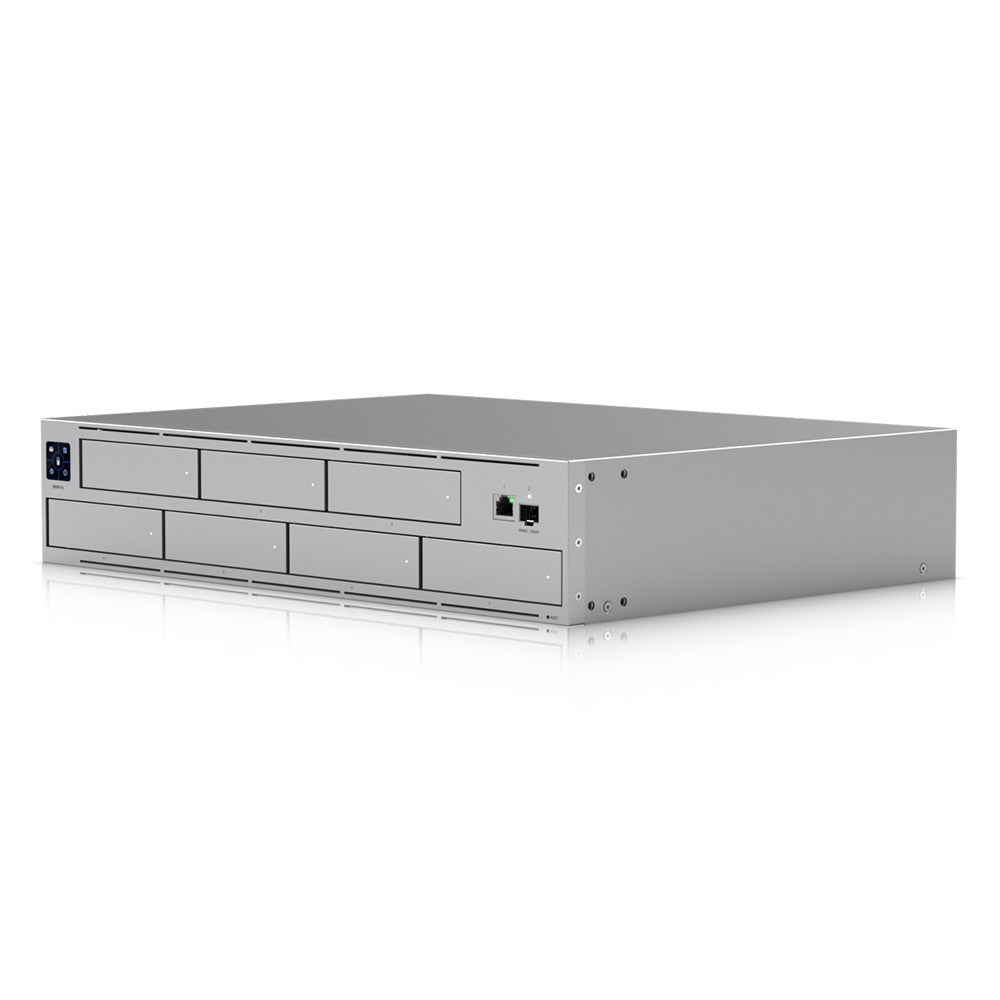

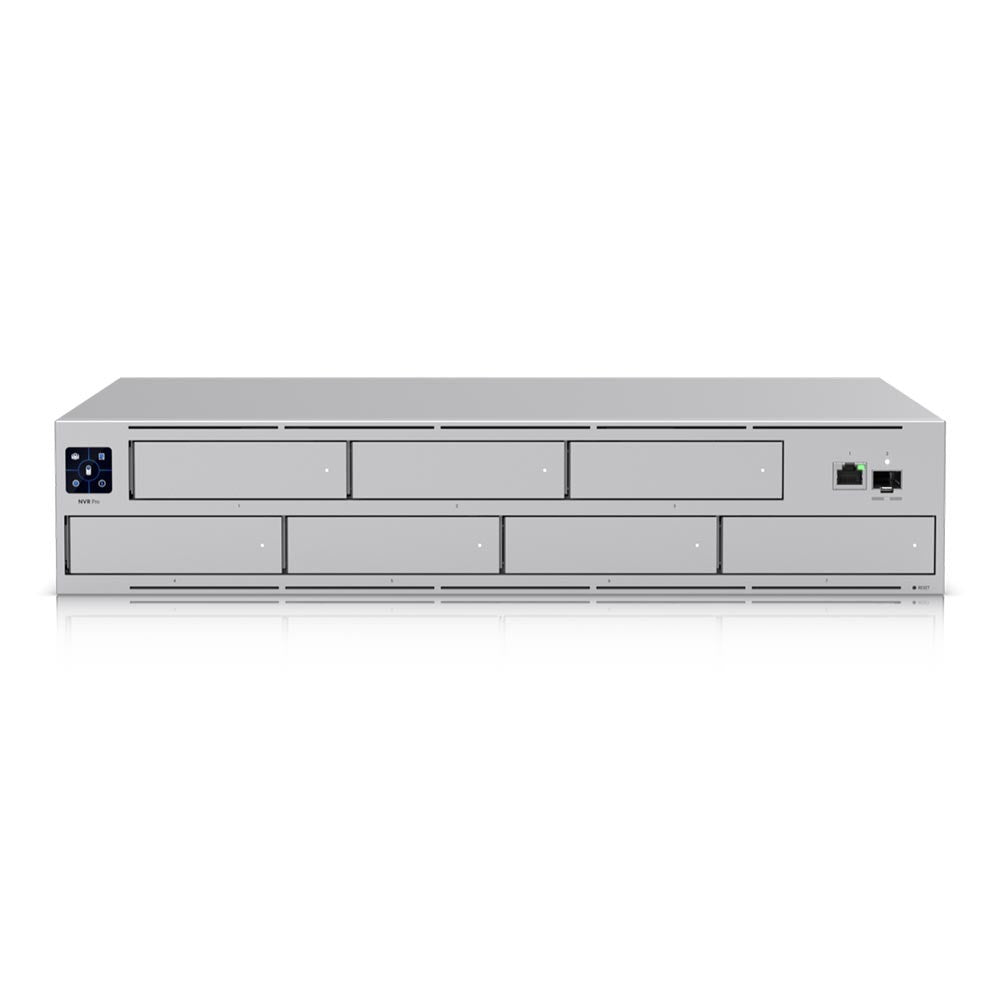

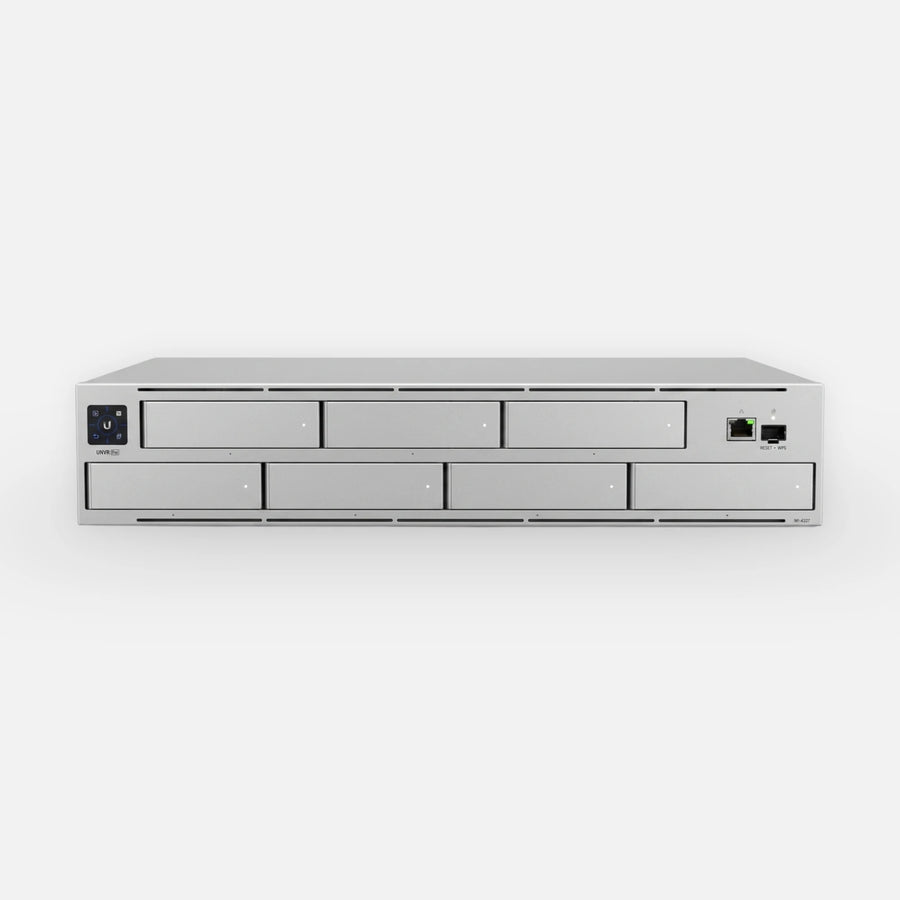

The Ubiquiti UniFi Protect Network Video Recorder Pro (UNVR-Pro) is a 2U rackmount recorder with seven drive bays and a 1.3 in touchscreen for UniFi Protect camera systems. A quad-core ARM Cortex-A57 processor at 1.7 GHz with 8 GB of memory runs the recorder, and Ubiquiti rates it for up to 70 HD, 35 2K or 24 4K cameras.

The seven bays accept 2.5 or 3.5 in HDDs or SSDs with a 135 W drive power budget. Network connections are one 10G SFP+ port and one GbE RJ45 port. An internal 200 W AC/DC supply takes 100 to 240 V AC, power redundancy is supported through a USP-RPS, and maximum consumption is 160 W.

  • Best for: larger UniFi Protect deployments that need seven bays of storage for up to 70 HD cameras.
  • System fit: UniFi Protect cameras; 10G SFP+ uplink; USP-RPS for redundant DC power.
  • Important to know: drives are not listed as included; camera capacity drops at higher resolutions (24 cameras at 4K).

Why teams choose it

Built for secure sites

  • Seven drive bays

    2.5 or 3.5 in HDD or SSD storage in a 2U chassis.

  • Camera capacity

    up to 70 HD, 35 2K or 24 4K cameras.

  • 10G uplink

    one 10G SFP+ port plus one GbE RJ45 port.

  • Front touchscreen

    1.3 in touchscreen for status at the rack.

Specifications

Technical specifications

General
Brand Ubiquiti
Model UniFi Protect Network Video Recorder Pro
Part Number UNVR-Pro
Device Type Network video recorder
Form Factor Rackmount 2U
Video
Camera Capacity 70 HD, 35 2K or 24 4K cameras
Storage 7x 2.5/3.5 in drive bays, HDD or SSD
Drive Power Budget 135 W
Interfaces
Ethernet Ports 1x GbE RJ45
SFP+ Ports 1x 10G SFP+
Display
Display 1.3 in touchscreen
Software and Management
Processor Quad-core ARM Cortex-A57, 1.7 GHz
Memory 8 GB
Management UniFi Protect
Power
Power Method Internal AC/DC, 200 W
AC Input 100 to 240 V AC, 3 A max, 50/60 Hz
DC Input USP-RPS, 11.5 V DC, 13.91 A
Max Power Consumption 160 W
Physical
Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4 in)
Weight 9.2 kg (20.3 lb) without brackets; 9.5 kg (20.8 lb) with brackets
Environmental
Operating Temperature -5 to 40 °C (23 to 104 °F)
Operating Humidity 5 to 95% noncondensing
Listings and Approvals
Certifications CE, FCC, IC, Anatel
NDAA NDAA compliant
