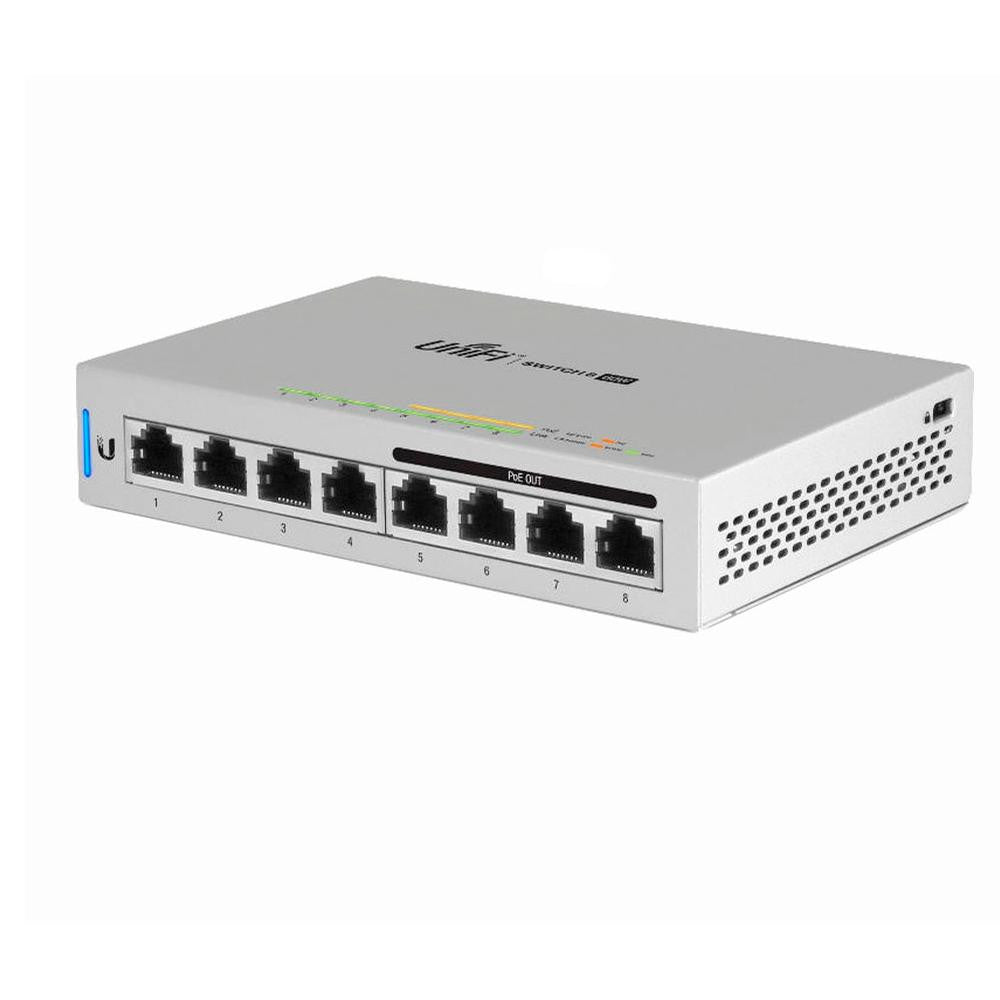

Ubiquiti US-8-60W 8-Port Gigabit PoE Managed Switch 16Gbps

PRODUCT OVERVIEW

Ubiquiti fully managed 8-port Gigabit switch with four auto-sensing IEEE 802.3af PoE ports, 8 Gbps non-blocking throughput, 16 Gbps switching capacity, and UniFi Controller management.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• (8) 10/100/1000 Mbps Gigabit RJ45 ports
• (4) Auto-sensing IEEE 802.3af PoE ports
• Up to 15.4 W PoE output per PoE port
• 8 Gbps total non-blocking throughput
• 16 Gbps switching capacity
• 11.9 Mpps forwarding rate
• Fully managed through the UniFi Controller
• Network and VLAN configuration
• Jumbo frame and flow control services
• Spanning tree configuration
• 802.1X control and RADIUS VLAN support
• Wall-mount or desktop placement
• Fanless design

TECHNICAL SPECIFICATIONS

• Manufacturer: Ubiquiti
• Model / Part Number: US-8-60W
• Networking Interfaces: (8) 10/100/1000 Mbps RJ45 ports
• PoE Interfaces: (4) IEEE 802.3af ports — Ports 5, 6, 7, and 8
• Maximum PoE Wattage Per Port: 15.4 W
• Total Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• Maximum Power Consumption: 12 W, excluding PoE output
• Power Method: 48VDC, maximum 2 A
• Supported Voltage Range: 44–57VDC
• Power Supply: External AC/DC adapter, 48V, 1.25 A
• Enclosure: SGCC steel
• Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
• Weight: 432 g (15.24 oz)
• Sound Level: 0.6 dBr, fanless
• ESD/EMP Protection: Air ±24 kV / Contact ±24 kV
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 5 to 95% noncondensing
• Shock and Vibration: ETSI300-019-1.4 Standard
• Certifications: CE, FCC, IC

INTENDED USE / APPLICATIONS

• Managed Gigabit Ethernet switching within UniFi networks
• Providing IEEE 802.3af PoE to compatible network devices
• Centralized configuration and monitoring through the UniFi Controller
• Wall-mounted or desktop network deployments
