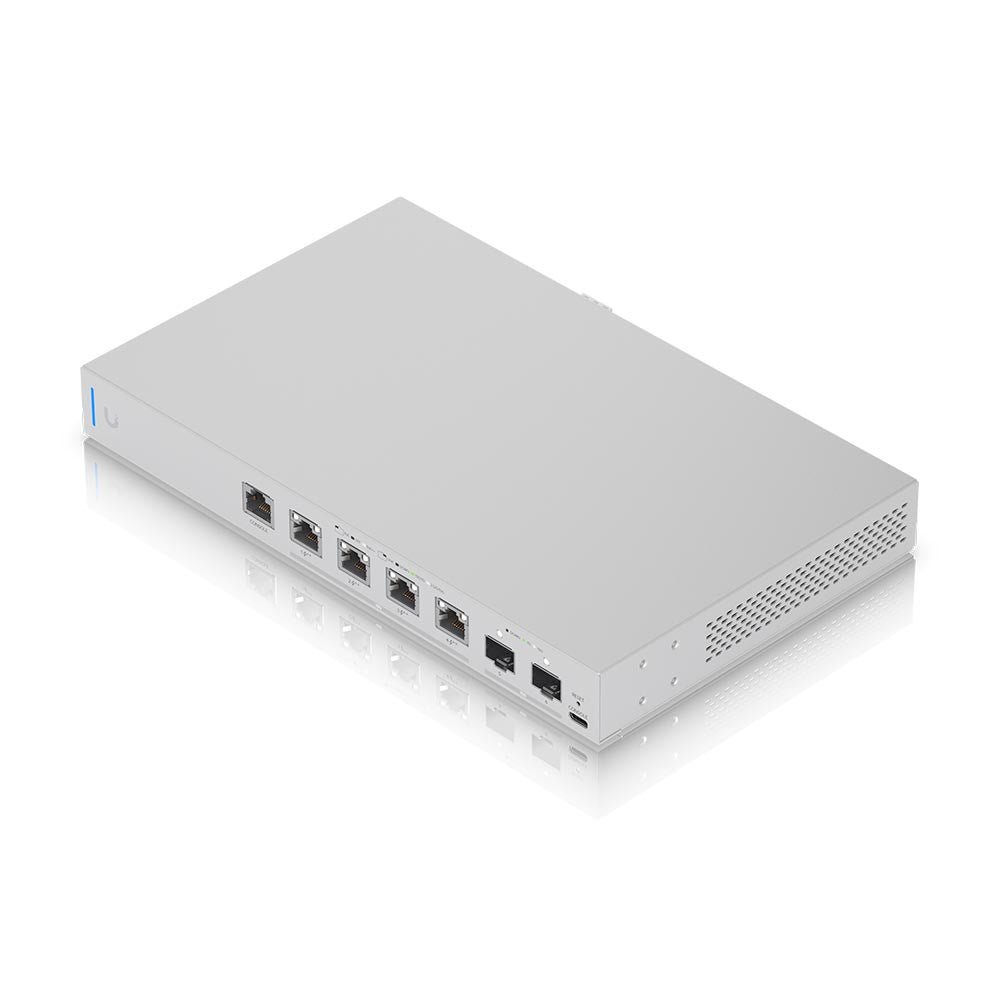

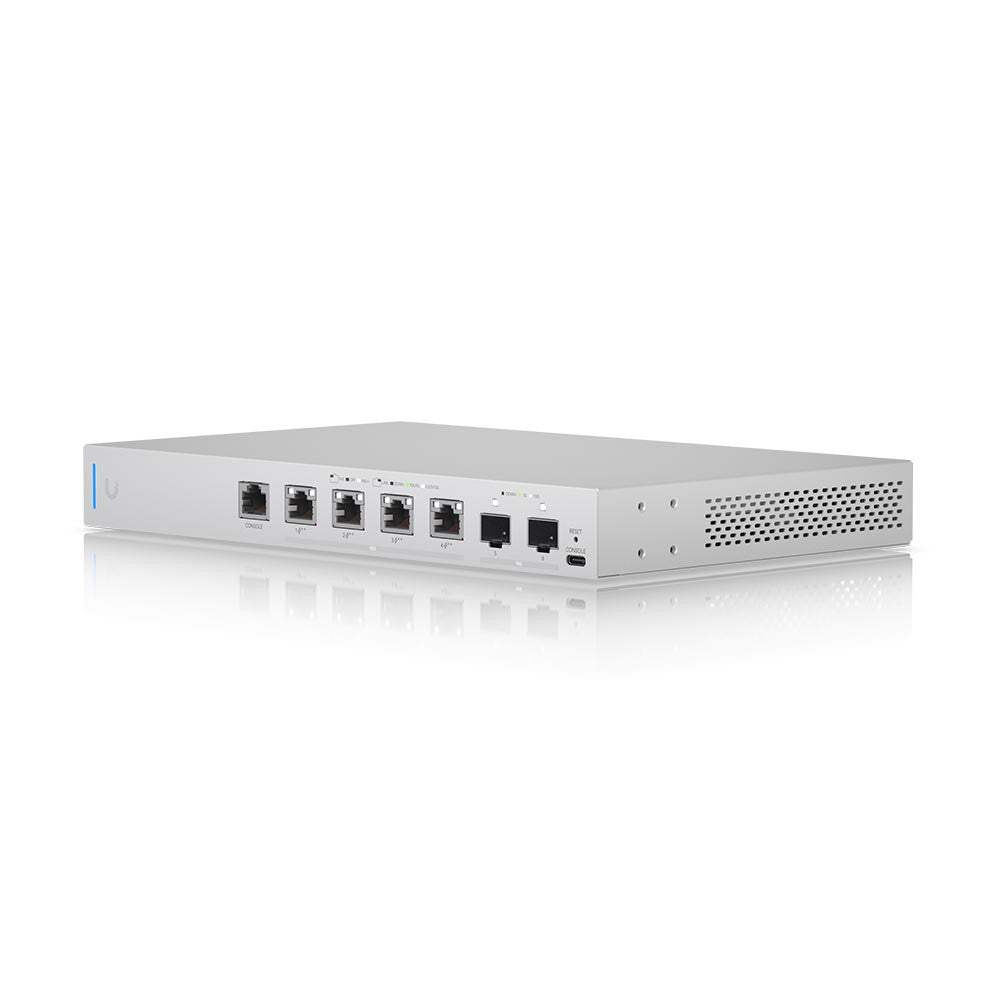

Ubiquiti US-XG-6POE 10G 6-Port PoE++ Managed Switch 802.3bt 60W

PRODUCT OVERVIEW

The Ubiquiti UniFi US-XG-6POE is a compact, fully managed 10-Gigabit PoE++ Layer 3 switch built for high-performance enterprise and professional networks. Designed for modern multi-gigabit infrastructure , it combines 10GbE PoE++ Ethernet ports and 10G SFP+ fiber uplinks in a powerful desktop form factor.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• 4 × Multi-Gig PoE++ RJ45 Ports: Supports 1 / 2.5 / 5 / 10GbE speeds with 802.3bt PoE++ delivering up to 60W per port.
• 2 × 10G SFP+ Ports: High-speed fiber uplinks for aggregation switches, servers, or core network infrastructure.
• 120 Gbps Switching Capacity: Built to handle high-volume traffic across all ports.
• 60 Gbps Non-Blocking Throughput: Enables simultaneous traffic processing without bottlenecks.
• Advanced Layer 3 Functionality: Supports inter-VLAN routing, static routing, and DHCP server capabilities.
• Flexible Power Options: External AC/DC adapter with optional DC input for redundancy.
• UniFi Controller Management: Centralized configuration, monitoring, and firmware management.
• Powering high-performance UniFi Access Points and other PoE++ devices
• Connecting 10GbE workstations and servers
• Deploying multi-gigabit enterprise networks
• Supporting high-density wireless deployments with 10G backhaul
• Providing 10G fiber uplinks to core or aggregation switches

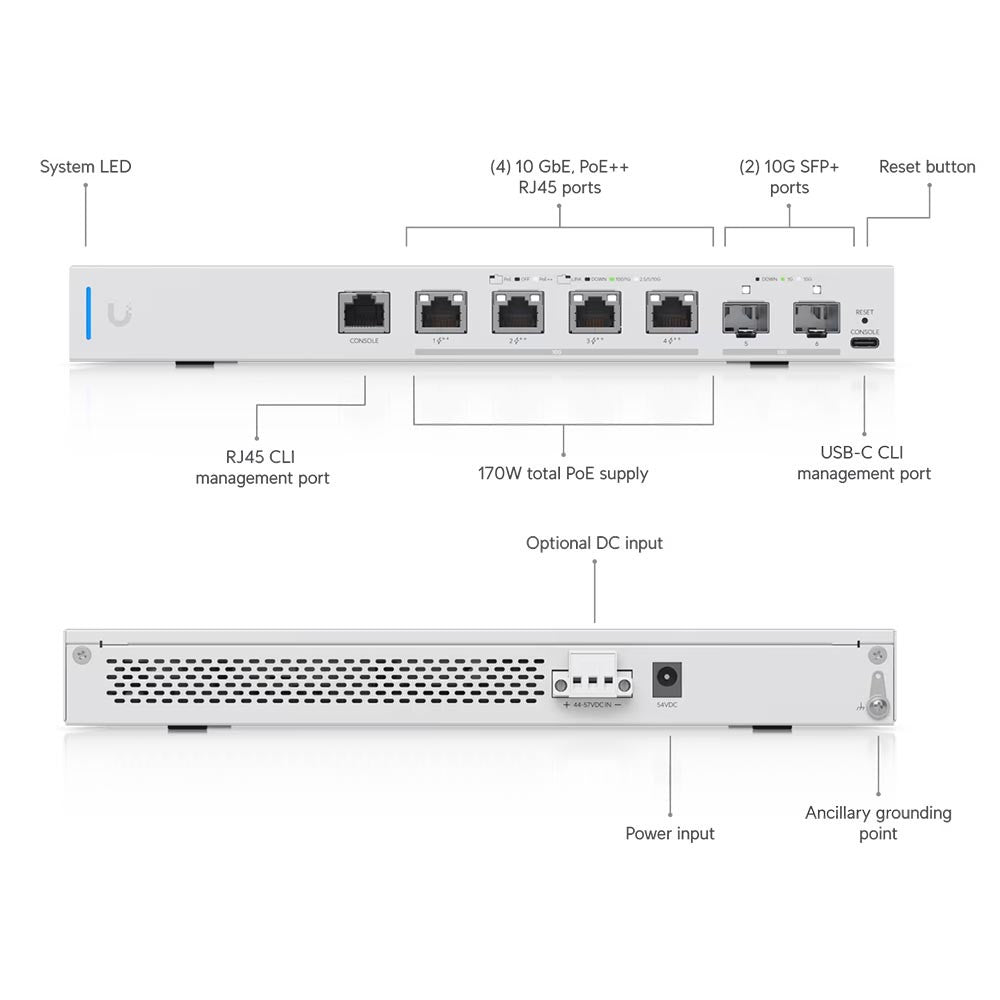

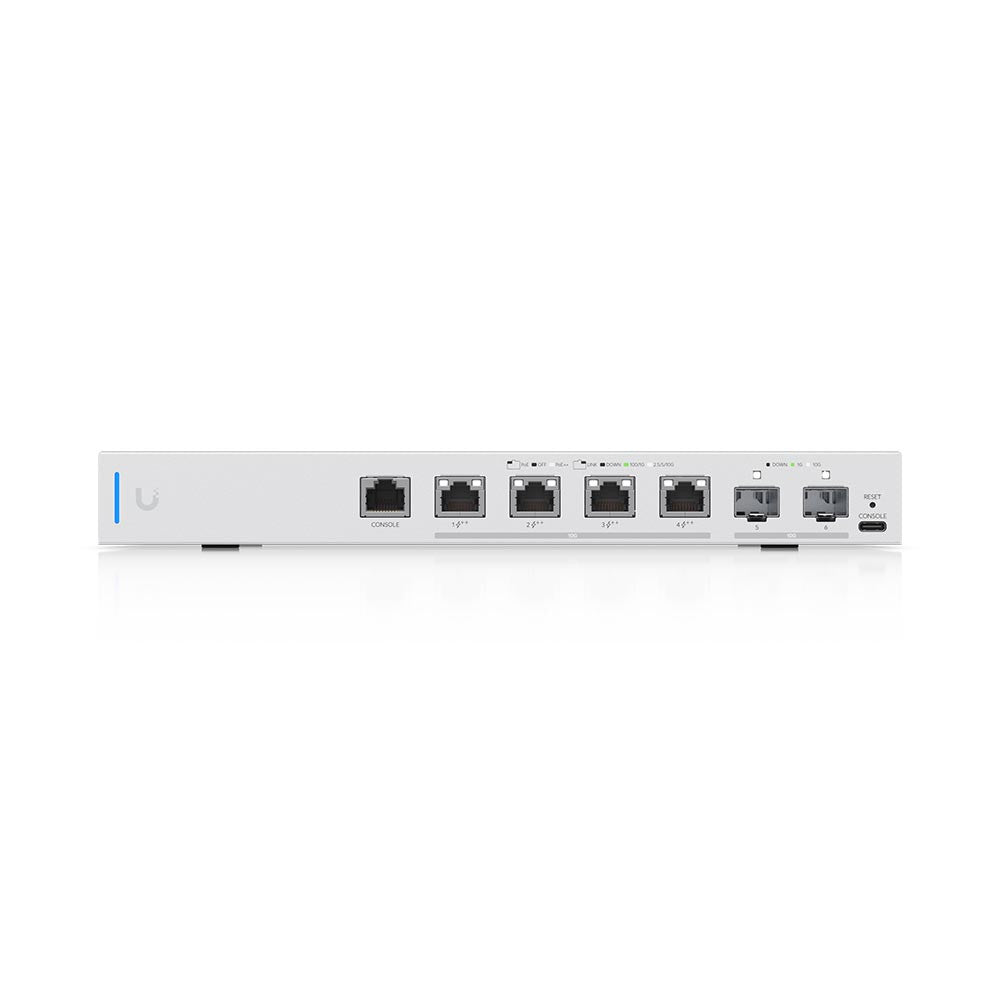

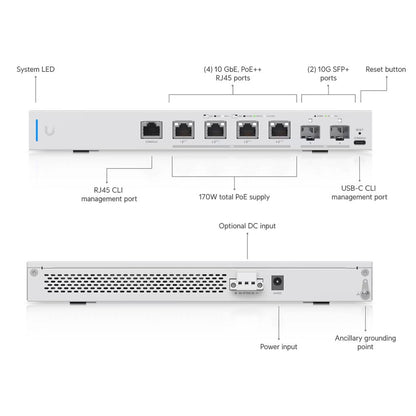

• Networking Interfaces : (4) 1/2.5/5/10G RJ45 ports with 802.3bt PoE++
• (2) 1/10G SFP+ ports for fiber uplinks
• (1) RJ45 Serial Console port for CLI management
• (1) USB Type-C port for out-of-band management
• Total Non-Blocking Throughput : 60 Gbps
• Switching Capacity : 120 Gbps

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: US-XG-6POE
• Product Type: Routers and Switches
• 4 × Multi-Gig PoE++ RJ45 Ports: Supports 1 / 2.5 / 5 / 10GbE speeds with 802.3bt PoE++ delivering up to 60W per port.
• 2 × 10G SFP+ Ports: High-speed fiber uplinks for aggregation switches, servers, or core network infrastructure.
• 120 Gbps Switching Capacity: Built to handle high-volume traffic across all ports.
• 60 Gbps Non-Blocking Throughput: Enables simultaneous traffic processing without bottlenecks.
• Advanced Layer 3 Functionality: Supports inter-VLAN routing, static routing, and DHCP server capabilities.
• Flexible Power Options: External AC/DC adapter with optional DC input for redundancy.
• UniFi Controller Management: Centralized configuration, monitoring, and firmware management.
• Powering high-performance UniFi Access Points and other PoE++ devices
• Connecting 10GbE workstations and servers
• Deploying multi-gigabit enterprise networks
• Supporting high-density wireless deployments with 10G backhaul
• Providing 10G fiber uplinks to core or aggregation switches
• Networking Interfaces : (4) 1/2.5/5/10G RJ45 ports with 802.3bt PoE++
• (2) 1/10G SFP+ ports for fiber uplinks
• (1) RJ45 Serial Console port for CLI management
• (1) USB Type-C port for out-of-band management
• Total Non-Blocking Throughput : 60 Gbps
• Switching Capacity : 120 Gbps
• Forwarding Rate : 89.3 Mpps

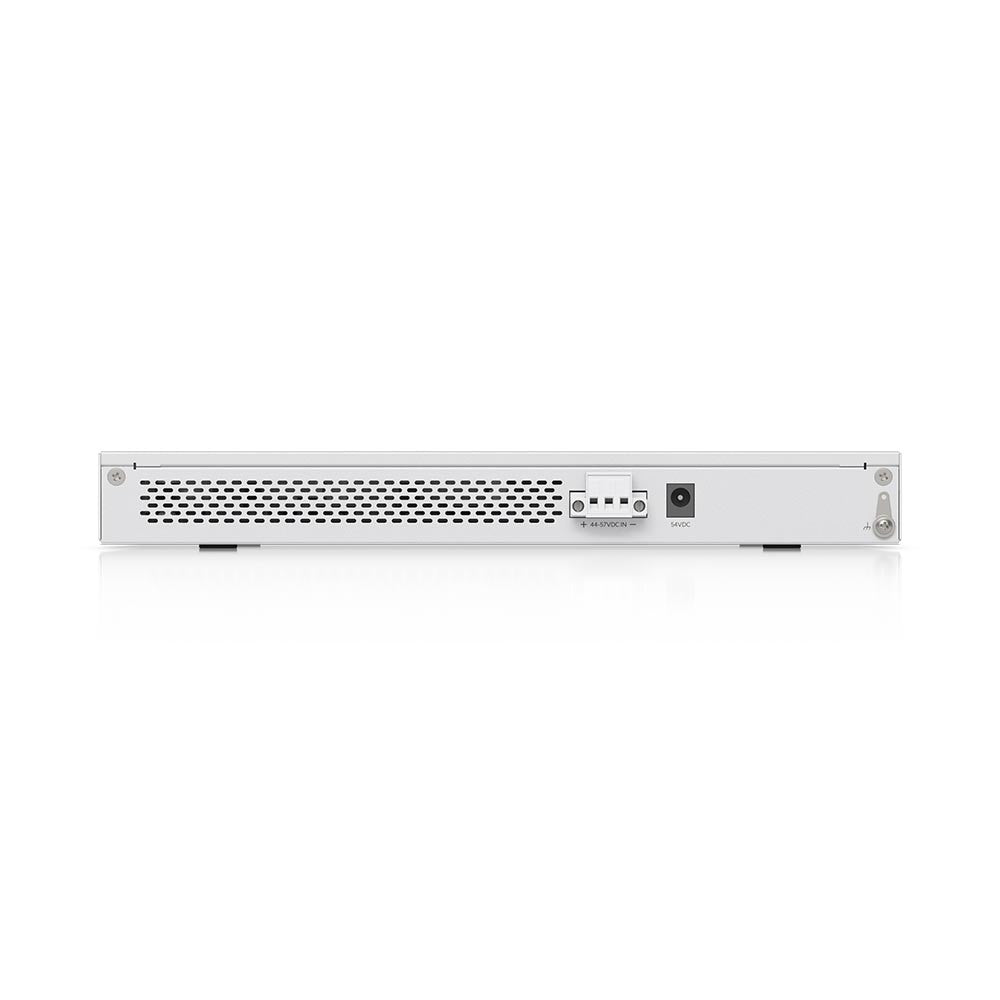

• Power Supply : 54V DC, 3.88A Power Adapter (Included)
• Optional DC input via terminal block for redundancy
• PoE Output : Maximum PoE++ wattage per port: 60W
• Total PoE budget: 170W
• Maximum Power Consumption : 40W (excluding PoE output)
• Operating Temperature : -5°C to 45°C (23°F to 113°F)
• Operating Humidity : 5% to 95% non-condensing
• Dimensions : 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25 inches)
• Weight : 1.3 kg (2.87 lbs)
• Certifications : CE, FCC, IC

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
