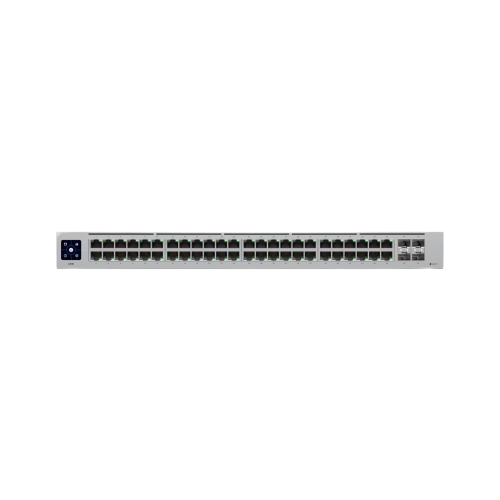

Ubiquiti USW-48 48-Port Gigabit Managed Network Switch with SFP
- EhubAmerica SKU
- USW-48
- 48 × Gigabit RJ45
In stock
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti configurable Layer 2 Gigabit switch with 48 RJ45 ports, four 1 Gbps SFP ports, 52 Gbps non-blocking line rate, 1.3-inch touch LCM, and fanless design.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• (48) 10/100/1000 Mbps Ethernet RJ45 ports
• (4) 1 Gbps SFP ports
• 52 Gbps total non-blocking line rate
• 77.376 Mpps forwarding rate
• SMB Layer 2 Gigabit Ethernet switch
• 1.3-inch touch LCM for switch status and diagnostic information
• Fanless design
• Ethernet in-band management
• Managed and configured through UniFi Network Controller and mobile app
• Supports advanced Layer 2 switching protocols and features
• Per-port switching, mirroring, or aggregate operation modes
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model / Part Number: USW-48
• Switch Type: SMB Layer 2 Gigabit Ethernet Switch
• Networking Interfaces: (48) 10/100/1000 Mbps Ethernet RJ45 Ports
• SFP Interfaces: (4) 1 Gbps SFP Ports
• Total Non-Blocking Line Rate: 52 Gbps
• Forwarding Rate: 77.376 Mpps
• Management Interface: Ethernet In-Band
• Display: 1.3-Inch Touch LCM
• Maximum Power Consumption: 40 W
• Power Method: Universal AC Input, 100–240VAC, 50/60 Hz
• Power Supply: Internal AC/DC, 60 W
• Supported Voltage Range: 100–240VAC
• Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
• Weight Without Mount: 3.9 kg (8.6 lb)
• Weight With Mount: 3.99 kg (8.8 lb)
• Enclosure: SGCC Steel
• Operating Temperature: -15 to 40°C (5 to 104°F)
• Operating Humidity: 10–90% Noncondensing
• Ethernet LED: Green at 1G, Amber at 10/100 Mbps
• SFP LED: Green at 1G
• Certifications: CE, FCC, IC
Specifications
Technical specifications
| Ubiquiti USW-48 Standard Switch 48-Ports Gigabit | |
|---|---|
| General | |
| Model | USW-48 |
| Switch Type | Layer 2 managed switch |
| Management Interface | Ethernet In-Band |
| LCM Display | 1.3" color touchscreen |
| Physical | |
| Dimensions | 442.4 x 285 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight (without brackets) | 3.9 kg (8.6 lb) |
| Weight (with brackets) | 4 kg (8.8 lb) |
| Enclosure Material | SGCC steel |
| Cooling | Fanless |
| Power & Electrical | |
| Power Supply | AC/DC, internal, 60W |
| Input Voltage | 100–240V AC, 50/60 Hz |
| Max. Power Consumption | 40W |
| ESD/EMP Protection | Air: ±16 kV, Contact: ±12 kV |
| Networking & Connectivity | |
| Ethernet Ports | 48 × Gigabit RJ45 |
| SFP Ports | 4 × 1G SFP |
| Switching Capacity | 104 Gbps |
| Non-blocking Throughput | 52 Gbps |
| Forwarding Rate | 77.376 Mpps |
| Environmental | |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compatibility | |
| UniFi Network | Version 7.2.94 and later |
