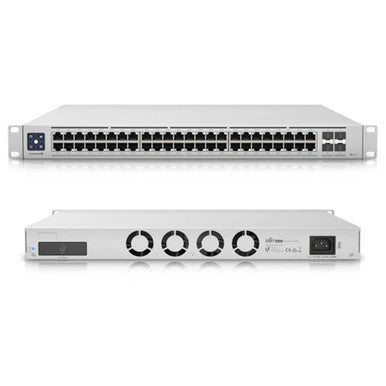

Ubiquiti USW-Enterprise-48-PoE 48-Port 2.5GbE PoE+ Switch 720W 10G SFP+
- EhubAmerica SKU
- USW-Enterprise-48-PoE
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti UniFi configurable Layer 3 switch with 48 auto-sensing 2.5GbE PoE+ RJ45 ports, 4 10G SFP+ ports, 720W total PoE supply, and a 1.3-inch LCM color touchscreen.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Configurable Layer 3 switch
• 48 x auto-sensing 100MbE/1GbE/2.5GbE RJ45 ports
• 48 x IEEE 802.3af/at PoE+ interfaces
• 4 x 1G/10G SFP+ ports
• 720W total PoE supply
• Maximum PoE+ output of 34.2W per port by PSE
• Advanced Layer 2 switching protocols
• Port-specific switching, mirroring, and aggregate operation modes
• 1.3-inch LCM color touchscreen
• Supports UniFi Network mobile app AR switch scanning
• Managed and configured through the UniFi Network web application or mobile app
• USP-RPS DC power input support
TECHNICAL SPECIFICATIONS
• Model: USW-Enterprise-48-PoE
• Networking Interfaces: 48 x 100MbE/1GbE/2.5GbE RJ45
• SFP+ Interfaces: 4 x 1G/10G SFP+
• PoE Interfaces: 48 x PoE+ IEEE 802.3af/at
• Total PoE Supply: 720W
• Maximum PoE+ Wattage per Port by PSE: 34.2W
• 802.3af Voltage Range: 44-57V
• 802.3at Voltage Range: 50-57V
• Total Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.095 Mpps
• Maximum Power Consumption Excluding PoE Output: 150W
• Power Input: 100-240VAC, 10A max., 50/60 Hz
• USP-RPS DC Input: 52VDC, 13.84A; 11.5VDC, 13A
• Power Supply: Internal AC/DC, 100-240V, 10A max.
• Management Interface: Ethernet in-band
• Display: 1.3-inch LCM color touchscreen
• Dimensions: 442 x 44 x 400 mm (17.4 x 1.7 x 15.7 in.)
• Weight Without Mount: 6.2 kg (13.67 lb)
• Weight With Mount: 6.3 kg (13.89 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• ESD/EMP Protection: Air ±16 kV; Contact ±12 kV
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 10-90% noncondensing
• Factory Reset Button
• Ethernet LED: White for link or activity
• SFP+ LED: White for link or activity
• Certifications: CE, FCC, IC
INTENDED USE / APPLICATIONS
Designed to provide 2.5GbE PoE+ connectivity for WiFi 6 access points and 10G SFP+ fiber uplink connectivity.
Specifications
Technical specifications
| General | |
|---|---|
| Model | USW-Enterprise-48-PoE |
| Brand | Ubiquiti |
| Type | Layer 3 Managed PoE Switch |
| Physical | |
| Dimensions | 442 x 44 x 400 mm (17.4 x 1.7 x 15.7 in) |
| Weight (without mounting brackets) | 6.2 kg (13.67 lb) |
| Weight (with mounting brackets) | 6.3 kg (13.89 lb) |
| Material | SGCC steel |
| Power & Electrical | |
| Input (AC) | 100–240V AC, 10A Max |
| Input (USP RPS DC) | 52V DC, 13.84A; 11.5V DC, 13A |
| Max Power Consumption | 150W (excluding PoE output) |
| Total PoE Budget | 720W |
| Max PoE+ per Port | 34.2W |
| Networking & Connectivity | |
| RJ45 Ports | (48) 2.5GbE auto-sensing, IEEE 802.3af/at PoE+ |
| SFP+ Ports | (4) 1G/10G |
| Non-blocking Throughput | 160Gbps |
| Switching Capacity | 320Gbps |
| Forwarding Rate | 238.095Mpps |
| Layer 3 Features | Inter-VLAN routing, static routing |
| Compatibility | |
| Management | UniFi Network web application, UniFi mobile app |
| Redundant Power Option | SmartPower Redundant Power System (USP RPS, sold separately) |
