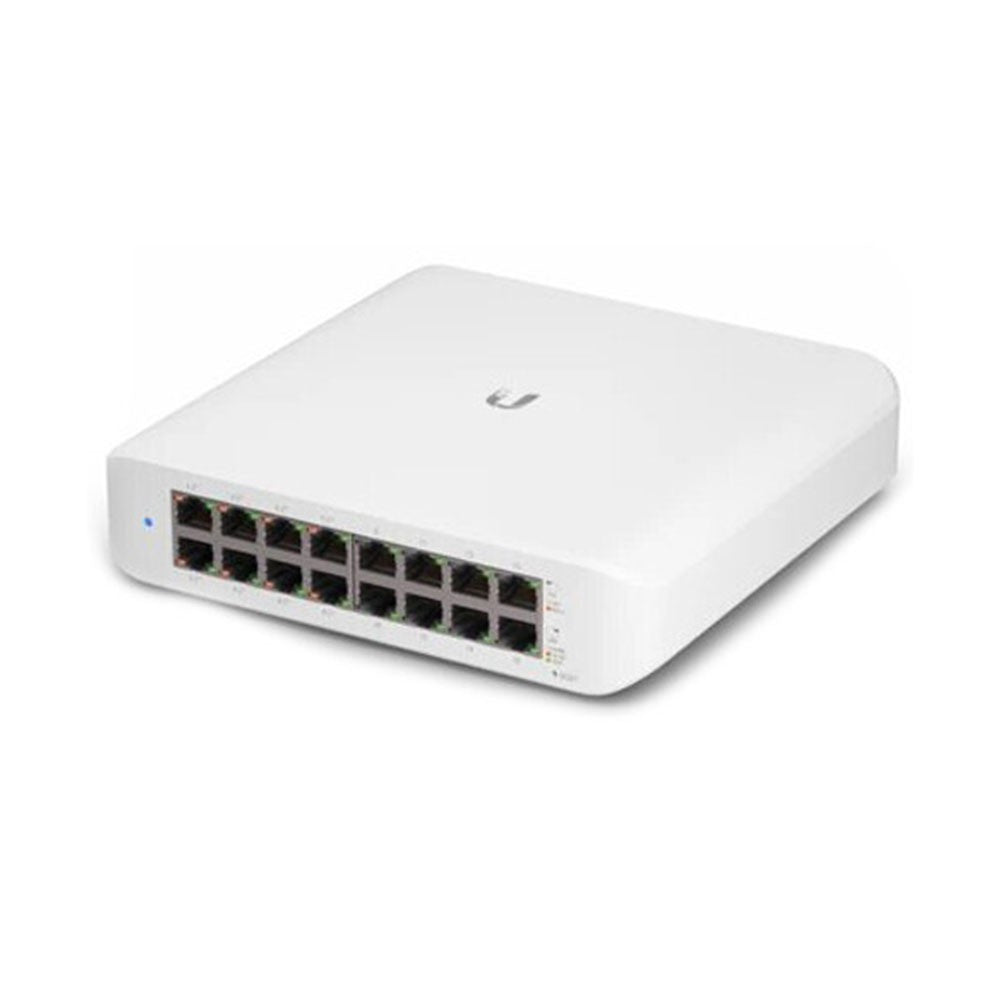

Ubiquiti USW-Lite-16-POE 16-Port Gigabit PoE+ Switch 45W
- EhubAmerica SKU
- USW-Lite-16-POE
- (16) Gigabit Ethernet RJ45
In stock
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• (8) GbE, 802.3at PoE+ RJ45 ports
• (8) GbE RJ45 ports
• 45W total PoE supply
• Fanless, silent cooling
• Wall-mountable (kit included)
• 191.7 x 185 x 43.7 mm (7.6 x 7.3 x 1.7")
• 1.2 kg (2.6 lb)
• Mechanical Enclosure material: Plastic
• Hardware Management interface: Ethernet In-Band
• Networking interface: (16) GbE RJ45 ports
• PoE interface: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total non-blocking throughput: 16 Gbps
• Power method: Universal input, 100—240V AC
• Power supply: AC/DC, internal, 60W
• Supported voltage range: 100—240V AC
• Max. power consumption: 15W (Excluding PoE output)
• Total available PoE: 45W
• Max. PoE wattage per port by PSE: PoE+: 30W
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: USW-Lite-16-POE
• Product Type: Routers and Switches
• (8) GbE, 802.3at PoE+ RJ45 ports
• (8) GbE RJ45 ports
• 45W total PoE supply
• Fanless, silent cooling
• Wall-mountable (kit included)
• 191.7 x 185 x 43.7 mm (7.6 x 7.3 x 1.7")
• 1.2 kg (2.6 lb)
• Mechanical Enclosure material: Plastic
• Hardware Management interface: Ethernet In-Band
• Networking interface: (16) GbE RJ45 ports
• PoE interface: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total non-blocking throughput: 16 Gbps
• Power method: Universal input, 100—240V AC
• Power supply: AC/DC, internal, 60W
• Supported voltage range: 100—240V AC
• Max. power consumption: 15W (Excluding PoE output)
• Total available PoE: 45W
• Max. PoE wattage per port by PSE: PoE+: 30W
• Button: Factory reset
• Operating temperature: -15 to 40° C (5 to 104° F)
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
• LEDs System: Status
• Ethernet: PoE
• Speed/link/activity
• Application Requirements
• UniFi Network: Version 7.2.94 and later
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | USW-Lite-16-POE |
| Product Type | Layer 2 Managed PoE Switch |
| Port Configuration | 16 GbE RJ45 ports (8 with 802.3at PoE+, 8 standard) |
| Physical | |
| Dimensions | 191.7 x 185 x 43.7 mm (7.6 x 7.3 x 1.7") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | Plastic |
| Mounting | Wall-mountable (kit included) |
| Cooling | Fanless |
| Power & Electrical | |
| Power Supply | AC/DC, internal, 60W |
| Input Voltage | 100–240V AC |
| Max. Power Consumption | 15W (excluding PoE output) |
| Total PoE Supply | 45W |
| Max. PoE per Port | 30W (PoE+) |
| PoE Interface | 8 PoE/PoE+ ports (Pins 1, 2+; 3, 6-) |
| Networking & Connectivity | |
| Total Non-Blocking Throughput | 16 Gbps |
| Management Interface | Ethernet In-Band |
| Ports | (16) Gigabit Ethernet RJ45 |
| Environmental | |
| Operating Temperature | -15 to 40°C (5 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compatibility | |
| UniFi Network | Version 7.2.94 and later |
