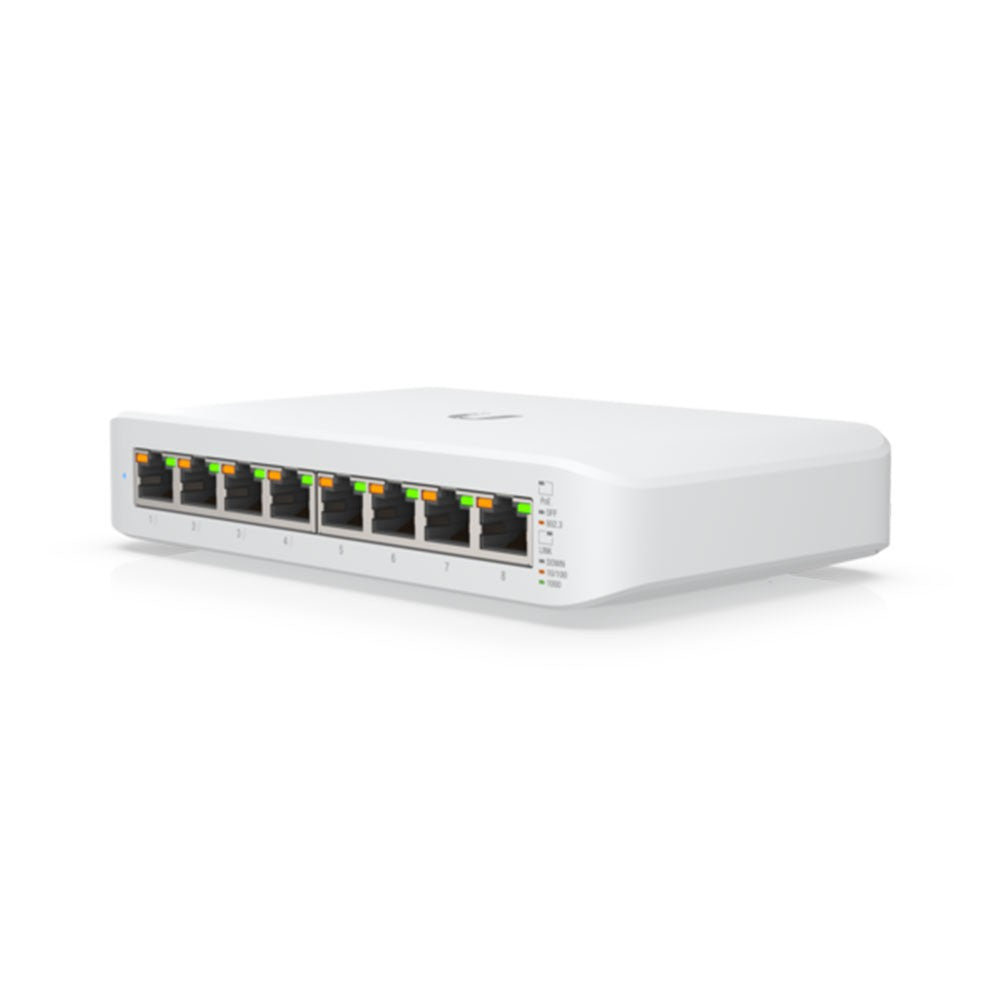

Ubiquiti USW-Lite-8-PoE 8-Port Gigabit PoE+ Switch 52W Fanless

PRODUCT OVERVIEW

USW-Lite-8-PoE - Eight-port, Layer 2 PoE Switch with Silent Fanless Cooling

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• (4) GbE 802.3at PoE+ Ports: Provides ample power to connected devices, supporting up to 30W per port.
• (4) GbE RJ45 Ports: Additional ports for non-PoE devices.
• 52W Total PoE Budget: Sufficient for a variety of PoE-enabled devices.
• Fanless, Silent Cooling: Ideal for deployment in noise-sensitive environments.

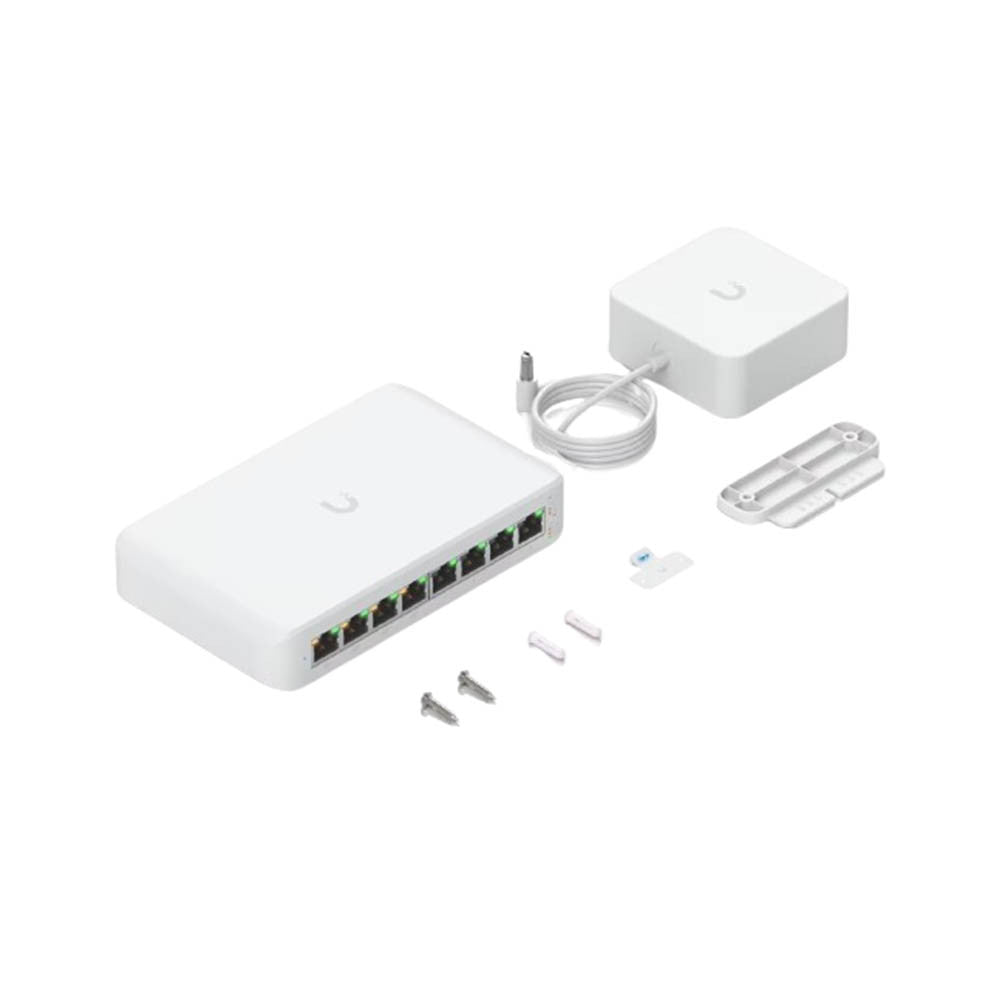

• Wall-Mountable: Includes a wall-mount kit for easy installation.
• 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3')
• 295 g (10.4 oz)
• Mechanical: Dimensions: 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25')
• Weight: 295 g (10.4 oz)
• Enclosure Material: Polycarbonate
• Certifications: CE, FCC, IC
• Hardware: Management Interface: Ethernet In-Band
• Networking Interface: (8) GbE RJ45 Ports
• PoE Interface: (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Max. PoE Wattage per Port: 30W
• Power Supply: External 54V, 60W Power Adapter
• Max. Power Consumption: 8W (Excluding PoE Output)
• Supported Voltage Range: 50—57V DC

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: USW-Lite-8-POE
• Product Type: Routers and Switches
• (4) GbE 802.3at PoE+ Ports: Provides ample power to connected devices, supporting up to 30W per port.
• (4) GbE RJ45 Ports: Additional ports for non-PoE devices.
• 52W Total PoE Budget: Sufficient for a variety of PoE-enabled devices.
• Fanless, Silent Cooling: Ideal for deployment in noise-sensitive environments.
• Wall-Mountable: Includes a wall-mount kit for easy installation.
• 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3')
• 295 g (10.4 oz)
• Mechanical: Dimensions: 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25')
• Weight: 295 g (10.4 oz)
• Enclosure Material: Polycarbonate
• Certifications: CE, FCC, IC
• Hardware: Management Interface: Ethernet In-Band
• Networking Interface: (8) GbE RJ45 Ports
• PoE Interface: (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Max. PoE Wattage per Port: 30W
• Power Supply: External 54V, 60W Power Adapter
• Max. Power Consumption: 8W (Excluding PoE Output)
• Supported Voltage Range: 50—57V DC
• Performance: Total Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.904 Mpps
• Layer 2 Features: IGMP Snooping, STP/RSTP, Port Isolation, Storm Control, Voice VLAN, Port Mirroring, LACP, Multicast/Broadcast Rate Limiting, MAC Address Blocking, Flow Control, 802.1X Control, Jumbo Frames, Proprietary Loop Protection, DHCP Snooping/Guarding, LLDP-MED, Port Restriction by MAC, Device Isolation with ACLs
• Environmental: Ambient Operating Temperature: -15 to 40° C (5 to 104° F)
• Ambient Operating Humidity: 10 to 90% Non-Condensing
• LED Indicators: System: Status
• Ethernet: PoE, Speed/Link/Activity
• PoE: Link/Activity
• Application Requirements: UniFi Network: Requires Version 7.2.94 or later for optimal performance and configuration.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
