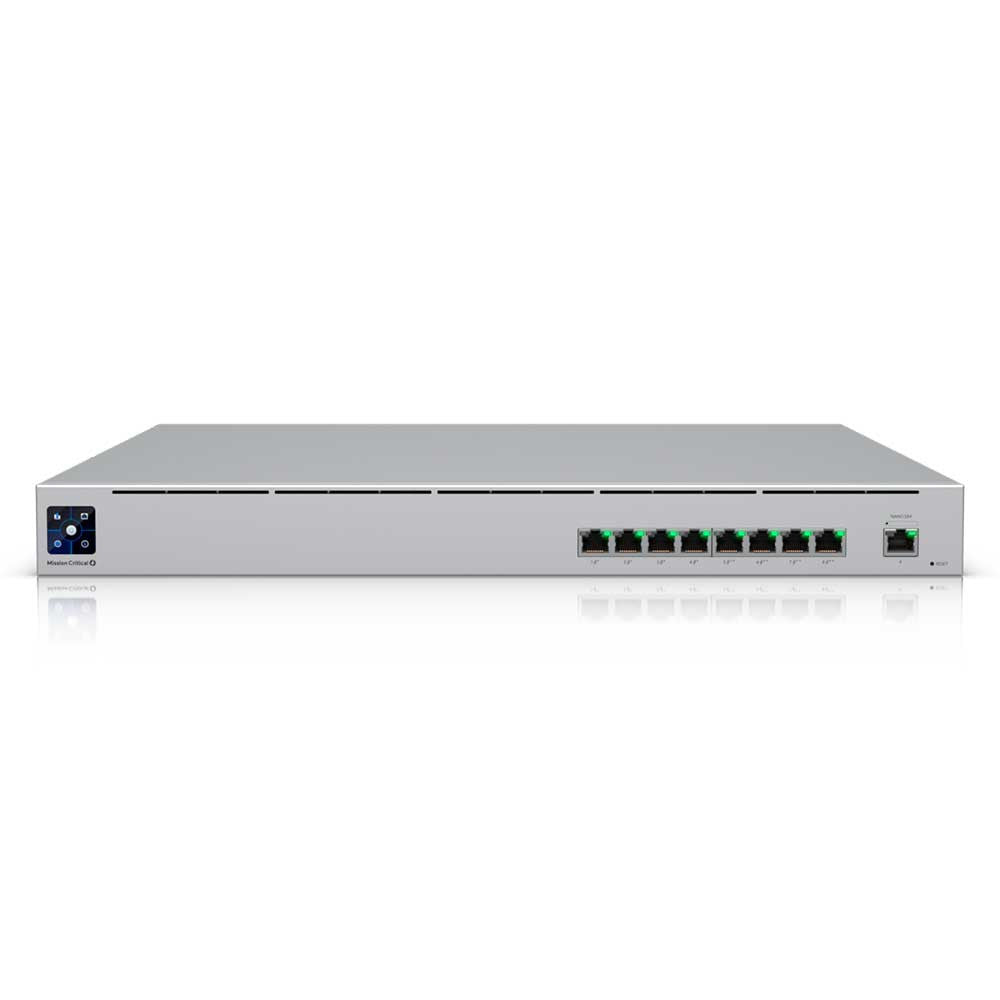

Ubiquiti USW-Mission-Critical-US 9-Port Gigabit PoE Switch 368Wh Battery

PRODUCT OVERVIEW

Ubiquiti USW-Mission-Critical-US – Infrastructure PoE Switch with Uninterruptible Power Supply

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• PoE Ports: (4) PoE+ (30W max) and (4) PoE++ (60W max) ports for powering multiple devices.
• Battery Backup: Integrated 368Wh lithium-ion battery ensures uninterrupted power.
• AC Power Outputs: (2) 110V AC outputs with 80W budget for auxiliary devices.
• Layer 2 Switching: Includes advanced features such as IGMP snooping, port isolation, and VLAN support.
• Management Options: Intuitive control via UniFi Network Controller or mobile app, with AR-assisted configuration.
• Touchscreen Display: 1.3-inch LCD for real-time diagnostics and status monitoring.
• Ideal for critical infrastructure requiring uninterrupted network connectivity.
• Supports high-power UniFi Access Points, cameras, and other PoE devices.
• Suitable for data centers, enterprise networks, and remote deployments.
• Mechanical: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7 in)
• Weight: Without Mount: 9 kg (19.9 lb)
• With Mount: 9.2 kg (20.3 lb)
• Enclosure Material: SGCC Steel
• Rack Depth Supported: 700–1000 mm (27.6–39.4 in)
• Hardware: Networking Interfaces: (9) GbE RJ45 Ports
• PoE Interfaces: (4) PoE+ (802.3af/at) ports, 30W max each
• (4) PoE++ (802.3bt) ports, 60W max each
• Switching Capacity: 18 Gbps

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: USW-Mission-Critical-US
• Product Type: Routers and Switches
• PoE Ports: (4) PoE+ (30W max) and (4) PoE++ (60W max) ports for powering multiple devices.
• Battery Backup: Integrated 368Wh lithium-ion battery ensures uninterrupted power.
• AC Power Outputs: (2) 110V AC outputs with 80W budget for auxiliary devices.
• Layer 2 Switching: Includes advanced features such as IGMP snooping, port isolation, and VLAN support.
• Management Options: Intuitive control via UniFi Network Controller or mobile app, with AR-assisted configuration.
• Touchscreen Display: 1.3-inch LCD for real-time diagnostics and status monitoring.
• Ideal for critical infrastructure requiring uninterrupted network connectivity.
• Supports high-power UniFi Access Points, cameras, and other PoE devices.
• Suitable for data centers, enterprise networks, and remote deployments.
• Mechanical: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7 in)
• Weight: Without Mount: 9 kg (19.9 lb)
• With Mount: 9.2 kg (20.3 lb)
• Enclosure Material: SGCC Steel
• Rack Depth Supported: 700–1000 mm (27.6–39.4 in)
• Hardware: Networking Interfaces: (9) GbE RJ45 Ports
• PoE Interfaces: (4) PoE+ (802.3af/at) ports, 30W max each
• (4) PoE++ (802.3bt) ports, 60W max each
• Switching Capacity: 18 Gbps
• Forwarding Rate: 13.39 Mpps
• Power: Power Input: Universal AC (100–240V, 50/60Hz)
• External 48V DC battery (not included)
• Battery Backup: Integrated 368Wh lithium-ion
• Power Output: PoE: 120W total budget
• AC: (2) 110V outputs, 80W budget
• Environmental: Operating Temperature: -5°C to 40°C (23°F to 104°F)
• Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, IC
• Switching Features: VLAN, IGMP snooping, DHCP snooping, LACP aggregation, and more.
• Security features including MAC blocking and ACL device isolation.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
