UBIQUITI
Ubiquiti USW-Pro-48 Switch Professional 48
Product identifier
SKU
USW-Pro-48
$662.60
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

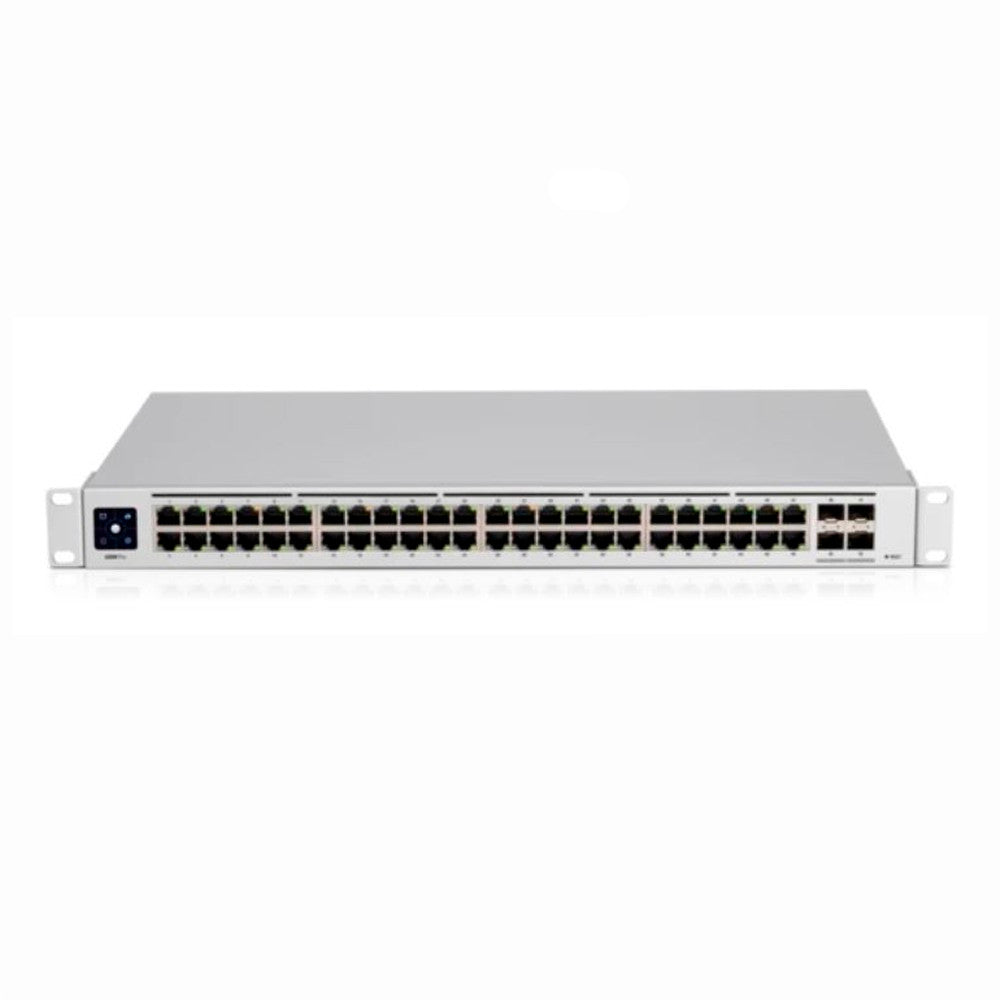

Ubiquiti USW-Pro-48 UniFi Switch Pro 48-Port Gigabit 4x 10G SFP+ 176Gbps
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti USW-Pro-48 UniFi Network switch with 48 Gigabit RJ45 ports, four 1/10G SFP+ ports, 176 Gbps switching capacity, 88 Gbps non-blocking throughput, 1.3-inch touchscreen, and USP-RPS DC input.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Routers and Switches
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
- (48) Gigabit Ethernet RJ45 ports
- (4) 1/10G SFP+ ports
- 176 Gbps switching capacity
- 88 Gbps total non-blocking throughput
- 130.944 Mpps forwarding rate
- Ethernet in-band management
- Integrated 1.3-inch touchscreen
- Universal 100–240V AC power input
- USP-RPS DC input for compatible redundant power system connection
- Internal 60W AC/DC power supply
- System status LED
- Ethernet speed, link, and activity LEDs
- SFP+ speed, link, and activity LEDs
- RPS status LED
- Factory-reset button
- SGCC steel enclosure
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
- Manufacturer: Ubiquiti
- Model / Part Number: USW-Pro-48
- Product Name: Switch Pro 48
- Product Family: UniFi Network
- Networking Interface: (48) GbE RJ45 ports
- SFP+ Interface: (4) 1/10G SFP+ ports
- Management Interface: Ethernet in-band
- Total Non-Blocking Throughput: 88 Gbps
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.944 Mpps
- Power Method: Universal 100–240V AC, 50/60 Hz
- Redundant Power Input: USP-RPS DC input, 11.5V DC, 5.22A
- Power Supply: Internal 60W AC/DC
- Maximum Power Consumption: 60W
- Supported AC Voltage Range: 100–240V AC
- Display: (1) 1.3-inch touchscreen
- Button: Factory reset
- ESD/EMP Protection, Air: ±16 kV
- ESD/EMP Protection, Contact: ±12 kV
- Dimensions: 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7 in)
- Weight without Mounting Brackets: 4 kg (8.8 lb)
- Weight with Mounting Brackets: 4.1 kg (9 lb)
- Enclosure Material: SGCC steel
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 45°C (23 to 113°F)
- Operating Humidity: 10% to 90% noncondensing
- Certifications: CE, FCC, IC
- System LED: Status
- Ethernet LEDs: Speed / Link / Activity
- SFP+ LEDs: Speed / Link / Activity
- RPS LED: Status
