Ubiquiti · Routers and Switches

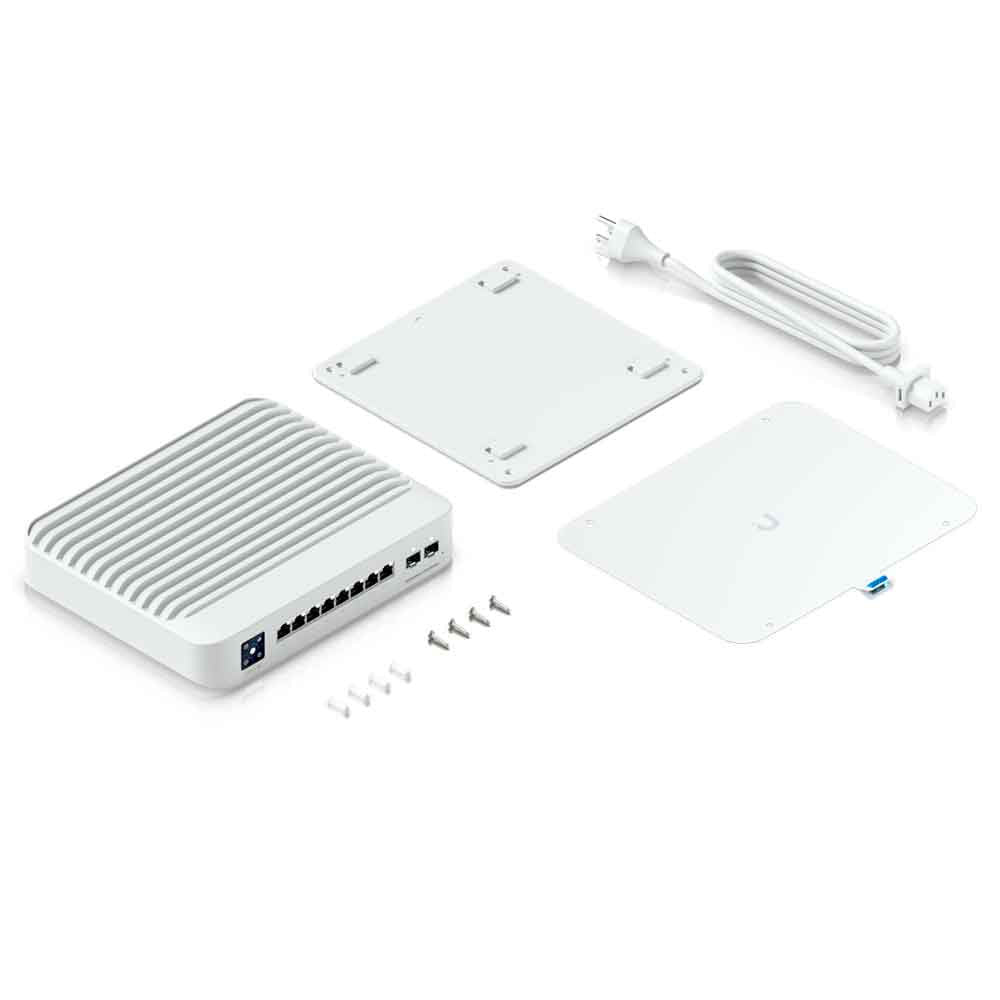

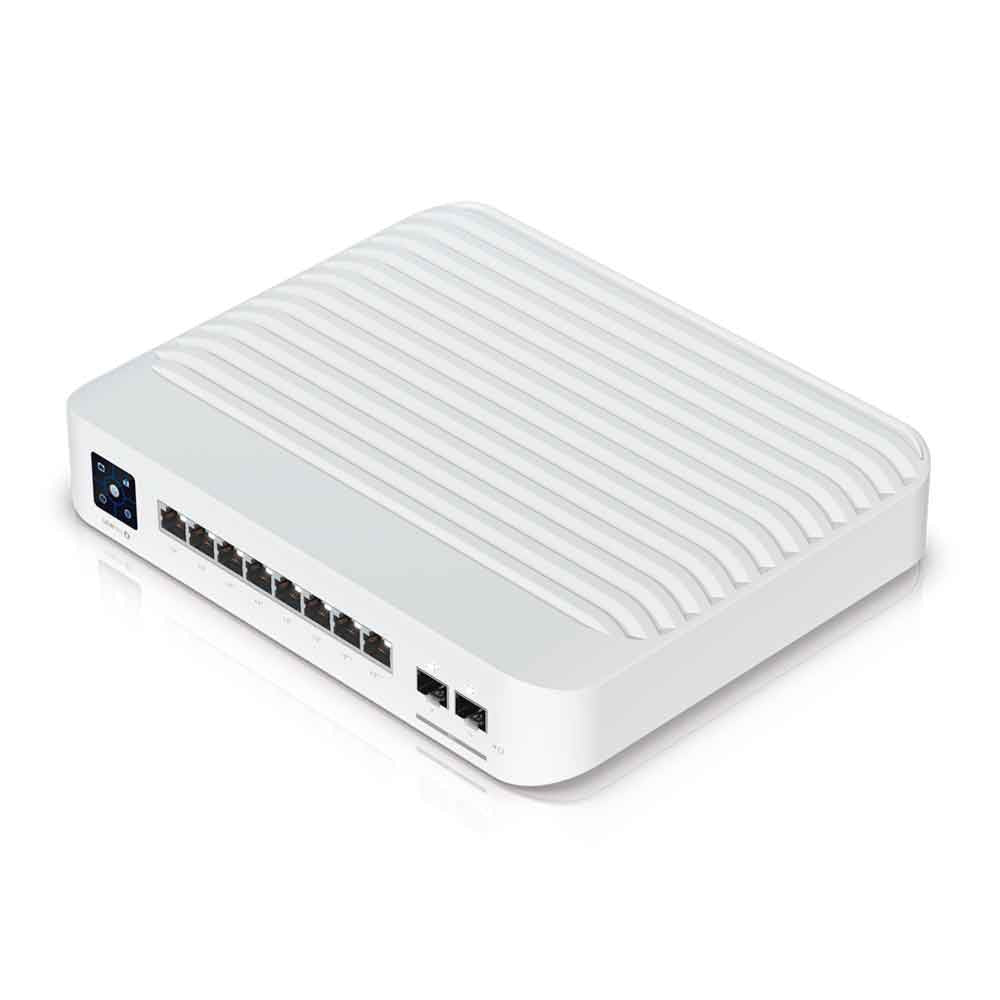

Ubiquiti USW-PRO-8-POE 8-Port Layer 3 Gigabit PoE+ PoE++ Switch 10G SFP+
- EhubAmerica SKU
- USW-PRO-8-POE
- Compact desktop, wall-mountable
$387.99
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
PRODUCT TYPE
Routers and Switches
KEY FEATURES
- 1.3' touchscreen with AR switch management
- (6) GbE, PoE+ RJ45 ports
- Reset button
- 120W total PoE suplly
- (2) 10G SFP ports
- Wall-mountable (kit included)
- Power input
- Safety latch
- Technical Specification:
- Overview:
- Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7')
- Port Layout:
- 1 GbE RJ45: 8 (6 PoE+; 2 PoE++)
- 10G SFP+: 2
- Max. PoE Output: Up to PoE++
- Total PoE Availability: 120W
- Layer 3
- Form Factor: Compact desktop, wall
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: USW-PRO-8-POE
- Product Type: Fiber
- 1.3' touchscreen with AR switch management
- (6) GbE, PoE+ RJ45 ports
- Reset button
- 120W total PoE suplly
- (2) 10G SFP ports
- Wall-mountable (kit included)
- Power input
- Safety latch
- Overview: Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7')
- Port Layout: 1 GbE RJ45: 8 (6 PoE+; 2 PoE++)
- 10G SFP+: 2
- Max. PoE Output: Up to PoE++
- Total PoE Availability: 120W
- Layer 3
- Form Factor: Compact desktop, wall
- Performance: Switching Capacity: 56 Gbps
- Total Non-Blocking Throughput: 28 Gbps
- Forwarding Rate: 42 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- L3 Table Size
- ARP Entries: 6,000
- IPv4 Routes: 512
- Packet Buffer Size: 1.5 MB
- Layer 3 Features: DHCP Server (Local Networks)
- DHCP Relay
- Inter-VLAN Routing (Local Networks)
- Static Routing (Local Networks)
- Layer 2 Features: LACP Port Aggregation
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | USW-PRO-8-POE |
| Product Type | 8-Port Layer 3 Gigabit PoE+ PoE++ Switch with 10G SFP+ |
| Form Factor | Compact desktop, wall-mountable |
| Physical | |
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Polycarbonate |
| Power & Electrical | |
| Power Input Method | AC input |
| Supported Voltage Range | 100–240V AC, 50/60 Hz |
| Power Supply | AC/DC, internal, 150W |
| Max. Power Consumption (Excluding PoE Output) | 30W |
| Max. Power Consumption (Including PoE Output) | 150W |
| Heat Dissipation (Excluding PoE Output) | 102.36 BTU/hr |
| Total PoE Availability | 120W |
| PoE+ Ports | 6 |
| PoE++ Ports | 2 |
| Max. PoE Wattage per Port (PoE) | 15.4W |
| Max. PoE Wattage per Port (PoE+) | 32W |
| Max. PoE Wattage per Port (PoE++) | 64W |
| Networking & Connectivity | |
| Gigabit Ethernet Ports | 8 (6 PoE+; 2 PoE++) |
| 10G SFP+ Ports | 2 |
| Switching Capacity | 56 Gbps |
| Total Non-Blocking Throughput | 28 Gbps |
| Forwarding Rate | 42 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| ARP Entries | 6,000 |
| IPv4 Routes | 512 |
| Packet Buffer Size | 1.5 MB |
| Layer 3 Features | DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing (Local Networks), Static Routing (Local Networks) |
| Layer 2 Features | LACP Port Aggregation, STP & RSTP, Advanced IGMP Configuration (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation |
