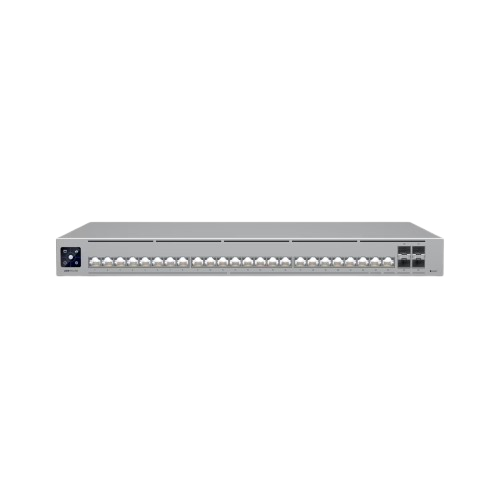

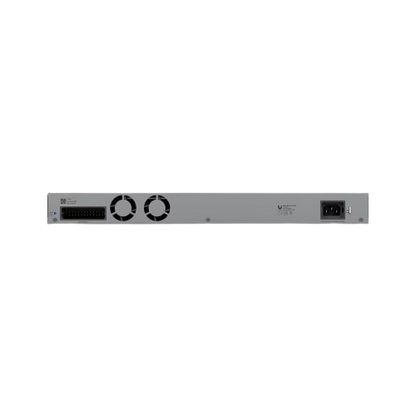

Ubiquiti USW-Pro-HD-24 Layer 3 Switch 2x10GbE 22x2.5GbE 4xSFP+
- EhubAmerica SKU
- USW-Pro-HD-24
- Rack mount (1U)
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Professional-grade Layer 3 Etherlighting switch with 22 multi-speed 2.5 GbE ports, 2 multi-speed 10 GbE ports, 4 10G SFP+ ports, 115 Gbps non-blocking throughput, and DC power backup support.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• 22 multi-speed 2.5 GbE RJ45 ports
• 2 multi-speed 10 GbE RJ45 ports
• 4 10G SFP+ ports
• Layer 3 switching features
• 230 Gbps switching capacity
• 115 Gbps total non-blocking throughput
• 171.12 Mpps forwarding rate
• Supports up to 1,000 VLANs
• 32,000-entry MAC address table
• 12,000 ARP entries
• 12,000 IPv4 routes
• 1.3" touchscreen display with AR switch management
• Etherlighting support on Ethernet and SFP+ interfaces
• DC power backup support with UniFi Power Backup
• DHCP server and DHCP relay
• Inter-VLAN routing
• Static routing
• LACP port aggregation
• STP and RSTP
• QoS with DSCP
• Advanced IGMP configuration and IGMP snooping
• 802.1X control
• Rack-mountable 1U form factor
TECHNICAL SPECIFICATIONS
• Model / MFR Part Number: USW-Pro-HD-24
• 2.5 GbE RJ45 Ports: (22), supporting 2.5G/1G/100M/10M
• 10 GbE RJ45 Ports: (2), supporting 10G/5G/2.5G/1G/100M
• SFP+ Ports: (4), supporting 10G/1G
• Switching Capacity: 230 Gbps
• Total Non-Blocking Throughput: 115 Gbps
• Forwarding Rate: 171.12 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• ARP Entries: 12,000
• IPv4 Routes: 12,000
• Packet Buffer Size: 2 MB
• Layer 3: Supported
• DHCP Server: Supported for local networks
• DHCP Relay: Supported
• Inter-VLAN Routing: Supported for local networks
• Static Routing: Supported for local networks
• LACP Port Aggregation: Supported
• STP / RSTP: Supported
• QoS: DSCP
• Advanced IGMP: Querier, Fast Leave, Router Port
• IGMP Snooping: Supported
• 802.1X Control: Supported
• MAC-Based ACLs and Device Isolation: Supported
• DHCP Snooping and Guarding: Supported
• Egress Rate Limiting: Supported
• Flow Control: Supported
• Storm Control: Supported
• Multicast and Broadcast Rate Limiting: Supported
• MAC Address Blocking: Supported
• IP-Based ACLs and Network Isolation: Supported
• MAC-Based Port Restriction: Supported
• Port Isolation: Supported
• Port Mirroring: Supported
• Jumbo Frames: Supported
• LLDP-MED: Supported
• Voice VLAN: Supported
• Loop Protection: Supported
• Pro AV Profiles: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
• Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
• Form Factor: 1U Rack Mount
• Weight Without Mounting Brackets: 4.2 kg (9.2 lb)
• Weight With Mounting Brackets: 4.3 kg (9.4 lb)
• Enclosure Material: SGCC steel
• Maximum Power Consumption: 60W
• Primary Power: Universal 100–240V AC, 50/60 Hz input
• Backup Power Interface: USP RPS DC input
• Power Supply: Internal AC/DC, 60W
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 102.36 BTU/hr
• Management: Ethernet and AR
• LCM Display: 1.3" touchscreen
• Etherlighting: Ethernet and SFP+
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 10–90% noncondensing
• Certifications: CE, FCC, IC
Specifications
Technical specifications
| Ubiquiti USW-Pro-HD-24 | |
|---|---|
| General | |
| Model | USW-Pro-HD-24 |
| Product Type | Layer 3 Etherlighting™ Switch |
| Form Factor | Rack mount (1U) |
| Management Interface | 1.3" touchscreen, Ethernet, AR |
| Physical | |
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight (without mounting brackets) | 4.2 kg (9.2 lb) |
| Weight (with mounting brackets) | 4.3 kg (9.4 lb) |
| Enclosure Material | SGCC steel |
| Power & Electrical | |
| Max. Power Consumption | 60W |
| Power Supply | AC/DC, internal, 60W |
| Power Input | (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation (Excluding PoE Output) | 102.36 BTU/hr |
| DC Power Backup | ✓ (Requires UniFi Power Backup) |
| Networking & Connectivity | |
| 2.5 GbE RJ45 Ports | 22 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 Ports | 2 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ Ports | 4 (10G/1G) |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Packet Buffer Size | 2 MB |
| MAC Address Table Size | 32,000 |
| Supported VLANs | 1,000 |
| Layer 3 Routing – ARP Entries | 12,000 |
| Layer 3 Routing – IPv4 Routes | 12,000 |
| Layer 3 Switching | ✓ |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
