Ubiquiti USW-Pro-Max-24 UniFi Pro Max 24 Layer 3 Etherlighting Switch, 16x GbE, 8x 2.5GbE, 2x 10G SFP+

Ubiquiti · Routers and Switches

Ubiquiti USW-Pro-Max-24 UniFi Pro Max 24 Layer 3 Etherlighting Switch, 16x GbE, 8x 2.5GbE, 2x 10G SFP+

Part number / SKU
USW-PRO-MAX-24
  • 16x 1 GbE, 8x 2.5 GbE RJ45

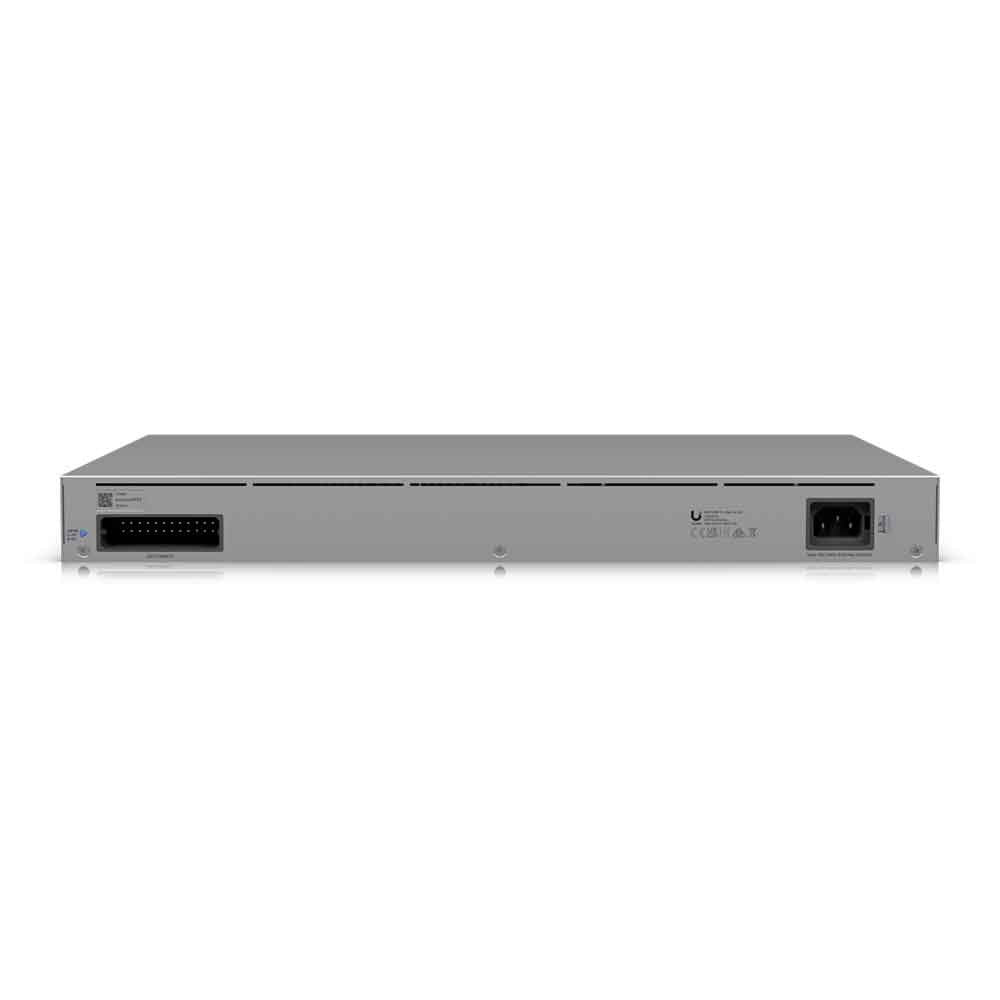

  • Internal AC, USP RPS DC backup
  • Rackmount 1U

Works with: UniFi USP RPS redundant power system (DC backup input) Confirmed by the manufacturer

$497.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

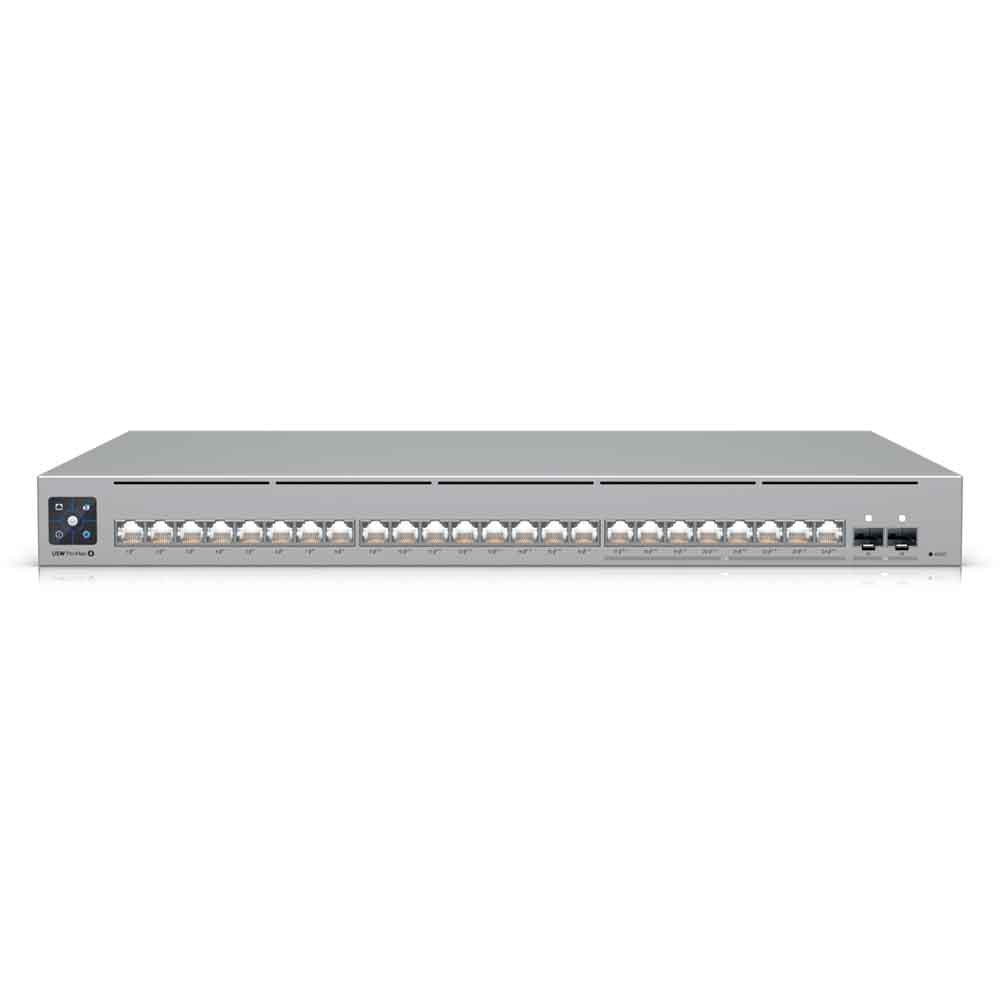

The Ubiquiti USW-Pro-Max-24 (UniFi Pro Max 24) is a 1U rackmount Layer 3 Etherlighting switch managed through the UniFi Network application. It has sixteen Gigabit RJ45 ports, eight 2.5 GbE RJ45 ports and two 10G SFP+ ports, with a 1.3 inch touchscreen.

Ubiquiti rates the switch at 112 Gbps switching capacity, 56 Gbps non-blocking throughput and 83 Mpps forwarding, with 1,000 VLANs, a 16,000 entry MAC table and 256 IPv4 static routes. Layer 3 features include inter-VLAN routing, static routing, DHCP server and DHCP relay. An internal 60 W AC/DC supply takes 100 to 240 V AC, a USP RPS DC input adds power backup, and maximum consumption is 50 W.

Etherlighting ports light up to show port location, speed and link, and the native VLAN. The SGCC steel chassis fits racks 400 to 1200 mm deep and is rated for -5 to 40 °C ambient.

  • Best for: Rack networks that need 2.5 GbE and Gigabit ports plus Layer 3 routing, without PoE.
  • System fit: UniFi switch managed with UniFi Network version 8.0.24 and later; DC backup through the UniFi USP RPS.
  • Important to know: This model has no PoE output; SFP+ modules and the RPS unit are not included.

Why teams choose it

Built for reliable networks

  • Mixed speed ports

    Sixteen GbE and eight 2.5 GbE RJ45 ports plus two 10G SFP+.

  • Layer 3 routing

    Inter-VLAN routing, static routing, DHCP server and DHCP relay.

  • Etherlighting

    Port lights show location, speed and link, and native VLAN.

  • Power backup ready

    USP RPS DC input alongside the internal AC supply.

Specifications

Technical specifications

General
Brand Ubiquiti
Model USW-Pro-Max-24
Product Name UniFi Pro Max 24
Device Type Layer 3 managed Etherlighting switch
Form Factor Rackmount 1U
Layer L3
Interfaces
Ethernet Ports 16x 1 GbE, 8x 2.5 GbE RJ45
1 GbE Port Speeds 1G/100M/10M
2.5 GbE Port Speeds 2.5G/1G/100M/10M
SFP+ Ports 2x 10G SFP+ (10G/1G)
Port Lighting Etherlighting
Display 1.3 in touchscreen LCM
Performance
Switching Capacity 112 Gbps
Non-Blocking Throughput 56 Gbps
Forwarding Rate 83 Mpps
Supported VLANs 1,000
MAC Address Table 16,000 entries
IPv4 Static Routes 256
Packet Buffer 1.5 MB
Access Lists 128 IPv4, 128 MAC
Power
Power Method Internal AC, USP RPS DC backup
AC Input 100 to 240 V AC, 50/60 Hz
Power Supply AC/DC, internal, 60 W
Max Power Consumption 50 W
Heat Dissipation 170.6 BTU/hr
ESD Protection Air ±16 kV, contact ±12 kV
Physical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 in)
Weight 4.2 kg (9.3 lb) without brackets; 4.3 kg (9.5 lb) with brackets
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400 to 1200 mm (15.7 to 47.2 in)
Environmental
Operating Temperature -5 to 40 °C (23 to 104 °F)
Operating Humidity 10 to 90% noncondensing
Software and Management
Management UniFi Network, version 8.0.24 and later
Management Interface Ethernet in-band
Layer 3 Features DHCP server, DHCP relay, inter-VLAN routing, static routing
Layer 2 Features LACP, STP and RSTP, IGMP snooping with querier, 802.1X, DHCP snooping, ACLs, storm control, port isolation, port mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, QoS (DSCP), Pro AV profiles
Listings and Approvals
Certifications CE, FCC, IC, Anatel
NDAA Compliant Yes
