Ubiquiti USW-Pro-XG-24 24-Port 10GbE Layer 3 PoE Switch 25G SFP28
- EhubAmerica SKU
- USW-Pro-XG-24
- Rack mount (1U)
$1,176.28
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
- 1.3' touchscreen with AR (Augmented Reality) switch management
- 8 multi-speed 2.5 GbE ports (2.5G / 1G / 100M / 10M)
- 16 multi-speed 10 GbE ports (10G / 5G / 2.5G / 1G / 100M / 10M)
- 2 × 25G SFP28 ports
- Layer 3 switching features
- DC power backup support (requires UniFi Power Backup)
- Reset button
- AC power input
- Safety latch

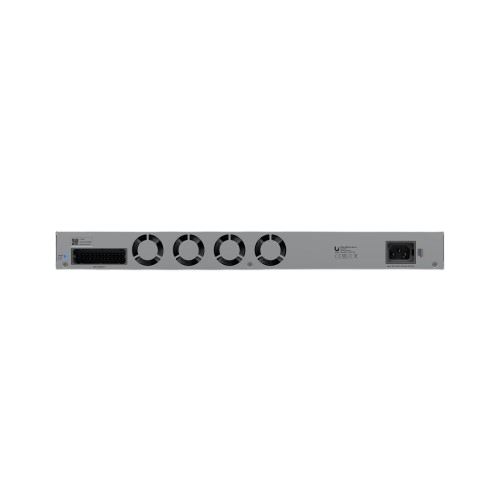

- Active cooling system (multiple rear fans)
- Technical Specification
- Overview: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7')
- Port Layout: 2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
- 10 GbE RJ45: 16 (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28: 2 (25G/10G/1G)
- Redundancy: DC Power Backup
- Layer 3: ✓
- Form Factor: Rack mount (1U)
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: USW-Pro-XG-24
- Product Type: Fiber
- 1.3' touchscreen with AR (Augmented Reality) switch management
- 8 multi-speed 2.5 GbE ports (2.5G / 1G / 100M / 10M)
- 16 multi-speed 10 GbE ports (10G / 5G / 2.5G / 1G / 100M / 10M)
- 2 × 25G SFP28 ports
- Layer 3 switching features
- DC power backup support (requires UniFi Power Backup)
- Reset button
- AC power input
- Safety latch
- Active cooling system (multiple rear fans)
- Overview: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7')
- Port Layout: 2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
- 10 GbE RJ45: 16 (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28: 2 (25G/10G/1G)
- Redundancy: DC Power Backup
- Layer 3: ✓
- Form Factor: Rack mount (1U)
- Etherlighting™: ✓
- Performance: Switching Capacity: 460 Gbps
- Total Non-Blocking Throughput: 230 Gbps
- Forwarding Rate: 342 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 128,000
- L3 Table Size: ARP Entries: 128,000
- IPv4 Routes: 256,000
- Packet Buffer Size: 8 MB
- Access Lists: IPv4: 256
- MAC: 256
- Layer 3 Features: DHCP Server (Local Networks): ✓
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | USW-Pro-XG-24 |
| Brand | Ubiquiti |
| Description | Professional-grade 24-port Layer 3 Etherlighting™ switch with 16 × 10 GbE, 8 × 2.5 GbE, and 2 × 25G SFP28 ports |
| Physical | |
| Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7") |
| Form Factor | Rack mount (1U) |
| Cooling | Active cooling system with multiple rear fans |
| Power & Electrical | |
| Power Input | AC power |
| DC Power Backup | Supported (requires UniFi Power Backup) |
| Networking & Connectivity | |
| 2.5 GbE RJ45 Ports | 8 (supports 2.5G / 1G / 100M / 10M) |
| 10 GbE RJ45 Ports | 16 (supports 10G / 5G / 2.5G / 1G / 100M / 10M) |
| 25G SFP28 Ports | 2 (supports 25G / 10G / 1G) |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Packet Buffer Size | 8 MB |
| MAC Address Table Size | 128,000 |
| Supported VLANs | 1,000 |
| Layer 3 Routing Table Size (IPv4) | 256,000 routes |
| Layer 3 ARP Entries | 128,000 |
| Access Control Lists (IPv4) | 256 |
| Access Control Lists (MAC) | 256 |
| Layer 3 Features | DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing (Local Networks), Static Routing (Local Networks) |
| Layer 2 Features | LACP Port Aggregation, STP & RSTP, IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control |
