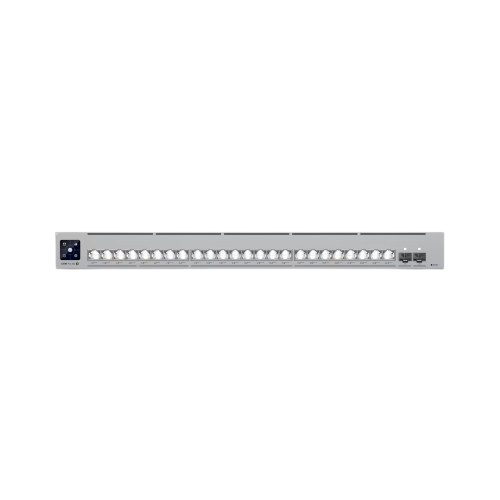

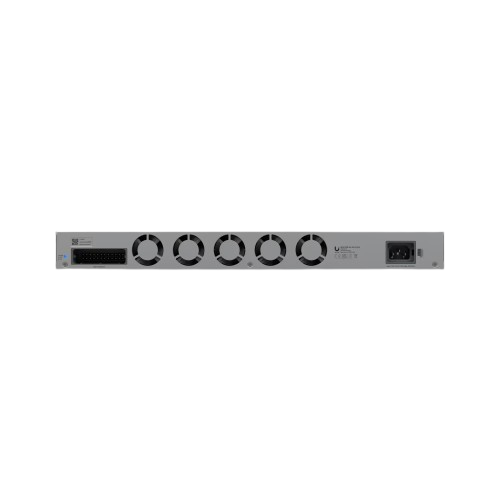

Ubiquiti USW-Pro-XG-24-PoE 24-Port 10GbE PoE+++ Layer 3 Switch 720W
- EhubAmerica SKU
- USW-Pro-XG-24-PoE
- Rack mount (1U)
$1,991.99
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
- 1.3' touchscreen with AR switch management
- 8 Multi-speed 2.5 GbE PoE+++ ports (2.5G/1G/100M/10M)
- 16 Multi-speed 10 GbE PoE+++ ports (10G/5G/2.5/1G/100M/10M)
- 720w total PoE supply
- 2 25G SFP28 ports
- Reset button
- DC power backup
- Layer 3 switching features
- Technical Description
- Overview: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7')
- Port Layout: 2.5 GbE RJ45 8 (All PoE+++) (2.5G/1G/100M/10M)
- 10 GbE RJ45 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28 2 (25G/10G/1G)
- Max. PoE Output: Up to PoE+++
- Total PoE Availability: 720W
- Redundancy: DC Power Backup
- Layer 3: ✓
- Form Factor: Rack mount (1U)
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: USW-Pro-XG-24-PoE
- Product Type: Fiber
- 1.3' touchscreen with AR switch management
- 8 Multi-speed 2.5 GbE PoE+++ ports (2.5G/1G/100M/10M)
- 16 Multi-speed 10 GbE PoE+++ ports (10G/5G/2.5/1G/100M/10M)
- 720w total PoE supply
- 2 25G SFP28 ports
- Reset button
- DC power backup
- Layer 3 switching features
- Overview: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7')
- Port Layout: 2.5 GbE RJ45 8 (All PoE+++) (2.5G/1G/100M/10M)
- 10 GbE RJ45 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28 2 (25G/10G/1G)
- Max. PoE Output: Up to PoE+++
- Total PoE Availability: 720W
- Redundancy: DC Power Backup
- Layer 3: ✓
- Form Factor: Rack mount (1U)
- Etherlighting™: ✓
- Performance: Switching Capacity: 460 Gbps
- Total Non-Blocking Throughput: 230 Gbps
- Forwarding Rate: 342 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 128,000
- L3 Table Size: ARP Entries: 128,000
- IPv4 Routes: 256,000
- Packet Buffer Size: 8 MB
- Layer 3 Features: DHCP Server (Local Networks): ✓
- DHCP Relay: ✓
- Inter-VLAN Routing (Local Networks): ✓
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | USW-Pro-XG-24-PoE |
| Product Type | Professional-grade Layer 3 Ethernet PoE+++ Switch |
| Form Factor | Rack mount (1U) |
| Management Interface | 1.3" touchscreen with AR switch management |
| Physical | |
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Power & Electrical | |
| Total PoE Supply | 720W |
| PoE Standard | PoE+++ |
| Power Redundancy | DC Power Backup |
| Networking & Connectivity | |
| 2.5 GbE RJ45 | 8 ports (All PoE+++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 16 ports (All PoE+++) (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 | 2 ports (25G/10G/1G) |
| Switching Capacity | 460 Gbps |
| Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Packet Buffer Size | 8 MB |
| MAC Address Table Size | 128,000 |
| Supported VLANs | 1,000 |
| ARP Entries | 128,000 |
| IPv4 Routes | 256,000 |
| Layer 3 Features | DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing (Local Networks), Static Routing (Local Networks) |
| Layer 2 Features | LACP Port Aggregation, STP & RSTP, QoS (DSCP), Advanced IGMP Configuration (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control |
| Pro AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| Etherlighting™ | Yes |
