Ubiquiti · Routers and Switches

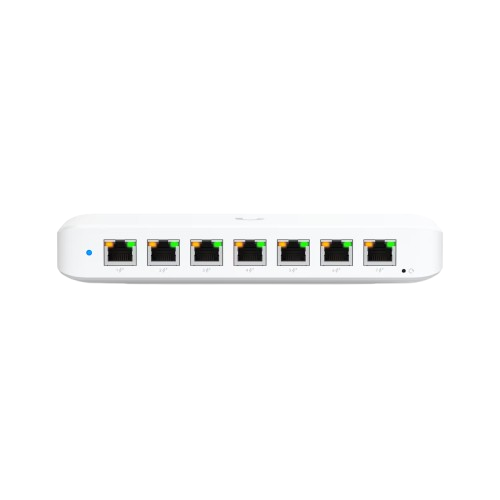

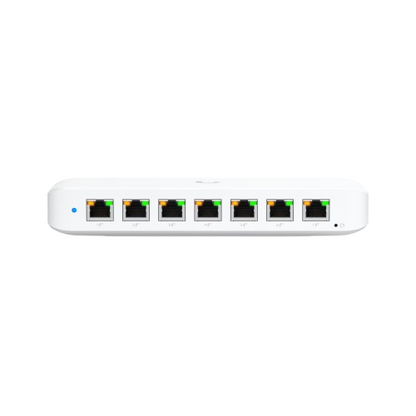

Ubiquiti USW-Ultra-210W 8-Port Gigabit PoE+ Switch 210W
- EhubAmerica SKU
- USW-Ultra-210W
- 8x Gigabit RJ45 (7x PoE+; 1x PoE++ input)
- Compact desktop, wall, magnetic
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti USW-Ultra-210W compact Layer 2 Gigabit Ethernet switch with 8 RJ45 ports, 7 PoE+ outputs, PoE++ input, 210W external AC/DC power supply, and desktop, wall, or magnetic mounting options.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• 8 x 1 GbE RJ45 ports
• 7 x PoE+ ports
• 1 x PoE++ input
• Up to PoE+ output
• 16 Gbps switching capacity
• 8 Gbps total non-blocking throughput
• 12 Mpps forwarding rate
• Supports up to 256 VLANs
• 4,000-entry MAC address table
• Layer 2 switching features
• Compact desktop, wall, and magnetic mounting options
• Ethernet management
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model / Part Number: USW-Ultra-210W
• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3 in)
• Ports: 8 x 1 GbE RJ45
• PoE+: 7 ports
• PoE++: 1 input
• Maximum PoE Wattage per PoE+ Port: 30W
• PoE Availability with PoE++ Input: 42W
• PoE Availability with PoE+ Input: 16W
• PoE Availability with 60W PoE Adapter Input: 42W
• PoE Availability with 60W AC Adapter Input: 52W
• PoE Availability with 210W AC Adapter Input: 202W
• Switching Capacity: 16 Gbps
• Total Non-Blocking Throughput: 8 Gbps
• Forwarding Rate: 12 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 4,000
• Layer 2 Features: STP/RSTP, egress rate limiting, flow control, storm control, multicast/broadcast rate limiting, port isolation, port mirroring, jumbo frames, and loop protection
• Maximum Power Consumption with PoE Input: 9W excluding PoE output
• Maximum Power Consumption with Adapter Input: 8W excluding PoE output
• Maximum Power Consumption with 210W AC Adapter: 210W including PoE output
• Power Method: AC/DC adapter or PoE++
• Power Input: DC or PoE
• Power Supply: External AC/DC, 210W
• Supported Voltage Range: 50–57V DC/PoE
• Management: Ethernet
• Heat Dissipation Excluding PoE Output: 30.708 BTU/hr or 27.296 BTU/hr, depending on power input
• Device Weight: 320 g (11.3 oz)
• Wall Mount Weight: 45 g (1.6 oz)
• Adapter Weight: 770 g (1.7 lb)
• Enclosure Material: Polycarbonate
• Operating Temperature with PoE++ Input: -30 to 60°C (-22 to 140°F)
• Operating Temperature with 210W AC Adapter Input: -20 to 60°C (-4 to 140°F)
• Operating Humidity: 10% to 90% noncondensing
• Certifications: CE, FCC, IC
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | USW-Ultra-210W |
| Description | Layer 2, 8-port Gigabit PoE+ switch with versatile mounting options |
| Physical | |
| Dimensions | 203 x 76 x 33 mm |
| Weight (Device) | 320 g |
| Weight (Wall Mount) | 45 g |
| Weight (Adapter) | 770 g |
| Enclosure Material | Polycarbonate |
| Form Factor | Compact desktop, wall, magnetic |
| Power & Electrical | |
| Power Supply | AC/DC external, 210W |
| Power Input Methods | DC input, PoE |
| Supported Voltage Range | 50–57V DC/PoE |
| Max. Power Consumption (Excluding PoE Output) | 9W with PoE input; 8W with adapter input |
| Max. Power Consumption (Including PoE Output) | 210W with 210W AC adapter input |
| Heat Dissipation (Excluding PoE Output) | 30.708 BTU/hr; 27.296 BTU/hr |
| Networking & Connectivity | |
| Ports | 8x Gigabit RJ45 (7x PoE+; 1x PoE++ input) |
| Max. PoE Output | PoE+ |
| PoE+ Ports | 7 |
| PoE++ Ports | 1 |
| Max. PoE Wattage per Port | 30W (PoE+) |
| Total PoE Availability | PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: 202W |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | STP, RSTP, egress rate limit, flow control, storm control, multicast broadcast rate limiting, port isolation, port mirroring, jumbo frames, loop protection |
| Management | Ethernet |
| Environmental | |
| Ambient Operating Temperature (PoE++ input) | -30 to 60°C |
| Ambient Operating Temperature (210W AC adapter input) | -20 to 60°C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
