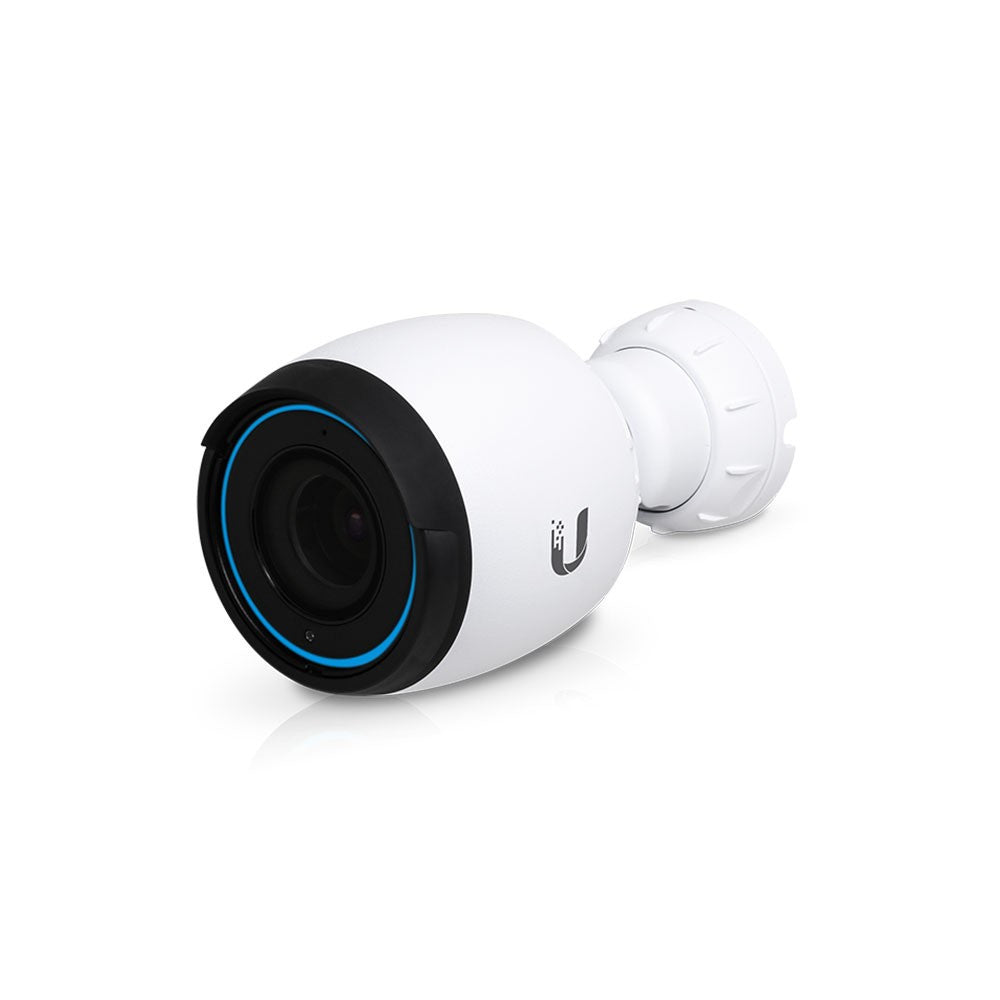

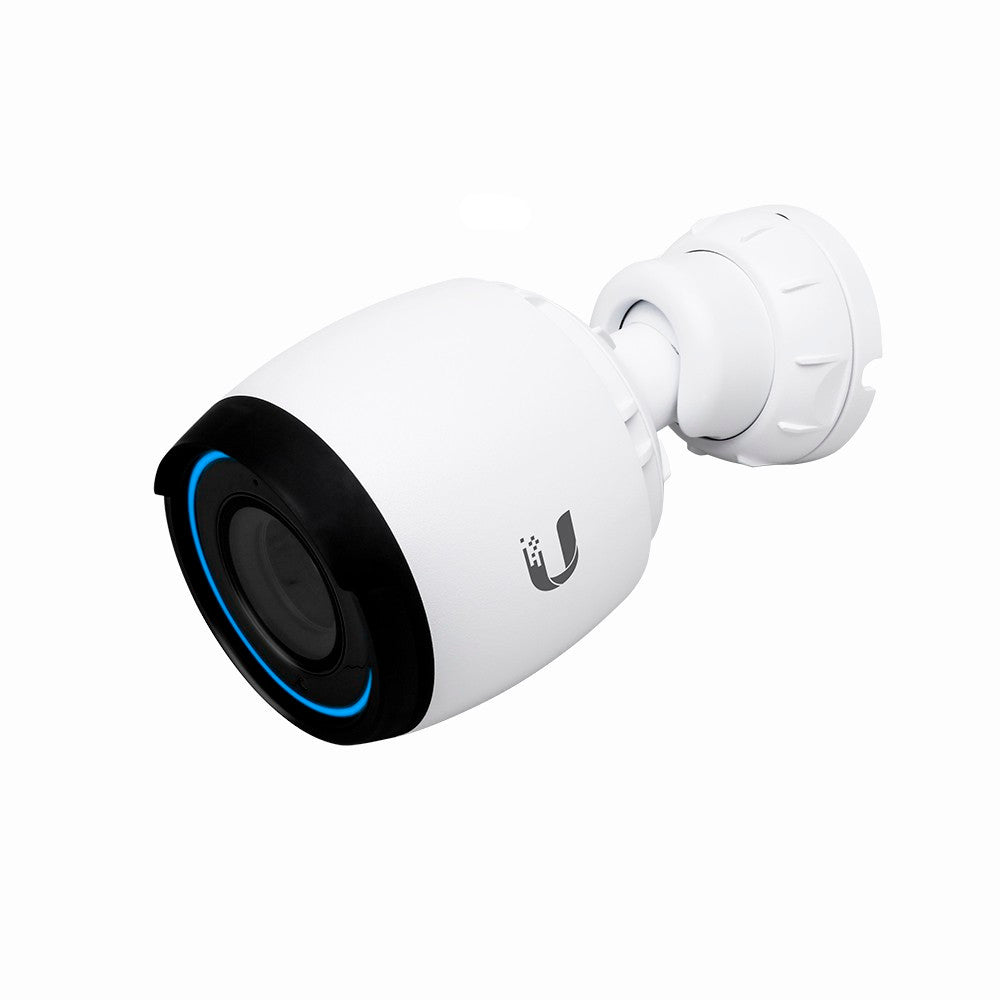

Ubiquiti UVC-G4-PRO 4K IP Security Camera 3x Optical Zoom IR PoE
- EhubAmerica SKU
- UVC-G4-PRO
- 3840 x 2160
- 4.24-12.66 mm varifocal
- H.264
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
4K Indoor/Outdoor IP Camera with Infrared and Optical Zoom designed for long-range, indoor and outdoor surveillance
PRODUCT TYPE
IP Camera
KEY FEATURES
• 4K Ultra HD (3840 x 2160), 24 FPS
• 3x optical zoom
• 4.24-12.66mm Motorized Varifocal Lens
• IR LEDs for Low-Light Illumination
• Waterproof, IP67-rated casing
• Built-In Microphone
• POE U-POE-af
• Dimensions - Ø86 x 153 mm (Ø3.39 x 6.02")
• Weight - 700 g (1.54 lb)
• Enclosure materials - Polycarbonate, aluminum alloy
• Mounting material - Aluminum alloy
• Weatherproofing - IP67
• Sensor- 1/2" 8 MP sensor
• Lens - F 4.1 - 12.3 mm; f/1.53 -f/3.3
• View angle Wide: H 110°, V 60°, D 128°
• Zoom: H 40°, V 20°, D 40°
• Night mode - Built-in IR LED illumination and IR cut filter
• Video compression - H.264
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UVC-G4-PRO
• Product Type: IP Camera
• 4K Ultra HD (3840 x 2160), 24 FPS
• 3x optical zoom
• 4.24-12.66mm Motorized Varifocal Lens
• IR LEDs for Low-Light Illumination
• Waterproof, IP67-rated casing
• Built-In Microphone
• POE U-POE-af
• Dimensions - Ø86 x 153 mm (Ø3.39 x 6.02")
• Weight - 700 g (1.54 lb)
• Enclosure materials - Polycarbonate, aluminum alloy
• Mounting material - Aluminum alloy
• Weatherproofing - IP67
• Sensor- 1/2" 8 MP sensor
• Lens - F 4.1 - 12.3 mm; f/1.53 -f/3.3
• View angle Wide: H 110°, V 60°, D 128°
• Zoom: H 40°, V 20°, D 40°
• Night mode - Built-in IR LED illumination and IR cut filter
• Video compression - H.264
• Resolution - 3840 x 2160 (16:9)
• Max. frame rate - 50 FPS
• Image settings - Flip, brightness, contrast, 50/60 Hz flicker reduction, WDR, hue, infrared, sharpness, saturation, de-noise
• Networking Interface - 10/100/1,000 MbE RJ45 port
• Max. power consumption - 12.5W
• Power method - PoE
• Button - Factory reset
• Mounting - Wall/ceiling/pole (Included)
• Operating temperature - -20 to 50° C (-4 to 122° F)
• Operating humidity - 0 to 90% noncondensing
• Certifications - FCC, IC, CE
INTENDED USE / APPLICATIONS
• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
Specifications
Technical specifications
| General | |
|---|---|
| Model | UVC-G4-PRO |
| Brand | Ubiquiti |
| Product Type | 4K Indoor/Outdoor IP Camera with Infrared and Optical Zoom |
| Physical | |
| Dimensions | Ø86 x 153 mm (Ø3.39 x 6.02") |
| Weight | 700 g (1.54 lb) |
| Enclosure Materials | Polycarbonate, aluminum alloy |
| Mounting Material | Aluminum alloy |
| Mounting Options | Wall/ceiling/pole (included) |
| Camera & Imaging | |
| Resolution | 3840 x 2160 |
| Resolution Detail | 4K Ultra HD, 16:9 |
| Sensor | 1/2" 8 MP |
| Max. Frame Rate | 50 FPS |
| Standard Frame Rate | 24 FPS |
| Lens | 4.24-12.66 mm varifocal |
| Lens Detail | Motorized; F4.1-12.3 mm; f/1.53-f/3.3 |
| Optical Zoom | 3x |
| Field of View (Wide) | H 110°, V 60°, D 128° |
| Field of View (Zoom) | H 40°, V 20°, D 40° |
| Video Compression | H.264 |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Image Settings | Flip, brightness, contrast, 50/60 Hz flicker reduction, WDR, hue, infrared, sharpness, saturation, de-noise |
| Power & Electrical | |
| Power Method | PoE |
| Max. Power Consumption | 12.5W |
| Networking & Connectivity | |
| Networking Interface | 10/100/1,000 MbE RJ45 port |
| Environmental | |
| Weatherproofing | IP67 |
| Operating Temperature | -20 to 50°C (-4 to 122°F) |
| Operating Humidity | 0 to 90% noncondensing |
| Compatibility | |
| Power Standard | POE, U-POE-af |
