Ubiquiti UVC-G5-Dome-Ultra 4MP 2K PoE Dome Camera 65ft IR AI Detection

PRODUCT OVERVIEW

The Ubiquiti UVC-G5-Dome-Ultra is a compact, tamper-resistant 2K HD PoE camera designed for low-profile indoor security. Equipped with advanced night vision, wide viewing angles, and AI-powered event detection, this camera provides an ideal solution for discreet yet reliable surveillance.

PRODUCT TYPE

IP Camera

KEY FEATURES

• High-Definition Video :
• 2K (4MP) resolution at 2688 x 1512 (16:9) for clear and detailed footage.
• It captures a 120.6° diagonal viewing angle for comprehensive coverage.
• Night Vision :
• 20 m (65 ft) IR range for visibility in low-light conditions.
• Built-in IR LED illumination and IR cut filter for optimal night mode performance.
• Tamper-Resistant Design : IK06-rated enclosure ensures durability and protection against vandalism.
• AI Event Detection : Detects and records events with advanced AI technology.

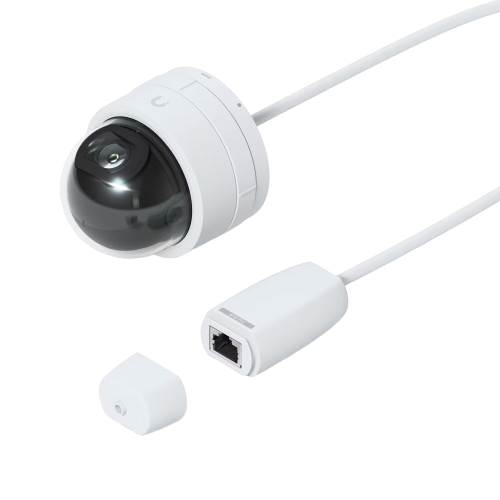

• PoE Connectivity : Simplifies installation by combining power and network data over a single cable.
• Compact and Stylish : Ø2.5 x 2.7 inches for unobtrusive mounting in indoor environments.
• Integration : Fully compatible with UniFi Protect software for seamless management and playback.
• Applications
• Home Security : Low-profile and discreet for monitoring living spaces.
• Office Surveillance : Ideal for entryways and workspaces requiring subtle security.
• Retail Monitoring : Prevent theft and vandalism while maintaining aesthetic appeal.
• Compatibilities
• POE U-POE-af

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: UVC-G5-Dome-Ultra
• Product Type: Security Cameras
• Mechanical

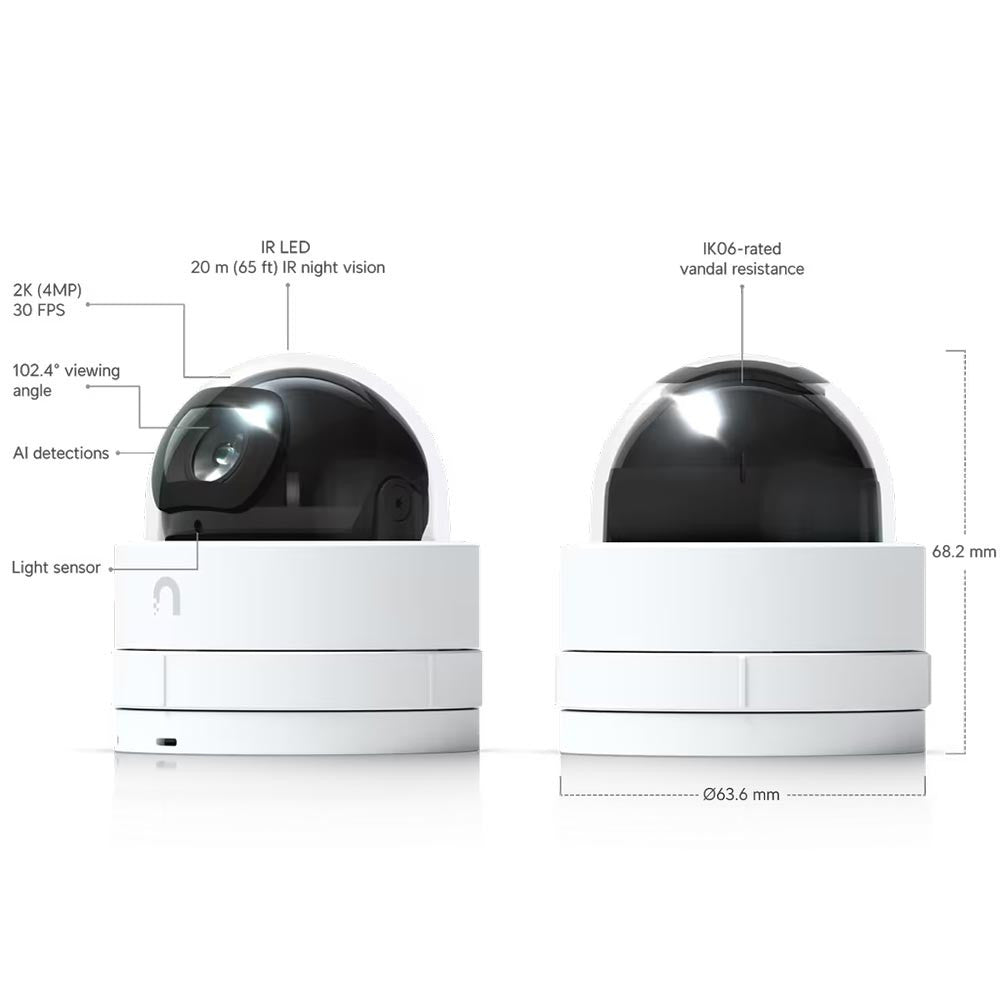

• Dimensions : Ø63.6 x 68.2 mm (Ø2.5 x 2.7').
• Weight : 175 g (6.2 oz).
• Enclosure Material : Aluminum alloy, polycarbonate.
• Mount Material : Stainless steel.
• Resistance : IK06-rated.
• Color : White.
• Optics
• Sensor : 1/2.4' CMOS.
• Lens : Fixed focal length.
• View Angle : Horizontal: 102.4°.
• Vertical: 54.9°.
• Diagonal: 120.6°.
• Night Mode : Built-in IR LED illumination and IR cut filter.
• IR Distance : 20 m (65 ft).
• Video
• Resolution : 4MP (2688 x 1512, 16:9).
• Max Frame Rate : 30 FPS.
• Image Settings : Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay.
• System
• Processor : Dual-core Arm® Cortex®-A7 chip.
• Networking Interface : 10/100 MbE RJ45 port.
• Max Power Consumption : 4.2W.
• Power Method : PoE (37–57V DC).
• Button : Factory reset.
• Mounting : Surface mount.
• Operating Conditions : Temperature: -20 to 40º C (-4 to 104º F).
• Humidity: 10 to 90% noncondensing.
• Certifications : FCC, IC, CE.

INTENDED USE / APPLICATIONS

• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
