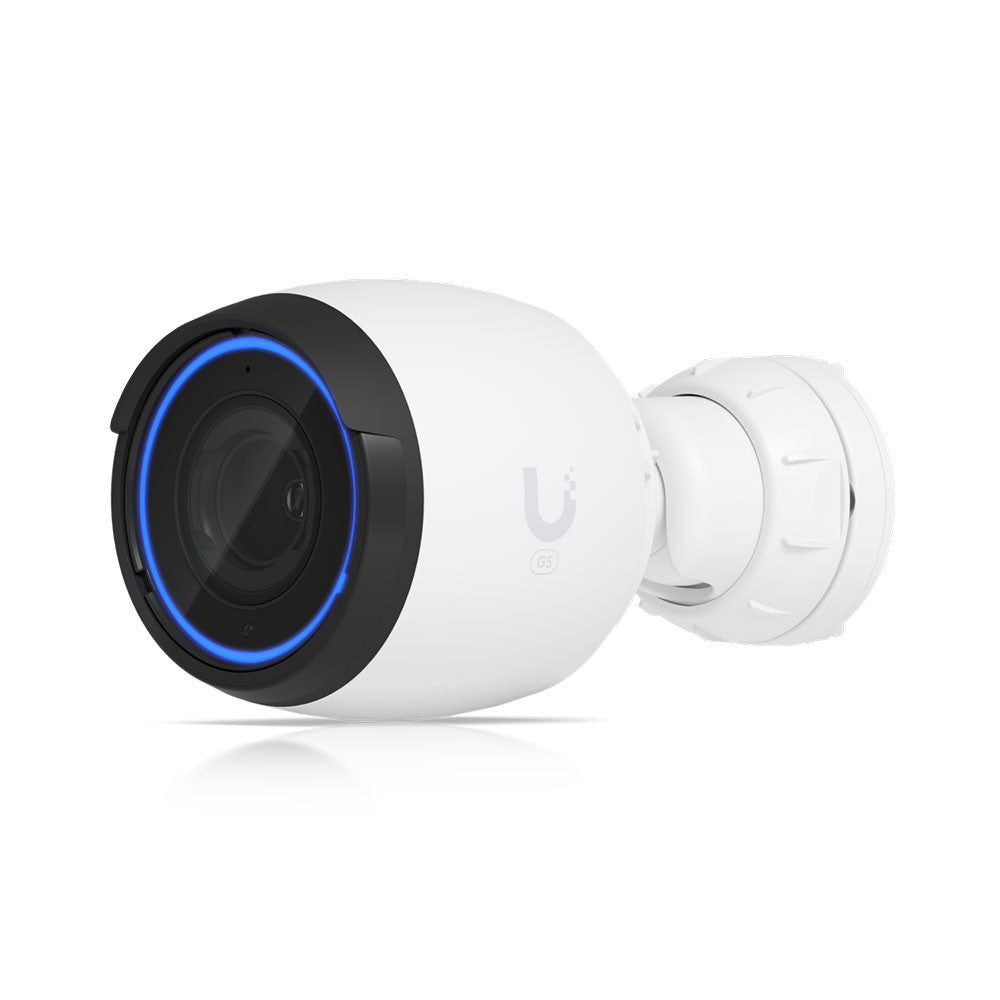

Ubiquiti UVC-G5-PRO 4K 8MP PoE IP Camera 3x Optical Zoom IR
- EhubAmerica SKU
- UVC-G5-PRO
- F 4.1–12.3 mm; f/1.53–f/3.3
- H.264
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Indoor/outdoor 4K PoE Camera with exceptional image performance and 3x optical zoom lens.
PRODUCT TYPE
IP Camera
KEY FEATURES
• 4K (8MP) video resolution
• 3x optical zoom
• 25 m (82 ft) IR night vision
• AI event detections
• Built-in IR LEDs and an automatic IR cut filter
• Record audio with an integrated microphone
• Connect and power using PoE
• Optional Enhancer for integrated floodlight and extended IR*
• Weatherproof (outdoor exposed)
• Mechanical Dimensions: Ø86 x 154.3 mm (Ø3.4 x 6.1")
• Weight: 650 g (1.4 lb)
• Enclosure materials: UV stabilized polycarbonate, aluminum alloy
• Mount material: Aluminum alloy
• Weatherproofing: IP65
• Resistance: IK04
• Optics Sensor: 1/2" 8MP sensor
• Lens: F 4.1 - 12.3 mm; f/1.53 - f/3.3
• View angle: Wide: H 109.9°, V 60°, D 127.7°
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UVC-G5-PRO
• Product Type: IP Camera
• 4K (8MP) video resolution
• 3x optical zoom
• 25 m (82 ft) IR night vision
• AI event detections
• Built-in IR LEDs and an automatic IR cut filter
• Record audio with an integrated microphone
• Connect and power using PoE
• Optional Enhancer for integrated floodlight and extended IR*
• Weatherproof (outdoor exposed)
• Mechanical Dimensions: Ø86 x 154.3 mm (Ø3.4 x 6.1")
• Weight: 650 g (1.4 lb)
• Enclosure materials: UV stabilized polycarbonate, aluminum alloy
• Mount material: Aluminum alloy
• Weatherproofing: IP65
• Resistance: IK04
• Optics Sensor: 1/2" 8MP sensor
• Lens: F 4.1 - 12.3 mm; f/1.53 - f/3.3
• View angle: Wide: H 109.9°, V 60°, D 127.7°
• Zoom: H 35°, V 19.8°, D 40°
• Night mode: Built-in IR LED illumination and IR cut filter
• Video Video compression: H.264
• Resolution: 8MP 3840 x 2160 (16:9)
• Max. frame rate: 30 FPS
• Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
• System Processor Dual-core Arm® Cortex®-A53 based chip
• Networking interface 10/100 MbE RJ45 port
• Max. power consumption Device: 10W
• Device with the Enhancer: 12.95W
• Power method: PoE
INTENDED USE / APPLICATIONS
• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
Specifications
Technical specifications
| Ubiquiti UVC-G5-PRO UniFi Protect Camera G5 Professional – Technical Specifications | |
|---|---|
| General | |
| Model | UVC-G5-PRO |
| Type | Indoor/Outdoor 4K PoE Camera |
| Video Resolution | 8MP (3840 x 2160, 16:9) |
| Max Frame Rate | 30 FPS |
| Video Compression | H.264 |
| Physical | |
| Dimensions | Ø86 x 154.3 mm (Ø3.4 x 6.1") |
| Weight | 650 g (1.4 lb) |
| Enclosure Materials | UV stabilized polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| Mounting Options | Wall, pole mount |
| Weatherproofing | IP65 |
| Impact Resistance | IK04 |
| Power & Electrical | |
| Power Method | PoE |
| Max Power Consumption (Device) | 10W |
| Max Power Consumption (with Enhancer) | 12.95W |
| Supported Voltage Range | 37–57V DC |
| Networking Interface | 10/100 MbE RJ45 port |
| Camera & Imaging | |
| Sensor | 1/2" 8MP |
| Lens | F 4.1–12.3 mm; f/1.53–f/3.3 |
| Optical Zoom | 3x |
| View Angle (Wide) | H 109.9°, V 60°, D 127.7° |
| View Angle (Zoom) | H 35°, V 19.8°, D 40° |
| IR Night Vision | 25 m (82 ft) |
| IR Illumination | Built-in IR LEDs with automatic IR cut filter |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Audio | |
| Microphone | Yes (can be disabled) |
| Environmental | |
| Operating Temperature | -20 to 50°C (-4 to 122°F) |
| Operating Humidity | 0 to 90% noncondensing |
| Compatibility | |
| Management Software | UniFi Protect (web application) |
| Mobile Apps | UniFi Protect iOS, UniFi Protect Android |
| Certifications | FCC, IC, CE |
