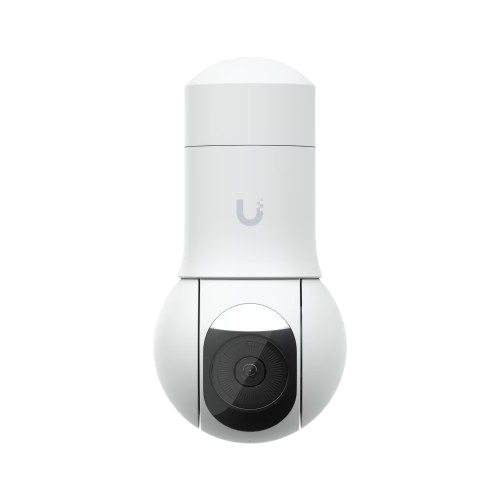

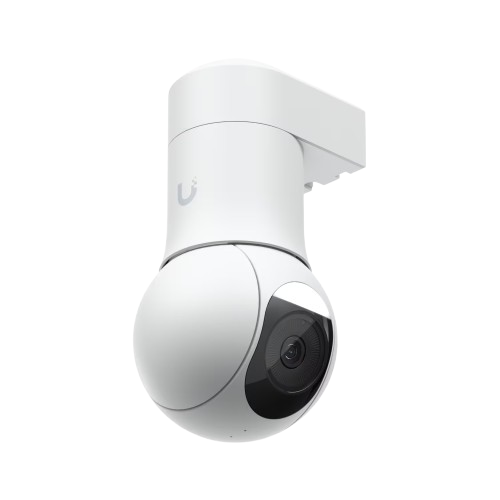

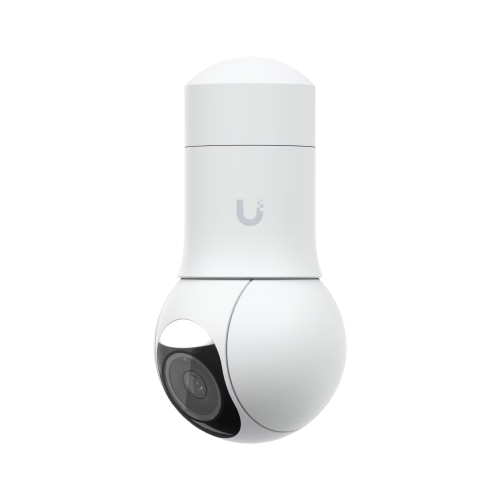

Ubiquiti UVC-G5-PTZ 2K 4MP PTZ IP Camera AI Tracking PoE+ IP66

PRODUCT OVERVIEW

The Ubiquiti UVC-G5-PTZ is a compact, weatherproof pan-tilt-zoom (PTZ) camera designed for advanced outdoor surveillance. Equipped with AI person tracking , 2x optical zoom , and a built-in spotlight, it delivers exceptional monitoring capabilities, including color night vision . Its rugged construction, versatile mounting options, and seamless integration with the UniFi Protect ecosystem make it a reliable solution for both residential and commercial security applications.

PRODUCT TYPE

IP Camera

KEY FEATURES

• High-Definition Video : 2K (4MP) resolution with 2x optical zoom for crisp, detailed footage.
• AI Event Detection : Automatic person tracking for intelligent monitoring.
• Night Vision : 20 m (65 ft) IR night vision with a built-in LED spotlight for enhanced color visibility in low light.
• Weatherproof Design : An IP66-rated enclosure ensures durability in outdoor conditions.
• Integrated Audio : Built-in microphone for audio recording, with optional disabled functionality.
• PoE+ Connectivity : Simplified installation with Power-over-Ethernet Plus.
• Flexible Mounting : Includes wall and pole mount options, with additional mounts available for various setups.
• Applications
• Outdoor Surveillance : Ideal for monitoring perimeters, driveways, and open spaces.
• Residential Security : Enhance home safety with advanced tracking and night vision.
• Commercial Monitoring : Suitable for office complexes, retail spaces, and parking lots.
• Critical Infrastructure : Reliable solution for high-security environments.

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: UVC-G5-PTZ
• Product Type: Security Cameras
• Mechanical
• Dimensions : Without Mount: Ø90 x 152.5 mm (Ø3.5 x 6')
• With Mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7')
• Weight : Without Mount: 580 g (1.3 lb)
• With Mount: 650 g (1.4 lb)
• Enclosure Material : Aluminum alloy, polycarbonate

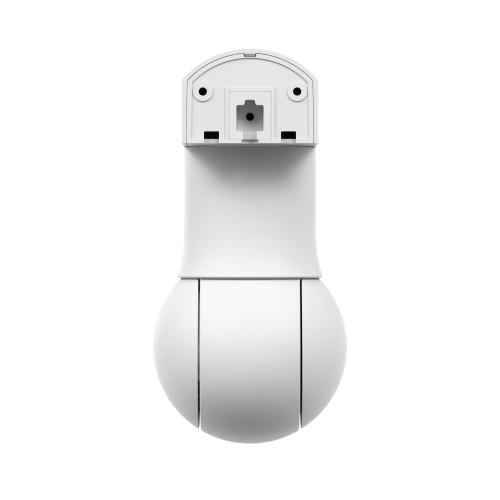

• Mount Material : Wall Mount: Polycarbonate
• Pole Mount: Aluminum alloy
• Pole Mount Diameter : 38–50 mm (1.5–2')
• Weatherproofing : IP66
• Resistance : IK04
• Optics
• Sensor : 5MP 1/2.7' CMOS
• Lens : F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4
• Viewing Angle : 16:9 Wide: H: 99.7°, V: 51.9°, D: 121°
• 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4°
• Night Mode : Built-in IR & LED illumination with IR cut filter
• IR Distance : 20 m (65 ft)
• Video
• Resolution : 4MP 2688 x 1512 (16:9)
• Max Frame Rate : 30 FPS
• System

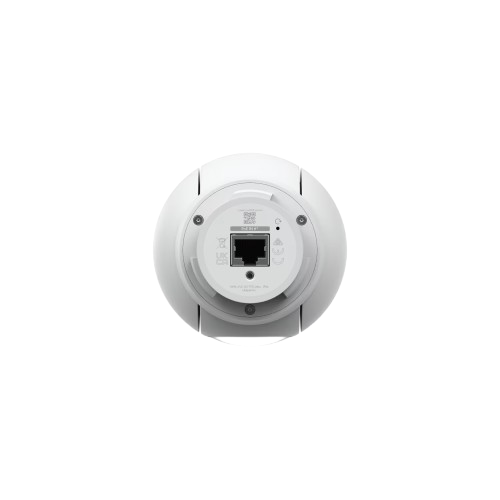

• Networking Interface : 10/100 MbE RJ45 port
• Max Power Consumption : 14W
• Power Method : PoE+
• Supported Voltage Range : 37–57V DC
• Floodlight Output : 400 lm
• Operating Temperature : -30 to 45°C (-22 to 113°F)
• Operating Humidity : 0 to 90% noncondensing

INTENDED USE / APPLICATIONS

• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
