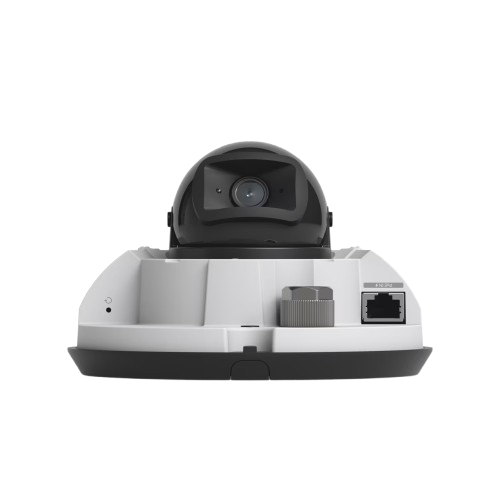

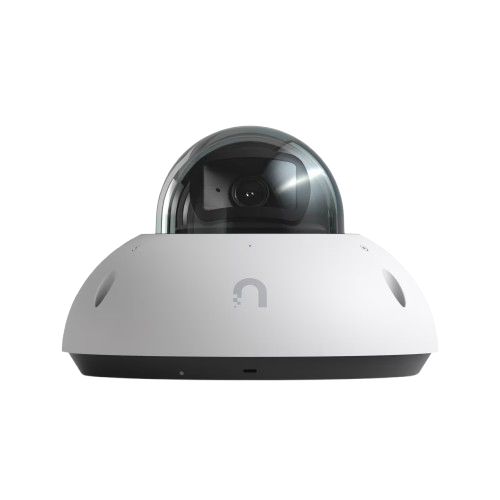

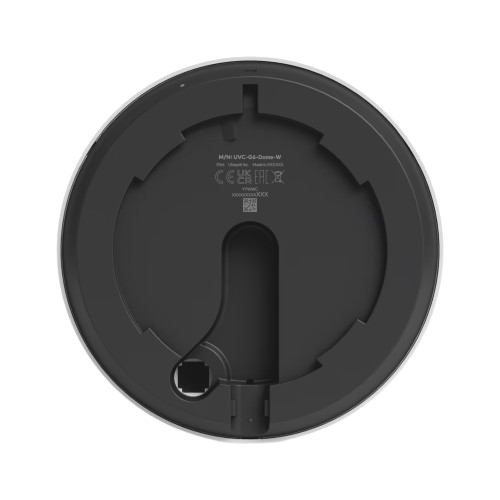

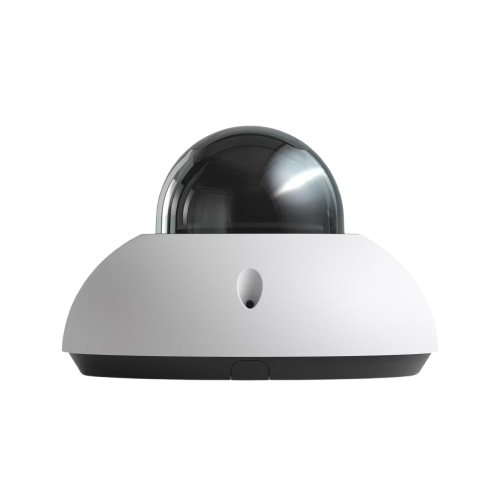

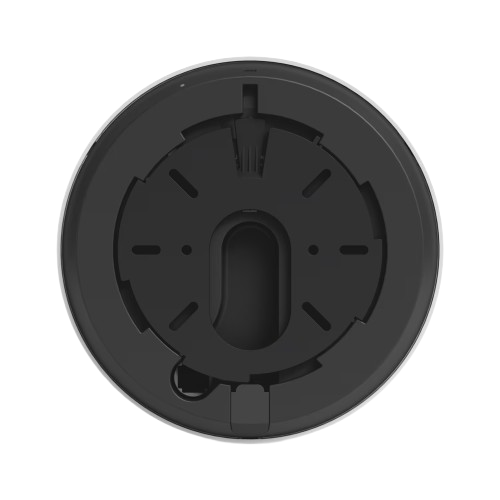

Ubiquiti UVC-G6-Dome-W 4K 8MP PoE Dome IP Camera 109.9° IR Night Vision
- EhubAmerica SKU
- UVC-G6-Dome-W
- 4K, 8MP 3840 x 2160
- Fixed focal length
$321.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
All-weather, vandal-proof 4K PoE camera with a 1/1.8' 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision ideal for discreet installations in high-traffic areas.
PRODUCT TYPE
IP Camera
KEY FEATURES
- 4K 1/1.8' 8MP image sensor
- Multi-TOPS AI engine
- Ultra-wide 109.9° viewing angle
- IR LED 30 m (98 ft) IR night vision
- Light sensor
- PoE RJ45 port
- Reset button
- Technical Specification
- Overview: Dimensions: Ø144.7x 96.3 mm (Ø5.7 x 3.8')
- IR Night Vision: 30 m (98 ft)
- Face Recognition: ✓
- License Plate Recognition: ✓
- Smart Detections (People, Vehicles, Animals): ✓
- Resolution: 4K
- Networking Interface: 10/100 MbE RJ45 port
- Field of View: H: 109.9°, V: 56.7°, D: 134.1°
- Audio: Microphone
- Weatherproofing: IP66
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: UVC-G6-Dome-W
- Product Type: Security Cameras
- 4K 1/1.8' 8MP image sensor
- Multi-TOPS AI engine
- Ultra-wide 109.9° viewing angle
- IR LED 30 m (98 ft) IR night vision
- Light sensor
- PoE RJ45 port
- Reset button
- Overview: Dimensions: Ø144.7x 96.3 mm (Ø5.7 x 3.8')
- IR Night Vision: 30 m (98 ft)
- Face Recognition: ✓
- License Plate Recognition: ✓
- Smart Detections (People, Vehicles, Animals): ✓
- Resolution: 4K
- Networking Interface: 10/100 MbE RJ45 port
- Field of View: H: 109.9°, V: 56.7°, D: 134.1°
- Audio: Microphone
- Weatherproofing: IP66
- Tamper Resistance: IK10
- Mounting: Ceiling, Wall mount (Included), Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional)
- Performance: Networking Interface: 10/100 MbE RJ45 port
- Video: Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Max. Frame Rate: 30 FPS
- Resolution: 8MP 3840 x 2160 (16:9)
- Optics: Sensor: 1/1.8' 8MP
- Lens: Fixed focal length
- Night Mode: Built-in IR LED illumination and IR cut filter
- Hardware: Max. Power Consumption: 9.25W
- Supported Voltage Range: 37—57V DC
- Power Method: PoE
INTENDED USE / APPLICATIONS
- Video surveillance and security monitoring
- Commercial, institutional, or industrial installations
- Integration with compatible network and recording systems
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | UVC-G6-Dome-W |
| SKU | UVC-G6-Dome-W |
| Resolution | 4K, 8MP 3840 x 2160 |
| Image Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| Physical | |
| Dimensions | Ø144.7 x 96.3 mm (Ø5.7 x 3.8") |
| Weight | 820 g (1.8 lb) |
| Enclosure Material | Aluminum alloy |
| Mount Material | Polycarbonate |
| Mounting Options | Ceiling, wall mount (included), gang box mounting plate, camera dual mount, flush mount, weather shield (optional) |
| Power & Electrical | |
| Power Method | PoE |
| Supported Voltage Range | 37–57V DC |
| Max. Power Consumption | 9.25W |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Camera & Imaging | |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Max. Frame Rate | 30 FPS |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| IR Night Vision Range | 30 m (98 ft) |
| Light Sensor | Yes |
| Face Recognition | Yes |
| License Plate Recognition | Yes |
| Smart Detections | People, vehicles, animals |
| Networking & Connectivity | |
| Networking Interface | 10/100 MbE RJ45 port |
| Multi-TOPS AI Engine | Yes |
| Audio | |
| Microphone | Yes |
| Environmental | |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Ambient Operating Temperature | -20 to 50°C (-4 to 122°F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
