Ubiquiti · Routers and Switches

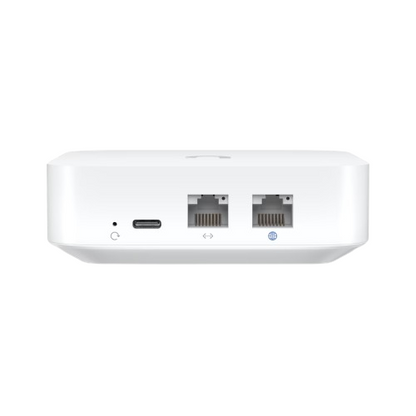

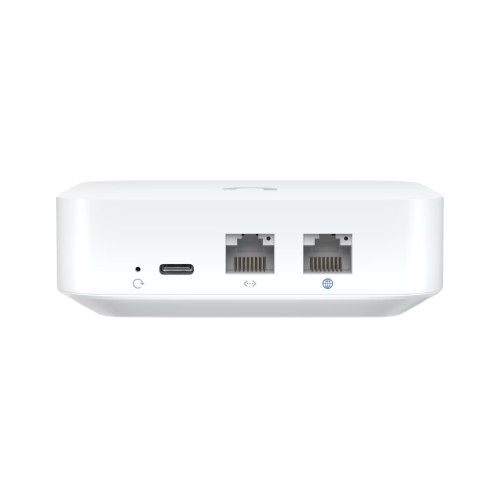

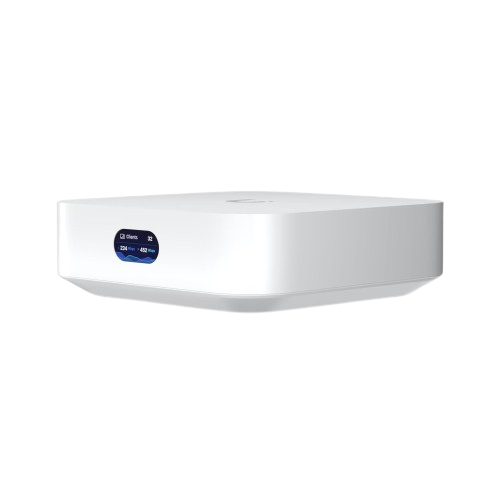

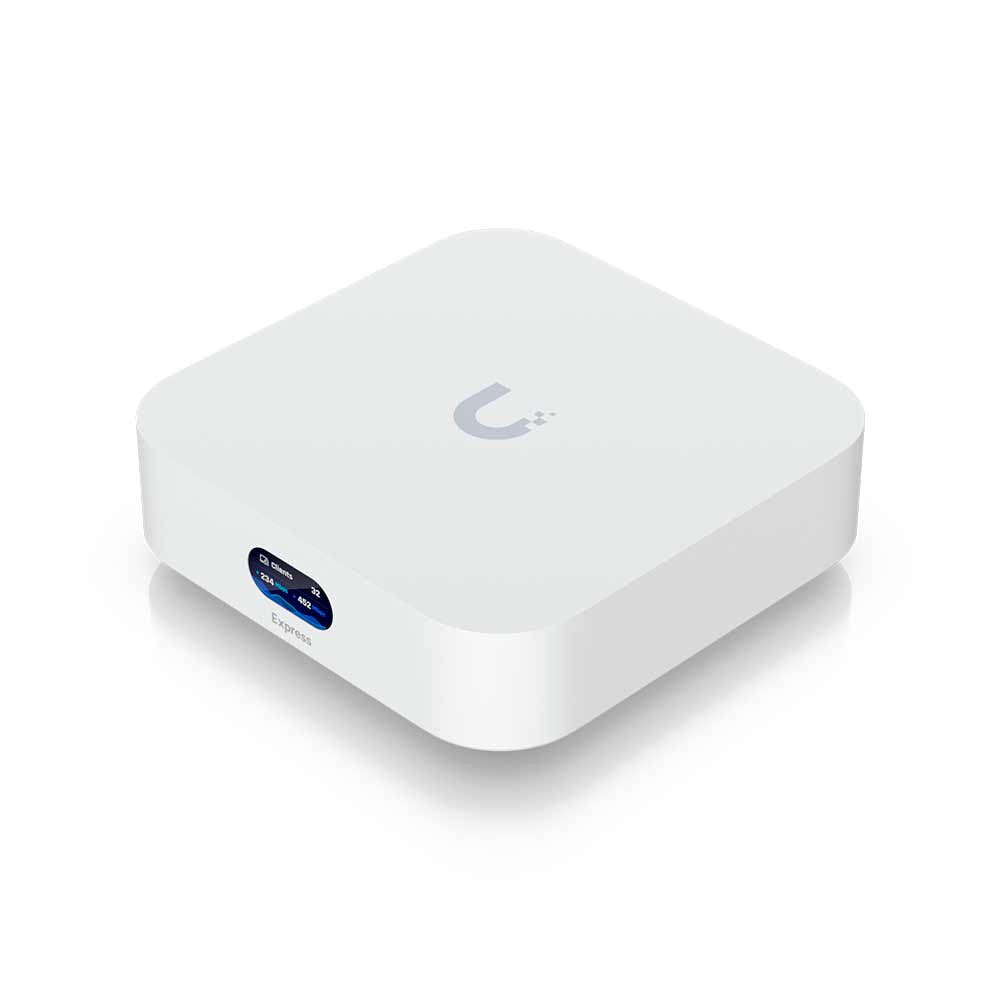

Ubiquiti UX-US UniFi Express Wi-Fi 6 Cloud Gateway 2.4 Gbps
- EhubAmerica SKU
- UX-US
- 2 x 2 DL/UL MU-MIMO (both 2.4 GHz and 5 GHz)
- USB Type-C
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti UX-US UniFi Express combines a UniFi Cloud Gateway and dual-band WiFi 6 access point with up to 2.4 Gbps 5 GHz throughput, 1,500 ft² coverage, 50+ client support, dual GbE ports, VPN features, and integrated network management.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Integrated UniFi Cloud Gateway and WiFi 6 access point
• Dual-band 2.4 GHz and 5 GHz wireless connectivity
• 2 x 2 DL/UL MU-MIMO on both frequency bands
• Maximum 5 GHz throughput rate of 2.4 Gbps
• Maximum 2.4 GHz throughput rate of 573.5 Mbps
• Coverage area up to 140 m² (1,500 ft²) per unit
• Supports 50+ concurrent WiFi clients
• Gateway mode supports management of up to four additional UniFi Network devices
• (1) GbE RJ45 WAN port
• (1) GbE RJ45 LAN port
• Integrated 0.96-inch status display
• Application-aware firewall rules
• Full stateful firewall protection
• Content, country, domain, and ad filtering
• Traffic identification
• VLAN traffic segmentation
• Policy-based WAN and VPN routing
• WireGuard, L2TP, OpenVPN, and IPsec VPN capabilities
• Teleport VPN support
• Guest traffic isolation
• WPA-PSK and WPA-Enterprise support
• WPA, WPA2, and WPA3 wireless security
• USB Type-C power
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model / Part Number: UX-US
• Product: UniFi Express
• Product Function: Cloud Gateway / WiFi 6 Access Point
• WiFi Standard: 802.11a/b/g/n/ac/ax (WiFi 6)
• Frequency Bands: 2.4 GHz and 5 GHz
• 2.4 GHz MIMO: 2 x 2 DL/UL MU-MIMO
• 5 GHz MIMO: 2 x 2 DL/UL MU-MIMO
• Maximum 2.4 GHz Throughput Rate: 573.5 Mbps
• Maximum 5 GHz Throughput Rate: 2.4 Gbps
• Maximum 2.4 GHz TX Power: 22 dBm
• Maximum 5 GHz TX Power: 25 dBm
• 2.4 GHz Antenna Gain: 4 dBi
• 5 GHz Antenna Gain: 5.15 dBi
• Antennas: (2) Internal 2.4/5 GHz dual-band antennas; (1) internal 2.4 GHz single-band Bluetooth antenna
• Coverage Area: Up to 140 m² (1,500 ft²)
• Concurrent WiFi Clients: 50+
• Networking Interfaces: (1) GbE RJ45 WAN; (1) GbE RJ45 LAN
• Power Method: USB Type-C, 5V DC/3A
• Maximum Power Consumption: 10W
• Display: 0.96-inch LCM status display
• Factory Reset Button: Yes
• VLAN Support: 802.1Q
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• Dimensions: 98 x 98 x 30 mm
• Weight: 302 g (10.7 oz)
• Enclosure Material: Polycarbonate
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Operating Humidity: 5% to 95% noncondensing
• Certifications: CE, FCC, IC
INTENDED USE / APPLICATIONS
• Home and small-business UniFi network deployments
• Combined cloud gateway and WiFi 6 access point installations
• Wireless deployments requiring coverage up to 1,500 ft² per unit
• Networks supporting 50+ WiFi clients
• UniFi installations requiring gateway management of up to four additional UniFi Network devices
Specifications
Technical specifications
| Ubiquiti UX-US UniFi Express Wi-Fi 6 Cloud Gateway | |
|---|---|
| General | |
| Model | UX-US |
| Product Type | Cloud Gateway with Wi-Fi 6 Access Point |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Connected Devices | 50+ |
| Physical | |
| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2 in) |
| Weight | 302 g (10.7 oz) |
| Enclosure Material | Polycarbonate |
| Status Display | 0.96-inch LCM |
| Power & Electrical | |
| Power Method | USB Type-C |
| Power Input | 5V DC/3A |
| Max Power Consumption | 10W |
| Wireless / RF | |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bands | 2.4 GHz and 5 GHz dual-band |
| Throughput Rate (2.4 GHz) | 573.5 Mbps |
| Throughput Rate (5 GHz) | 2.4 Gbps |
| Max TX Power (2.4 GHz) | 22 dBm |
| Max TX Power (5 GHz) | 25 dBm |
| MIMO Configuration | 2 x 2 DL/UL MU-MIMO (both 2.4 GHz and 5 GHz) |
| Antenna Configuration | (2) Internal 2.4G/5G dual-band antennas, (1) Internal 2.4G single-band Bluetooth antenna |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Antenna Gain (5 GHz) | 5.15 dBi |
| Networking & Connectivity | |
| LAN Port | (1) Gigabit RJ45 |
| WAN Port | (1) Gigabit RJ45 |
| Compatibility | |
| Compatible Models | International version, UX |
