Ubiquiti UXG-Fiber UniFi Gateway Fiber, 10G SFP+ and 10 GbE WAN, 5 Gbps IDS/IPS, 4-Port 2.5 GbE Switch

Ubiquiti · Routers and Switches

Ubiquiti UXG-Fiber UniFi Gateway Fiber, 10G SFP+ and 10 GbE WAN, 5 Gbps IDS/IPS, 4-Port 2.5 GbE Switch

Part number / SKU
UXG-Fiber
  • 2x SFP+, 1x 10G RJ45, 4x 2.5G
  • DC jack, 54 V DC, 1.1 A
  • Compact desktop
$318.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

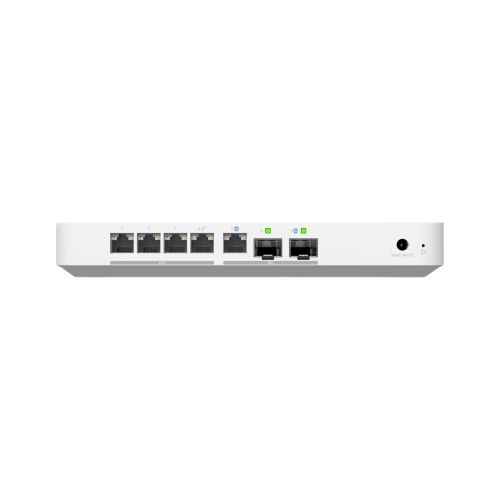

The Ubiquiti UniFi Gateway Fiber (UXG-Fiber) is a compact desktop 10G independent gateway with an integrated 4-port 2.5 GbE switch. It handles routing, firewall and IDS/IPS for a UniFi network and is managed with a CloudKey, Official UniFi Hosting or UniFi OS Server running UniFi Network.

Ubiquiti rates IDS/IPS throughput at 5 Gbps. WAN options are one 10G SFP+ port and one 10 GbE RJ45 port; the LAN side has one 10G SFP+ port and four 2.5 GbE RJ45 ports, one of them PoE+ with a 30 W budget. A quad-core ARM Cortex-A73 at 2.2 GHz with 2 GB of memory runs the gateway. It runs from the included 54 V DC adapter (1.1 A rating) and draws 25 W at most, not counting PoE output.

Ubiquiti lists multi-WAN load balancing, OSPF, license-free SD-WAN, Site Magic, IPsec, WireGuard and OpenVPN, an integrated RADIUS server, and IDS/IPS signatures of 55,000+ with CyberSecure. SFP+ modules are not included.

  • Best for: fiber and multi-gigabit internet connections at small and mid-size sites that want a UniFi gateway with a small built-in switch.
  • System fit: UniFi independent gateway managed with a CloudKey, Official UniFi Hosting or UniFi OS Server.
  • Important to know: it needs an external UniFi Network host to manage it; only one of the 2.5 GbE ports provides PoE+ (30 W).

Why teams choose it

Built for reliable networks

  • 10G WAN choices

    one 10G SFP+ and one 10 GbE RJ45 WAN port.

  • Inspected throughput

    5 Gbps routing with IDS/IPS.

  • Built-in switch

    four 2.5 GbE RJ45 ports plus a 10G SFP+ LAN port.

  • PoE+ output

    one of the four 2.5 GbE switch ports supplies PoE+, with a 30 W PoE budget.

Specifications

Technical specifications

General
Brand Ubiquiti
Model UXG-Fiber
Device Type Independent gateway with integrated switch
Form Factor Compact desktop
Button Factory reset
Interfaces
Ports 2x SFP+, 1x 10G RJ45, 4x 2.5G
WAN Ports 1x 10G SFP+, 1x 10 GbE RJ45
LAN Ports 1x 10G SFP+, 4x 2.5 GbE RJ45
PoE Output 1x PoE+ port
Management Interface Ethernet, Bluetooth
Performance
IDS/IPS Throughput 5 Gbps
MAC Address Table Size 4,000
CPU Quad-core ARM Cortex-A73 at 2.2 GHz
RAM 2 GB
Power
Power Method DC jack, 54 V DC, 1.1 A
Power Supply 54 V DC, 1.1 A adapter included
Supported Voltage Range 100 to 240 V AC
PoE Budget 30 W
PoE Standard PoE+
PoE Voltage Range 50 to 57 V
Max Power Consumption 25 W, excluding PoE output
Physical
Dimensions 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2 in)
Weight 605 g (1.3 lb)
Enclosure Polycarbonate
ESD/EMP Protection Air ±8 kV, contact ±4 kV
Environmental
Operating Temperature 0 to 40 °C (32 to 104 °F)
Operating Humidity 5 to 95% noncondensing
Software and Management
Management CloudKey, Official UniFi Hosting or UniFi OS Server
Firewall Zone-based, application-aware Layer 7
IDS/IPS Signatures 55,000+ with CyberSecure
Multi-WAN Load balancing
Dynamic Routing OSPF
VPN Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport
SD-WAN License-free
Listings and Approvals
Certifications CE, FCC, IC
