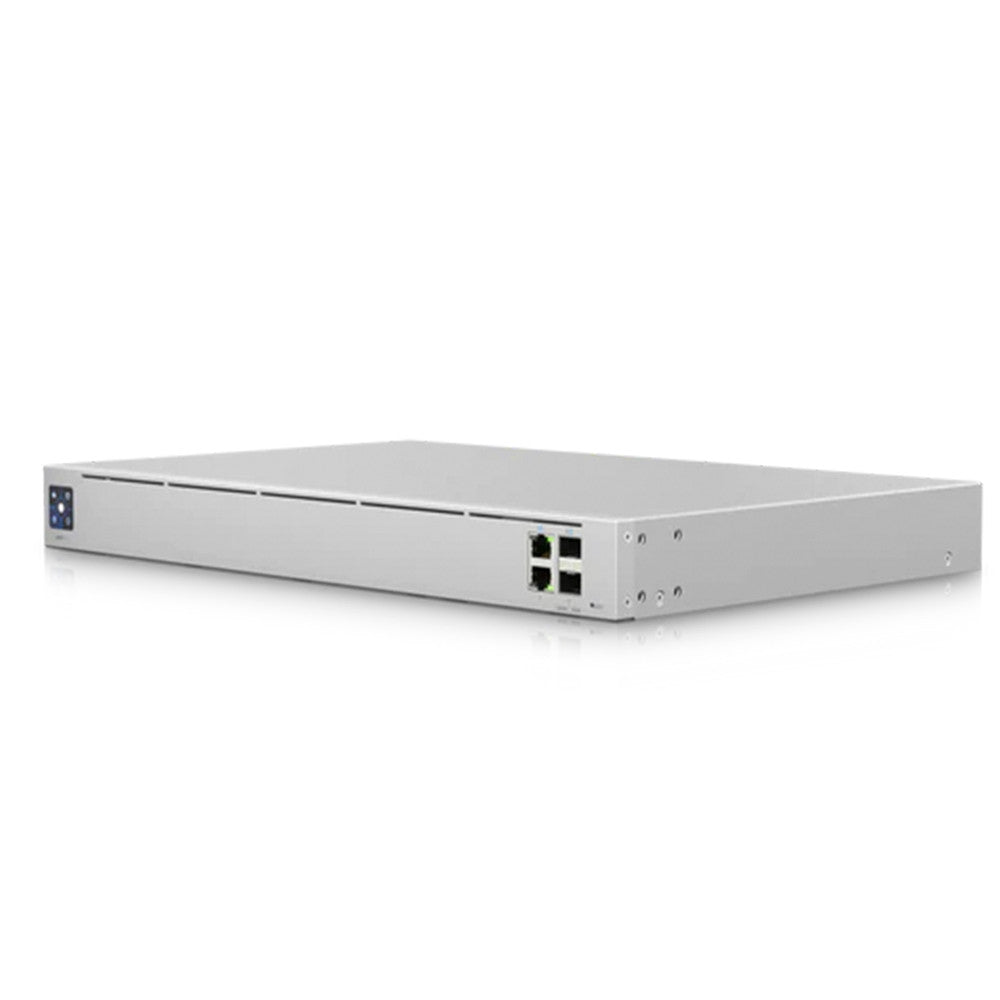

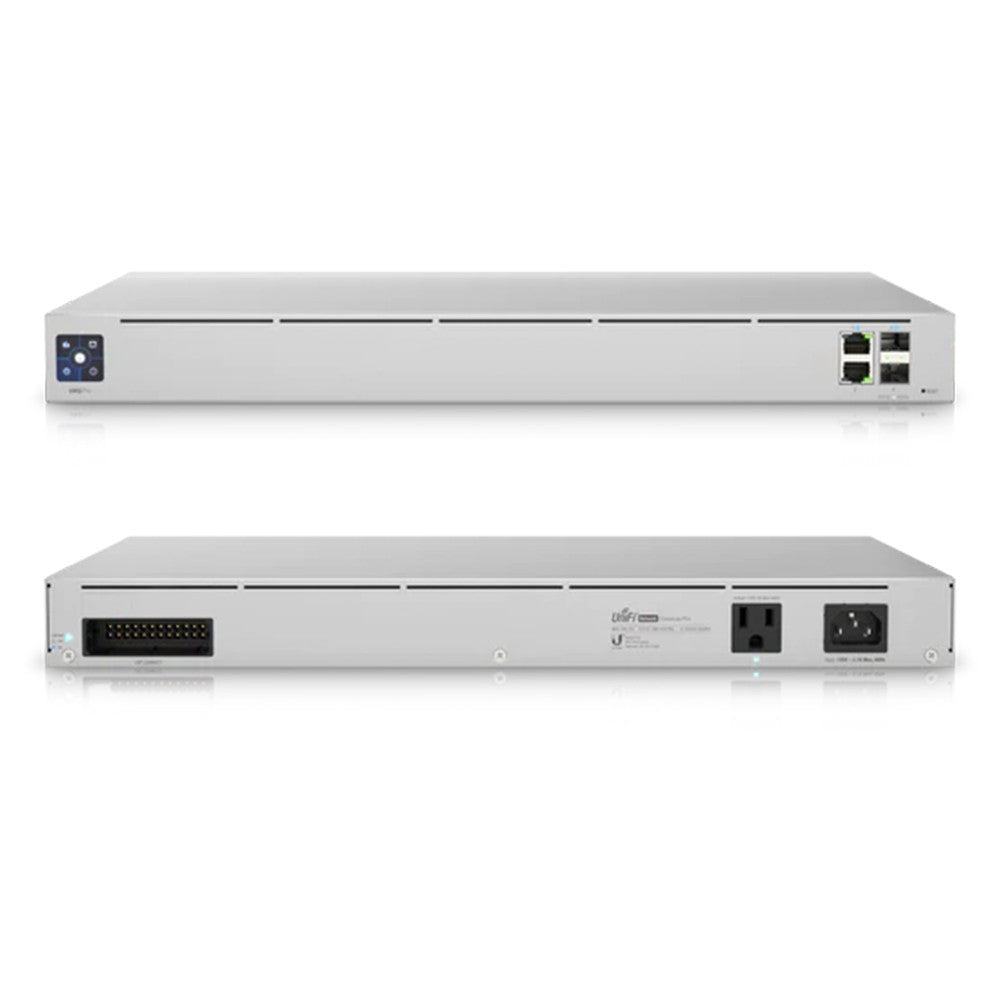

Ubiquiti UXG-Pro-US Dual-WAN Security Gateway 10G SFP+ DPI IPS
- EhubAmerica SKU
- UXG-Pro-US
- 1U rack-mountable
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• 1.7 GHz quad-core processor
• (2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
• (2) LAN ports (GbE RJ45 and 10G SFP+)
• Enterprise-class DPI, IPS/IDS, and layered firewall configuration
• Power redundancy when connected to the USP RPS or USP RPS Pro (sold separately)
• SmartPower outlet (125VAC/2A) for an external modem
• 1U-sized, rack-mountable device
• Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
• Weight 3.42 kg (7.54 lb)
• Enclosure materials Front panel: aluminum CNC
• Top cover/base: SGCC steel
• Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
• Memory information 2 GB DDR4
• Management interface Ethernet
• Networking interface LAN: (1) 1 GbE RJ45 port
• (1) 10G SFP+ port
• WAN: (1) 1 GbE RJ45 port
• LCM display (1) 1.3" touchscreen
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: UXG-Pro-US
• Product Type: Routers and Switches
• 1.7 GHz quad-core processor
• (2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
• (2) LAN ports (GbE RJ45 and 10G SFP+)
• Enterprise-class DPI, IPS/IDS, and layered firewall configuration
• Power redundancy when connected to the USP RPS or USP RPS Pro (sold separately)
• SmartPower outlet (125VAC/2A) for an external modem
• 1U-sized, rack-mountable device
• Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
• Weight 3.42 kg (7.54 lb)
• Enclosure materials Front panel: aluminum CNC
• Top cover/base: SGCC steel
• Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
• Memory information 2 GB DDR4
• Management interface Ethernet
• Networking interface LAN: (1) 1 GbE RJ45 port
• (1) 10G SFP+ port
• WAN: (1) 1 GbE RJ45 port
• LCM display (1) 1.3" touchscreen
• Bootup animation: bootup in progress
• Firmware upgrade icon: firmware upgrading
• Power supply AC/DC, internal, 50W
• Max. power consumption 30W
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | UXG-Pro-US |
| Product Name | UniFi Next-Generation Gateway Pro (US Version) |
| Type | Dual-WAN Security Gateway |
| Processor | Quad-core ARM Cortex-A57 at 1.7 GHz |
| Memory | 2 GB DDR4 |
| Physical | |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
| Weight | 3.42 kg (7.54 lb) |
| Form Factor | 1U rack-mountable |
| Enclosure Materials | Front panel aluminum CNC; top cover/base SGCC steel |
| Display | 1.3" touchscreen LCM |
| Power & Electrical | |
| Power Supply | AC/DC, internal, 50W |
| Max. Power Consumption | 30W |
| SmartPower Outlet | 125VAC/2A for external modem |
| Power Redundancy | Compatible with USP RPS or USP RPS Pro (sold separately) |
| Networking & Connectivity | |
| WAN Ports | (1) 1 GbE RJ45 port and (1) 10G SFP+ port with failover support |
| LAN Ports | (1) 1 GbE RJ45 port and (1) 10G SFP+ port |
| Management Interface | Ethernet |
| Security Features | Deep Packet Inspection (DPI), Intrusion Detection and Prevention Systems (IDS/IPS), layered firewall configuration |
| Management Application | UniFi Network (Version 5.14.11 and later) |
