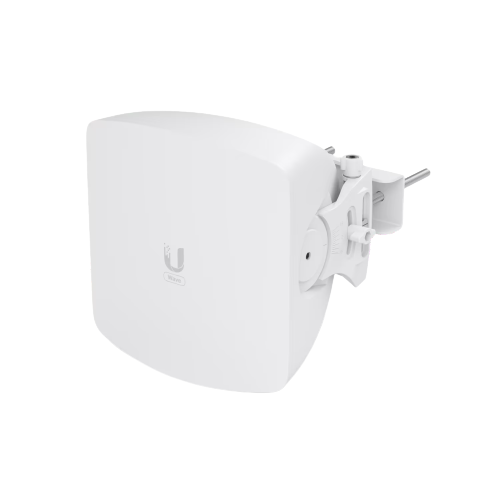

Ubiquiti WAVE-AP-US 60GHz 5.4Gbps PtMP Access Point
- EhubAmerica SKU
- WAVE-AP-US
- (1) 2.5 GbE RJ45 port (100/1000/2500); (1) 10G SFP+ port (1/10)
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti Wave 60 GHz PtMP access point with 5.4 Gbps total throughput, support for 15 clients, 2.5 GbE and 10G SFP+ connectivity, GPS, and 802.11ax WiFi 6 backup RF.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• PtMP access point operating mode
• Supports up to 15 clients
• 5.4 Gbps total throughput (2.7 Gbps duplex)
• 57–71 GHz operating frequency, dependent on regulatory region
• 24 dBi 60 GHz antenna gain
• 30° azimuth beamwidth
• Up to 8 km range when connecting to a Wave Long-Range
• Up to 5 km range when connecting to a Wave Nano
• 802.11ax WiFi 6 backup RF
• 12 dBi backup RF antenna gain
• (1) 2.5 GbE RJ45 port
• (1) 10G SFP+ port
• Integrated GPS
• WPA2-PSK (AES) encryption
• Wave technology
• Bluetooth management for setup through the UISP Mobile app
• IPX6 weatherproofing
• 48V DC, 0.65A, 2.5 GbE PoE adapter included
TECHNICAL SPECIFICATIONS
• Model: Wave-AP
• Operating Mode: PtMP Access Point

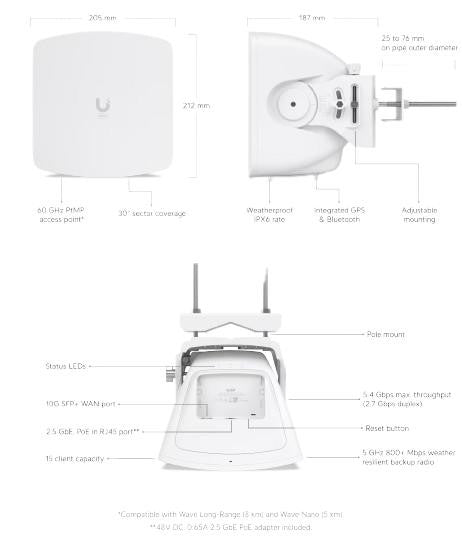

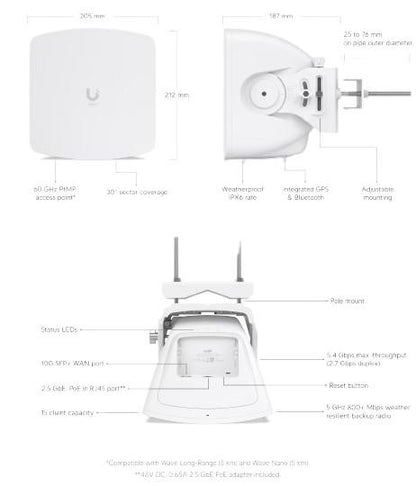

• Dimensions: 212 x 205 x 187 mm (8.3 x 8.1 x 7.4")
• Weight: 2.3 kg (5.07 lb)
• Enclosure Materials: Aluminum alloy, UV-stabilized polycarbonate

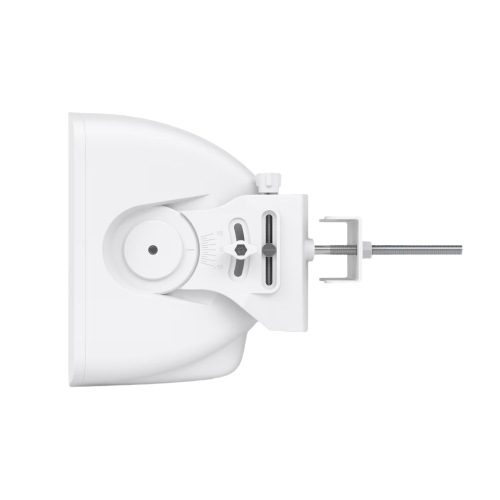

• Pole Mount Diameter: 25–76 mm (1–3") pipe outer diameter
• Wind Loading: 98 N at 200 km/h (22 lbf at 125 mph)
• Weatherproofing: IPX6
• Processor: Quad ARM Cortex-A53 cores at 1.4 GHz
• Memory: 512 MB DDR3L
• Network Interface: (1) 2.5 GbE RJ45 port (100/1000/2500); active only when SFP+ port is down
• SFP+ Interface: (1) 10G SFP+ port (1/10)
• Maximum Power Consumption: 24W
• Power Method: 48V DC passive PoE 4-pair or 2-pair; 24V DC passive PoE 4-pair
• Power Supply: 48V DC, 0.65A, 2.5 GbE PoE adapter included
• GPS: Yes
• Operating Temperature: -40 to 60°C (-40 to 140°F)
• Operating Humidity: 5–95% noncondensing
• Certifications: FCC, IC, CE
• OS: airOS
• Network Mode: Bridge
• Services: UISP, ping watchdog, NTP client, SNMP
• Management: Bluetooth through UISP Mobile app and Web UI
• Total Throughput: 5.4 Gbps (2.7 Gbps duplex)
• Supported Client Count: 15
• Encryption: WPA2-PSK (AES)
• 60 GHz Operating Frequency: 57–71 GHz, dependent on regulatory region
• 60 GHz Channel Bandwidth: 2160, 1080 MHz
• 60 GHz Modulation: 16QAM, QPSK
• 60 GHz Antenna Gain: 24 dBi
• 60 GHz Polarization: Vertically linear
• 60 GHz Beamwidth: 30° azimuth; 3° elevation at 3 dB; 4° elevation at 6 dB
• Backup RF Standard: 802.11ax (WiFi 6)
• Backup RF US/CA Frequencies: U-NII-1 5150–5250 MHz; U-NII-2A 5250–5350 MHz; U-NII-2C 5470–5725 MHz; U-NII-3 5725–5850 MHz
• Backup RF Channel Bandwidth: 20, 40, 80 MHz
• Backup RF Antenna Gain: 12 dBi
• Backup RF Cross-Pol Isolation: 10 dB
Specifications
Technical specifications
| Ubiquiti WAVE-AP 60GHz (US Version) | |
|---|---|
| General | |
| Model | WAVE-AP-US |
| Product Type | 60 GHz PtMP access point with integrated WiFi router and GPON CPE |
| Operating Mode | PtMP access point |
| Physical | |
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") |
| Weight | 2.3 kg (5.07 lb) |
| Enclosure Materials | Aluminum alloy, UV stabilized polycarbonate |
| Pole Mount Diameter | 25 to 76 mm (1 to 3") on pipe outer diameter |
| Wind Loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Power & Electrical | |
| Power Supply | 48V DC, 0.65A PoE adapter (included) |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only |
| Supported Voltage Range | 44–54V DC; 22–27V DC |
| Max. Power Consumption | 24W |
| Wireless / RF | |
| 60 GHz Radio (Main) | 5.4 Gbps max. throughput (2.7 Gbps duplex) |
| 5 GHz Backup Radio | 800+ Mbps weather-resilient |
| 60 GHz Coverage | 30° sector coverage |
| Total Throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Supported Clients | 15 |
| Max. Range (Wave Pro) | Up to 8 km |
| Max. Range (Wave Long-Range) | Up to 8 km |
| Max. Range (Wave Nano) | Up to 5 km |
| Networking & Connectivity | |
| Ethernet Ports | (1) 2.5 GbE RJ45 port (100/1000/2500); (1) 10G SFP+ port (1/10) |
| 2.5 GbE Port Activity | Active only when SFP+ port is down |
| GPS | Yes |
| Bluetooth | Yes |
| Environmental | |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| International Version | WAVE-AP |
