Ubiquiti · Point-to-Multipoint

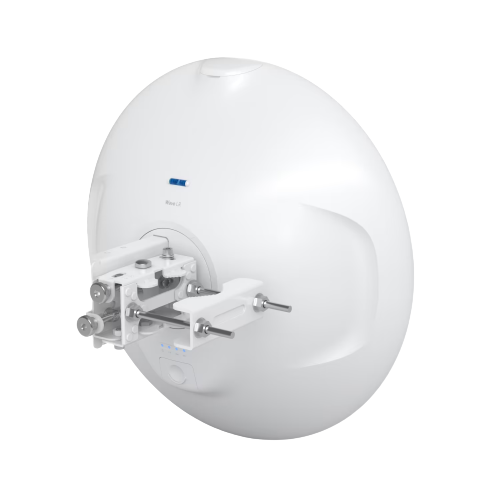

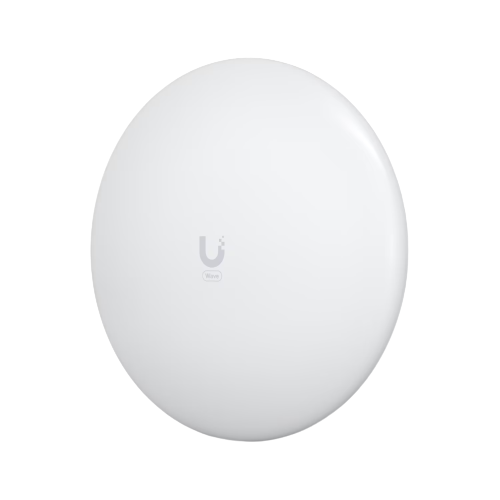

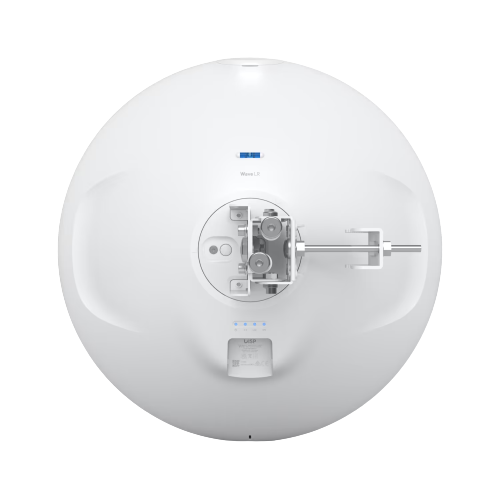

Ubiquiti WAVE-LR-US 60GHz 8km PtMP Station 2Gbps 5GHz Backup
- EhubAmerica SKU
- WAVE-LR-US
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti Wave long-range PtMP station with integrated 60 GHz radio, up to 8 km maximum range, 2 Gbps total throughput, and 802.11ax WiFi 6 backup RF.
PRODUCT TYPE
Point-to-Multipoint
KEY FEATURES
• PtMP station operating mode
• Integrated 60 GHz radio with Wave technology
• 2 Gbps total throughput (1 Gbps duplex)
• Maximum range: 8 km
• 57–71 GHz operating frequency, dependent on regulatory region
• 46 dBi 60 GHz antenna gain
• 802.11ax (WiFi 6) backup RF
• 22 dBi backup RF antenna gain
• Integrated GPS
• WPA2-PSK (AES) encryption
• Bluetooth management for setup through the UISP app
• Bridge/Router network modes
• IPX6 weatherproofing
• 48VDC, 0.65A gigabit PoE adapter included
TECHNICAL SPECIFICATIONS
• Dimensions: Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
• Weight without mount: 2.59 kg (5.7 lb)
• Weight with mount: 3.79 kg (8.4 lb)
• Enclosure Material: UV-stabilized plastic
• Mount Material: Galvanized steel
• Pole Mount Diameter: 25–76.2 mm (1–3") pipe outer diameter
• Wind Loading: 286 N at 200 km/h (64.3 lbf at 125 mph)
• Weatherproofing: IPX6
• Processor: Dual ARM Cortex-A53 cores at 1 GHz
• Memory: 512 MB DDR3L
• Network Interface: (1) GbE RJ45 port
• Maximum Power Consumption: 18W
• Power: 48VDC passive PoE 4-pair or 2-pair; 24VDC passive PoE 4-pair
• Power Supply: 48VDC, 0.65A gigabit PoE adapter included
• Operating Temperature: -40 to 60°C (-40 to 140°F)
• Operating Humidity: 5–95% noncondensing
• Certifications: FCC, IC, CE
• OS: airOS
• Services: UISP, ping watchdog, NTP client, SNMP
• Tools: Antenna alignment, discovery utility, ping, trace route, speed test
• 60 GHz Channel Bandwidth: 2160, 1080 MHz
• 60 GHz Modulation: 16QAM, QPSK
• 60 GHz Antenna Gain: 46 dBi
• 60 GHz Beamwidth: 0.8° at 3 dB; 1.1° at 6 dB
• Backup RF Standard: 802.11ax (WiFi 6)
• Backup RF US/CA Frequencies: U-NII-1 5150–5250 MHz; U-NII-3 5725–5850 MHz
• Backup RF Channel Bandwidth: 20, 40, 80 MHz
• Backup RF Antenna Gain: 22 dBi
• Backup RF Polarization: Dual-linear
• Backup RF Cross-Pol Isolation: 20 dB
• Backup RF Beamwidth: 8–10° at 3 dB
• Total Throughput: 2 Gbps (1 Gbps duplex)
• Maximum Range: 8 km
• Encryption: WPA2-PSK (AES)
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | WAVE-LR-US |
| Product Type | 60 GHz PtMP Station with 5 GHz Backup Radio |
| Operating Mode | PtMP station, PtP (FW version 3.2.0 and later) |
| Max. Range | 8+ km |
| Total Throughput | 2 Gbps |
| Physical | |
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
| Weight (without mount) | 2.6 kg (5.7 lb) |
| Weight (with mount) | 3.8 kg (8.4 lb) |
| Enclosure Material | UV stabilized plastic |
| Mount Material | Stainless steel |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3") on pipe outer diameter |
| Wind Loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Power & Electrical | |
| Max. Power Consumption | 20W |
| Power Supply Included | 48V DC, 0.65A Gigabit PoE adapter |
| Supported Voltage Range | 44–54V DC, 22–27V DC |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only |
| Processor | Dual-core ARM Cortex-A53 at 1 GHz |
| Memory | DDR3L 512 MB |
| Wireless / RF | |
| Primary Frequency | 57–71 GHz (depends on regulatory region) |
| Channel Bandwidth | 2160, 1080, 540 MHz (540 MHz available FW version 3.3.0 and later) |
| Backup Radio | 5 GHz 800+ Mbps weather resilient |
| Encryption | WPA2-PSK (AES) |
| GPS | Yes |
| Bluetooth | Integrated |
| Networking & Connectivity | |
| Network Interface | (1) GbE RJ45 port |
| Network Mode | Bridge/Router (Router available in PtMP station mode only) |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Environmental | |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| UISP Version Requirement | Version 1 |
