Ubiquiti · Wireless Access Points

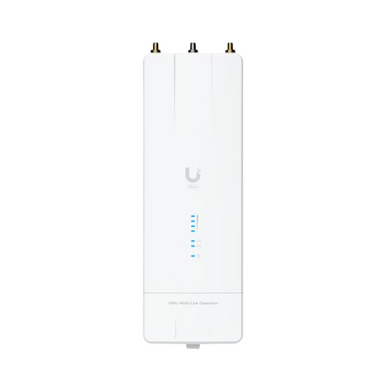

Ubiquiti Wave-MLO5-US Dual 5GHz WiFi 7 Access Point 10G SFP+ MLO
- EhubAmerica SKU
- Wave-MLO5-US
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only
$463.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
- Status LED
- 5 GHz, 100+ km link range
- RP-SMA antenna connectors
- GPS antenna connectors
- Integrated Bluetooth
- Pole mount compatibility
- 10G SFP+ port
- 10 GbE RJ45 port
- Reset button
- Technical Specificiations
- Mechanical:
- Dimensions: 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9')
- Weight: 575 g (1.3 lb)
- Enclosure material: Aluminum alloy, UV-resistant polycarbonate
- Mount material Strap: stainless metal
- Universal bracket: UV-resistant polycarbonate
- Pole mount diameter: 25.4 to 50.8 mm (1 to 2') on pipe outer diameter
- Weatherproofing: IPX6
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: Wave-MLO5-US
- Product Type: Wireless Access Points
- Status LED
- 5 GHz, 100+ km link range
- RP-SMA antenna connectors
- GPS antenna connectors
- Integrated Bluetooth
- Pole mount compatibility
- 10G SFP+ port
- 10 GbE RJ45 port
- Reset button
- Mechanical: Dimensions: 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9')
- Weight: 575 g (1.3 lb)
- Enclosure material: Aluminum alloy, UV-resistant polycarbonate Mount material Strap: stainless metal
- Universal bracket: UV-resistant polycarbonate
- Pole mount diameter: 25.4 to 50.8 mm (1 to 2') on pipe outer diameter
- Weatherproofing: IPX6
- Hardware: Processor Quad-core: IPQ5322 at 1.5 GHz
- Memory: DDR4 1 GB
- Networking interface: (1) 10 GbE RJ45 port
- (1) 10G SFP+ port
- RF connectors: (2) RP-SMA (Waterproof)
- (1) GPS (Waterproof)
- Max. power consumption: 20W
- Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
- Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
- Power supply: 54V DC, 0.56A, 10 GbE PoE adapter (Included)
- Supported voltage range: 44–54V DC
- 22–27V DC
- Max. TX power 5 GHz: 24 dBm
- MIMO 5 GHz: (2) 2 x 2
INTENDED USE / APPLICATIONS
- Outdoor or indoor wireless networking, as specified
- Point-to-point or point-to-multipoint deployments where compatible
- Professional network installations
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | Wave-MLO5-US |
| SKU | Wave-MLO5-US |
| Technology | WiFi 7, Multi-Link Operation (MLO), Dual 5 GHz |
| Physical | |
| Dimensions | 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9") |
| Weight | 575 g (1.3 lb) |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material (Strap) | Stainless metal |
| Mount Material (Universal Bracket) | UV-resistant polycarbonate |
| Pole Mount Diameter | 25.4 to 50.8 mm (1 to 2") on pipe outer diameter |
| Weatherproofing | IPX6 |
| Power & Electrical | |
| Max. Power Consumption | 20W |
| Power Supply Included | 54V DC, 0.56A, 10 GbE PoE adapter |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only |
| Supported Voltage Range | 44–54V DC; 22–27V DC |
| Max. TX Power (5 GHz) | 24 dBm |
| Wireless / RF | |
| Operating Frequency | 5180–5320, 5500–5700, 5745–5825 MHz |
| Channel Bandwidth (Radio 1) | 20, 40, 80, 160 MHz |
| Channel Bandwidth (Radio 2) | 20, 40, 80, 160, 240 MHz |
| MIMO (5 GHz) | (2) 2 x 2 |
| RF Connectors | (2) RP-SMA (Waterproof); (1) GPS (Waterproof) |
| Max. Range | 100 km |
| Total Throughput | 5+ Gbps |
| Networking & Connectivity | |
| Operating Mode | PtP, Bridge mode |
| Encryption | WPA3-PSK (AES) |
| Services | UISP, ping watchdog, NTP client |
| Tools | Alignment, speed test, ping, traceroute, discovery, site survey |
| Environmental | |
| Ambient Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondens |
