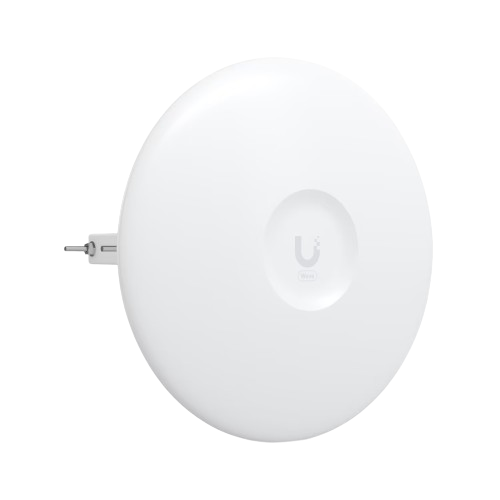

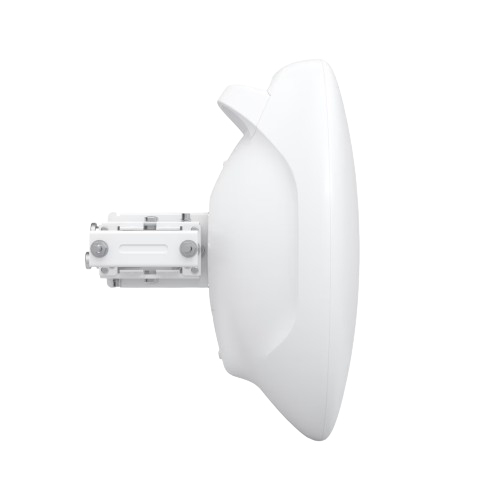

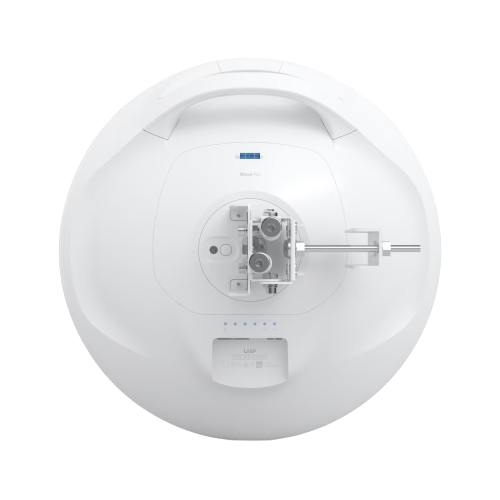

Ubiquiti WAVE-PRO-US 60GHz PtP Radio 5.4Gbps 15km Bridge
- EhubAmerica SKU
- WAVE-PRO-US
- (2) 2.5 GbE RJ45 ports, (1) 10G SFP+ port
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only
$683.99
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
- Compatibility and supported distances: PtP: Up to 15 km
- PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
- 60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput
- 5 GHz 800+ Mbps weather-resistant backup radio
- (2) 2.5 GbE and (1) 10G SFP+ ports
- Ergonomic transportation handle
- Precision alignment mount
- Integrated GPS & Bluetooth
- Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
- Without mount: 2.8 kg (6.2 lb)
- With mount: 4 kg (8.8 lb)
- International version WAVE-PRO
- Mechanical Enclosure materials: Aluminum alloy, UV stabilized plastic
- Mount material: Stainless steel
- Pole mount diameter: 25 to 76.2 mm (1 to 3") on pipe outer diameter
- Wind loading: 369 N at 200 km/h (83 lbf at 125 mph)
- Weatherproofing: IPX6
- Hardware Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: WAVE-PRO-US
- Product Type: Networking Accessories
- Compatibility and supported distances: PtP: Up to 15 km
- PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
- 60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput
- 5 GHz 800+ Mbps weather-resistant backup radio
- (2) 2.5 GbE and (1) 10G SFP+ ports
- Ergonomic transportation handle
- Precision alignment mount
- Integrated GPS & Bluetooth
- Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
- Without mount: 2.8 kg (6.2 lb)
- With mount: 4 kg (8.8 lb)
- International version WAVE-PRO
- Mechanical Enclosure materials: Aluminum alloy, UV stabilized plastic
- Mount material: Stainless steel
- Pole mount diameter: 25 to 76.2 mm (1 to 3") on pipe outer diameter
- Wind loading: 369 N at 200 km/h (83 lbf at 125 mph)
- Weatherproofing: IPX6
- Hardware Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
- Memory: DDR3L 512 MB
- Networking interface: (2) 2.5 GbE RJ45 ports
- (1) 10G SFP+ port
- Max. power consumption: 26W
- Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
- Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
- Power supply: 48V DC, 0.65A, 2.5 GbE PoE adapter (included)
- Supported voltage range: 44–54V DC
- 22–27V DC
- GPS: Yes
- Button: Factory reset
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| SKU | Wave-PRO-US |
| Brand | Ubiquiti |
| Product Name | UISP Wave Pro (US Version) |
| Operating Modes | PtP, PtMP station |
| Physical | |
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
| Weight (without mount) | 2.8 kg (6.2 lb) |
| Weight (with mount) | 4 kg (8.8 lb) |
| Enclosure Materials | Aluminum alloy, UV stabilized plastic |
| Mount Material | Stainless steel |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3") on pipe outer diameter |
| Wind Loading | 369 N at 200 km/h (83 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Power & Electrical | |
| Power Consumption (Max) | 26W |
| Power Supply (Included) | 48V DC, 0.65A, 2.5 GbE PoE adapter |
| Supported Voltage Range | 44–54V DC, 22–27V DC |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-) for 44–54V DC only |
| Wireless / RF | |
| Primary Radio | 60 GHz |
| Operating Frequency | 57 to 71 GHz |
| Channel Bandwidth | 2160, 1080 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040 |
| Backup Radio | 5 GHz 800+ Mbps weather-resistant |
| Encryption | WPA2-PSK (AES) |
| Networking & Connectivity | |
| Ports | (2) 2.5 GbE RJ45 ports, (1) 10G SFP+ port |
| Maximum Throughput | 5.4 Gbps (2.7 Gbps duplex) |
| PtP Maximum Range | Up to 15 km |
| PtMP Maximum Range | Up to 8 km (Wave AP), up to 6 km (Wave AP Micro) |
| GPS | Yes |
| Bluetooth | Yes |
| Environmental | |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| International Version | WAVE-PRO |
