V-Sol · Routers and Switches

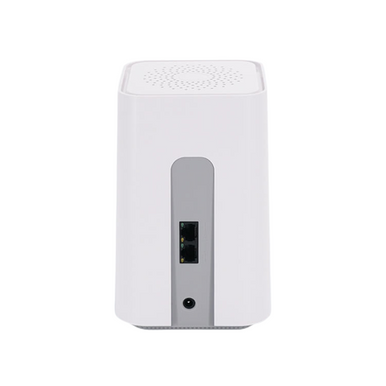

V-SOL HG3610ACM Dual-Band WiFi 5 EasyMesh Router, 1.2 Gbps, 1x GE and 1x FE

Part number / SKU
HG3610ACM
  • WiFi 5, 802.11b/g/n/ac
  • 2.4 GHz and 5 GHz
  • 1.2 Gbps combined
  • 1x GE, 1x FE RJ45
  • 2x2 per band

$54.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The V-SOL HG3610ACM is a dual-band WiFi 5 (802.11ac) router for small office and home (SOHO) networks. It supports the EasyMesh protocol, so two or more units can link over wired or wireless mesh connections, and its WPS button pairs two EasyMesh routers quickly.

V-SOL rates the concurrent dual-band radio at a combined 1.2 Gbps, about 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, with 2x2 MIMO on each band and four external 5 dBi antennas. Transmit power is 22 dBm for 802.11n and 24 dBm for 802.11ac. Wired connections are one 10/100/1000 Mbps and one 10/100 Mbps RJ45 port, both auto-adaptive WAN/LAN. The router runs from an external adapter rated 12 V DC, 1 A, draws 10 W or less, and is rated for 0 to 55 °C.

Software features include bridge, router and mixed modes, PPPoE, DHCP client and static IP connections, an IPv4/IPv6 stack, IGMP and MLD snooping/proxy, 802.1p QoS with four priority queues, and multiple SSIDs, all managed through a web interface.

  • Best for: small office and home (SOHO) WiFi where a mesh of routers covers more area.
  • System fit: EasyMesh protocol for wired or wireless mesh between routers; web management.
  • Important to know: one port is Gigabit and the other is 10/100 Mbps; WiFi security options are WEP, WPA-PSK and WPA2-PSK.

Why teams choose it

Built for reliable networks

  • Dual-band WiFi 5

    combined 1.2 Gbps, about 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.

  • EasyMesh support

    wired or wireless mesh links, with a WPS button to pair two EasyMesh routers.

  • Four external antennas

    4x 5 dBi with 2x2 MIMO on each band and up to 24 dBm transmit power.

  • Low power draw

    10 W or less from an adapter rated 12 V DC, 1 A.

Specifications

Technical specifications

General
Brand V-SOL
Model HG3610ACM
Device Type Dual-band WiFi 5 mesh router
Form Factor Desktop
Weight 560 g
Interfaces
Ethernet Ports 1x GE, 1x FE RJ45
Port Function Auto-adaptive WAN/LAN
Auto MDIX Yes
WPS Button Yes, pairs EasyMesh routers
Indicators 3 LEDs: SYS, LAN1, LAN2
Wireless
Wireless Standard WiFi 5, 802.11b/g/n/ac
Frequency Band 2.4 GHz and 5 GHz
2.4 GHz Frequency Range 2.400 to 2.483 GHz
5 GHz Frequency Range 5.150 to 5.825 GHz
Data Rate 1.2 Gbps combined
Data Rate Condition 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
MIMO Configuration 2x2 per band
Antenna Type External, 4x 5 dBi
Max Tx Power 22 dBm (11n); 24 dBm (11ac)
Modulation DSSS, CCK, OFDM
Encoding BPSK, QPSK, 16QAM, 64QAM
Wireless Security WEP, WPA-PSK (TKIP), WPA2-PSK (AES)
Wireless Modes AP mode, multiple SSID, EasyMesh
Performance
Switching Full speed non-blocking
MAC Address Table 2K
QoS IEEE 802.1p, 4 priority queues
Power
Power Method 12 V DC adapter
Power Adapter 12 V DC, 1 A, external AC-DC
Max Power Consumption 10 W or less
Environmental
Operating Temperature 0 to 55 °C
Operating Humidity 10 to 90% noncondensing
Storage Temperature -30 to 60 °C
Software and Management
Management Web
Operating Modes Bridge, router, bridge/router mixed
WAN Connection Types PPPoE, DHCP client, static IP
IP Stack IPv4/IPv6
Multicast IGMP v1/v2/v3 and MLD v1/v2 snooping/proxy
Port Features Port monitoring, mirroring, rate limiting, port SLA
