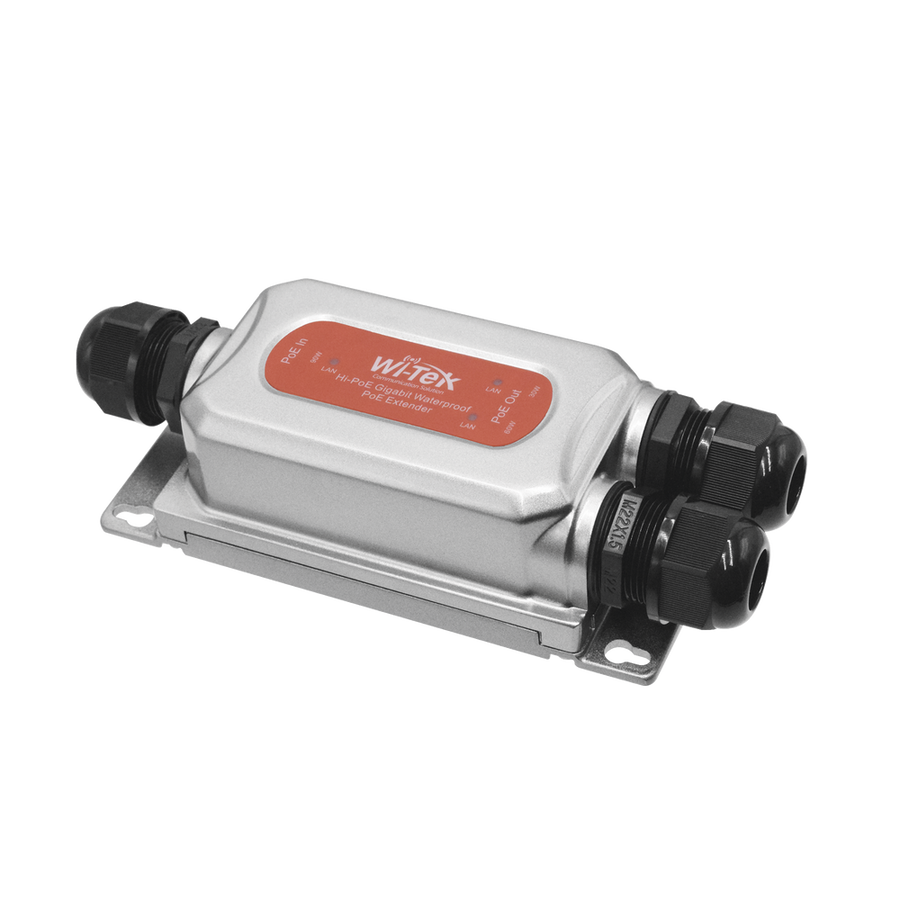

Wi-Tek WIPOE22EO IP68 PoE Extender 802.3af/at/bt 90W Input 3-Port
- EhubAmerica SKU
- WIPOE22EO
$115.10
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
IP68 Weatherproof Rating for Extreme Outdoor Environments
PRODUCT TYPE
Power Supplies & UPS
KEY FEATURES
- IP68 Weatherproof Rating for Extreme Outdoor Environments
- Three Gigabit Ethernet Ports With 10/100/1000 Mbps Speeds
- Compact Design Measuring 5.9 x 2.9 x 1.7 Inches
- Supports 802.3af/at/bt PoE Standards for Maximum Compatibility
- CE, FCC, and RoHS Certified for Quality and Safety
- Ideal for CCTV and Harsh Outdoor Surveillance Applications
TECHNICAL SPECIFICATIONS
- Brand: Wi-Tek
- Model: WIPOE22EO
- Product Type: Networking Accessories
- IP68 Weatherproof Rating for Extreme Outdoor Environments
- Three Gigabit Ethernet Ports With 10/100/1000 Mbps Speeds
- Compact Design Measuring 5.9 x 2.9 x 1.7 Inches
- Supports 802.3af/at/bt PoE Standards for Maximum Compatibility
- CE, FCC, and RoHS Certified for Quality and Safety
- Ideal for CCTV and Harsh Outdoor Surveillance Applications
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Wi-Tek |
| Model | WIPOE22EO |
| Product Type | IP68 PoE Extender |
| Physical | |
| Dimensions | 150 x 73 x 44 mm |
| Power & Electrical | |
| Power Input | PoE 802.3af/at/bt, max. 90W |
| PoE Input Pins | 1,2,4,5(+) 3,6,7,8(-) |
| PoE Output Pins | 4,5(+) 7,8(-) or 1,2(+) 3,6(-) |
| PoE Port 1 | 802.3af/at Output, 30W |
| PoE Port 2 | 802.3af/at Output, 60W |
| PoE Port 3 | 802.3af/at/bt Input, 90W |
| Networking & Connectivity | |
| Network Ports | (3) 10/100/1000 Mbps Gigabit Ethernet (RJ45) |
| Environmental | |
| IP Rating | IP68 |
| Operating Temperature | -40 to 80°C |
| Certifications | CE, FCC, RoHS |
