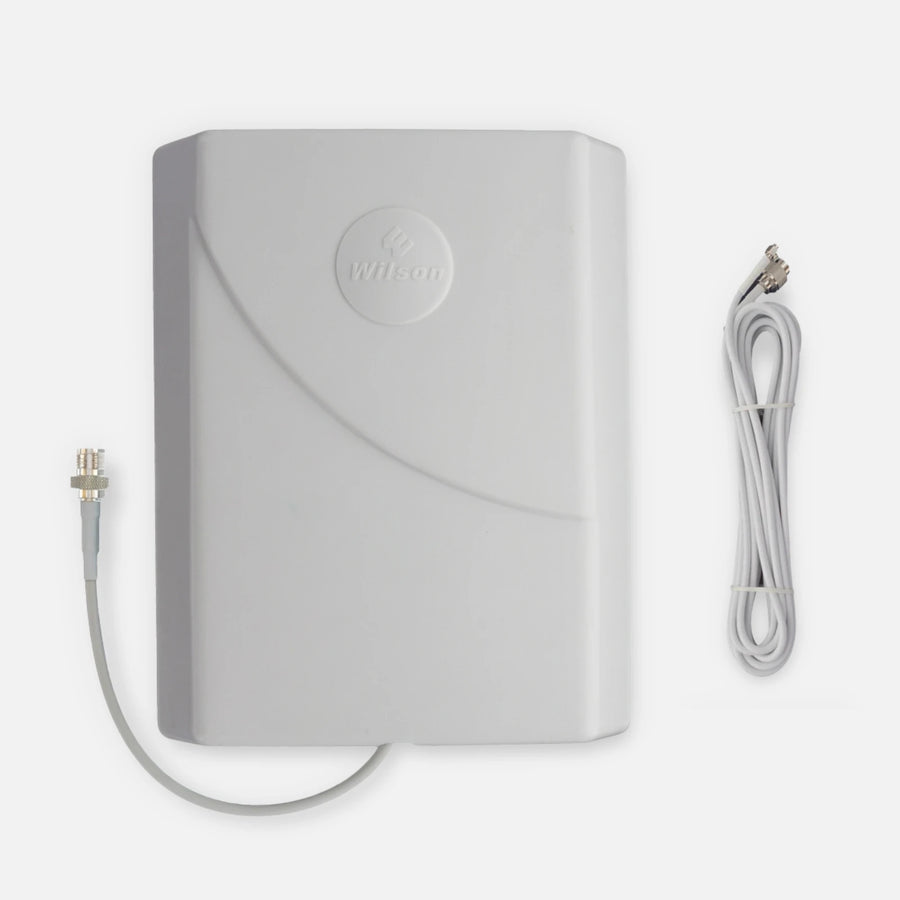

Wilson Electronics 301-135 Dual-Band Panel Antenna 10 dBi N Female

The Wilson weBoost 301-135 is a directional dual-band panel antenna engineered for fixed cellular installations requiring reliable signal improvement across two cellular frequency ranges: 800–960 MHz and 1710–2500 MHz. Its panel form factor and built-in ground plane deliver focused directional gain—7 dBi in the lower band and 10 dBi in the upper band—making it well suited for permanent outdoor or structural mount deployments where a defined coverage sector is needed. Vertical polarization and an N Female connector interface align with standard cellular booster and distributed antenna system installations. Mounting hardware is included, allowing for straightforward integration into professional fixed-site builds.

Key features & benefits

• Dual-Band Cellular Coverage — Operates across 800–960 MHz and 1710–2500 MHz, accommodating a wide range of cellular frequency allocations in a single antenna element.
• Directional Panel Design — Focused radiation pattern concentrates signal toward a defined sector, maximizing link performance between the antenna and a distant cell tower or base station rather than radiating energy omnidirectionally.
• High Gain per Band — Delivers 7 dBi gain in the 800–960 MHz band and 10 dBi in the 1710–2500 MHz band, providing meaningful signal improvement for both transmit and receive paths.
• Controlled Beamwidth — Horizontal and vertical beamwidths of 70°/60° in the lower band and 50°/45° in the upper band give installers precise control over coverage area and interference rejection.
• Vertical Polarization — Vertically polarized radiation pattern matches the standard polarization convention of cellular network infrastructure, minimizing polarization mismatch loss.
• Built-In Ground Plane — Integrated ground plane eliminates the need for an external ground reference, simplifying installation on non-metallic surfaces such as wood, fiberglass, or composite structures.
• N Female Connector Interface — Industry-standard N Female connector ensures compatibility with professional-grade coaxial cabling and cellular booster equipment commonly used in fixed installations.
• Mounting Hardware Included — Complete mounting hardware is supplied in the box, supporting faster deployment without requiring additional hardware sourcing for standard fixed-mount applications.
