Yeastar · Networking Accessories

Yeastar EX30 E1/T1/PRI Expansion Board for S100, S300, P560 and P570

Manufacturer part number
EX30
EhubAmerica SKU
YST-EX30
  • 1x E1/T1/PRI

Works with: Yeastar S100, Yeastar S300, Yeastar P560, Yeastar P570 Confirmed by the manufacturer


$768.55

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

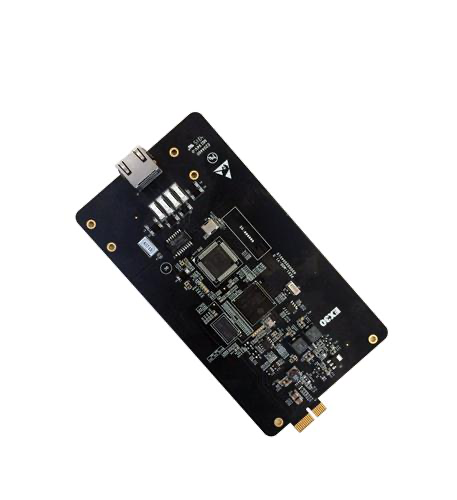

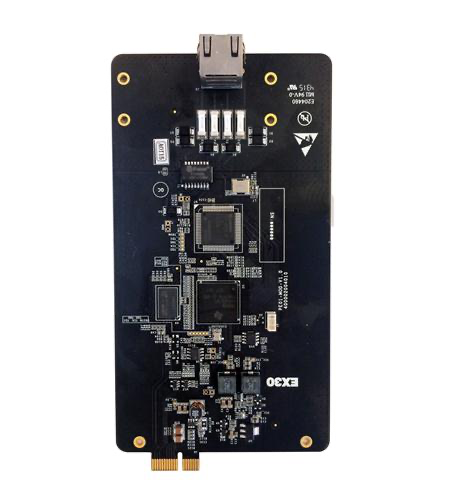

The Yeastar EX30 is an expansion board with one onboard E1/T1/PRI port for Yeastar S-Series and P-Series IP PBX appliances. It connects the phone system to a digital E1 or T1 trunk.

The S100 takes up to two EX08 or EX30 boards, the S300 up to three (two on S300 V4.0), the P560 one and the P570 two.

  • Best for: connecting a Yeastar S100, S300, P560 or P570 to an E1, T1 or PRI digital trunk.
  • System fit: Yeastar S100, S300, P560 and P570.
  • Important to know: the board shares expansion capacity with EX08 boards in the same system.

Why teams choose it

Built for reliable networks

  • Digital trunk

    one onboard E1/T1/PRI port.

  • Scalable

    up to three boards in an S300.

  • Shared expansion positions

    uses the same board positions as the EX08.

  • Wide fit

    supported on S100, S300, P560 and P570.

Specifications

Technical specifications

General
Brand Yeastar
Model EX30
Part Number YST-EX30
Device Type E1/T1/PRI expansion board
Interfaces
Ports 1x E1/T1/PRI
Software and Management
Max per S100 2 EX08 or EX30
Max per S300 3, or 2 on S300 V4.0
Max per P560 1
Max per P570 2
Supported Systems S100, S300, P560, P570
